Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
D dry cell battery alkaline
Video

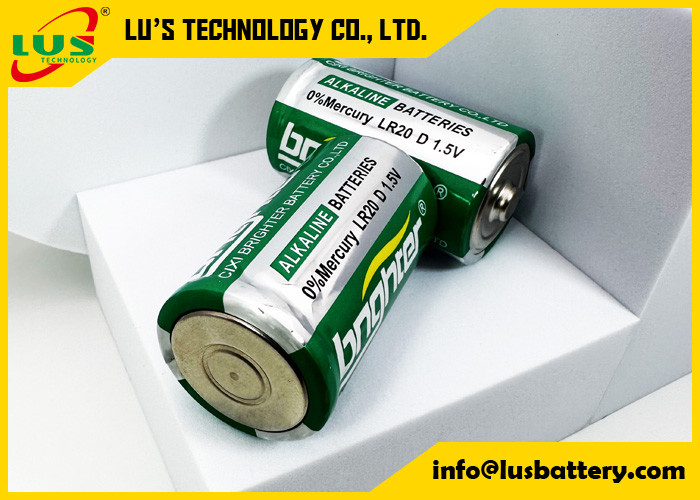

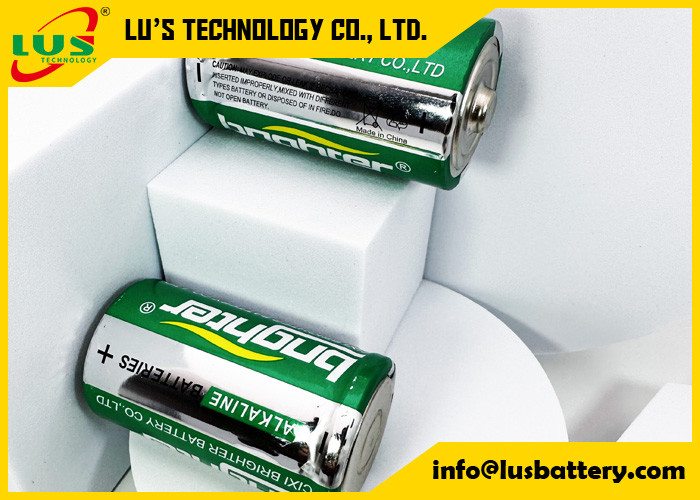

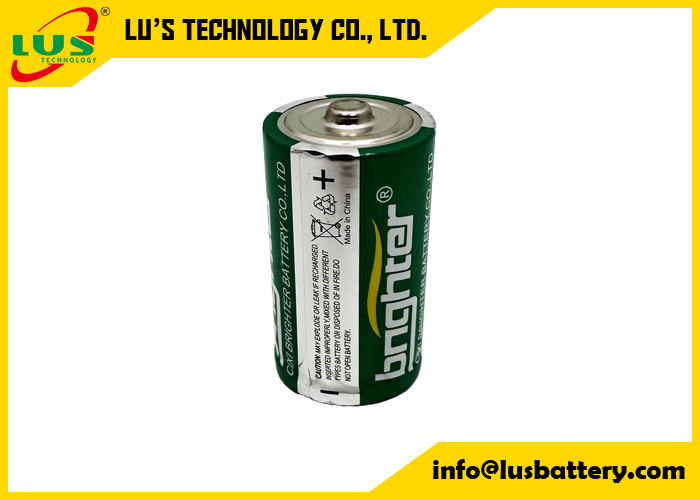

1.5VD Alkaline LR20 Battery 1.5 volt size D Non-Rechargeable Battery LR20 D cell customization factory
D batteries 1.5v This battery replaces MN1300 and LR20 for use in larger devices like radios and flashlights.
D Lr20 Battery Alkaline-Manganese Dioxide Battery 1.5volt LR20 D 1,5V alkaline battery LR20 Alkaline Batteries
LR20 Battery without mercury or cadmium. Long-life with much longer lifespan than conventional batteries.
D size Alkaline LR20 D Primary Batteries 1.5 volt non rechargeble battery
Size D LR20 R20P Super Heavy Duty Bulk 1.5V Alkaline Battery
Type: Alkaline. Voltage: 1.5 V.
Length: 62 mm. Diameter: 33 mm.
Also known as: LR20, MN1300, R20, R20P, LR20, LR20A, AM-1, AM1, HP11, Kodak KD, K4A, LR20N, NEDA 13A, 13AC, 6D, 813, 4020, 3020, D, AM2, E95, 1009, SUM1, BA3030/U battery
Alkaline battery Advantages
1)Lead-free and mercury-free environmentally friendly design, safer to use
2)Long-lasting storage, anti-leakage technology, not easily broken under pressure
3)New strength electrolyte formula, the power exceeds the national standard limit by more than 30%
D battery 1.5v alkaline battery LR20 dry cell battery data sheet:
| Battery type | Dry cell alkaline battery |
| Part number | LR20 |
| Battery size | D |
| Voltage | 1.5 volt |
| Diameter | 32.3~34.2 mm |
| Height | 59.5~61.5mm |
| Weight | 0.141 kg |
| Shelf life | up to 5 years |
Disposable battery 1.5v battery Lr20 disposable battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR20/ D / 1.5v | 2B/card | 12 cards | 48cards | 325*203*243mm | 14.8 kgs | 2S/shrink | 12 pcs | 96 pcs | 297*231*158 mm | 14.2 kgs |
Non rechargeable Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline rechargeable batteries
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
