Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
9v alkaline battery
Video

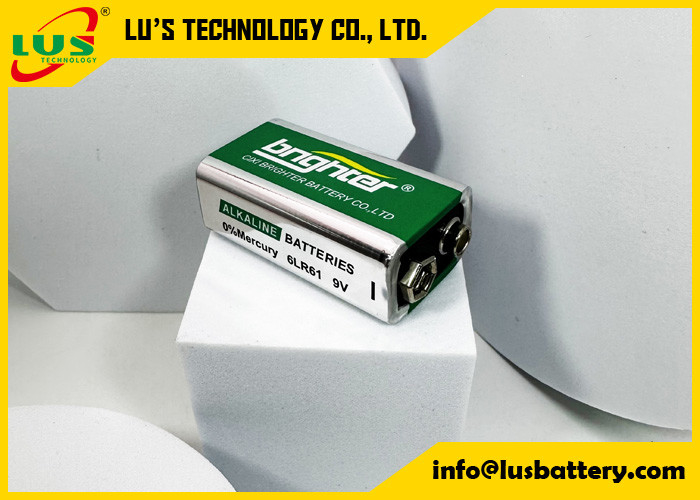

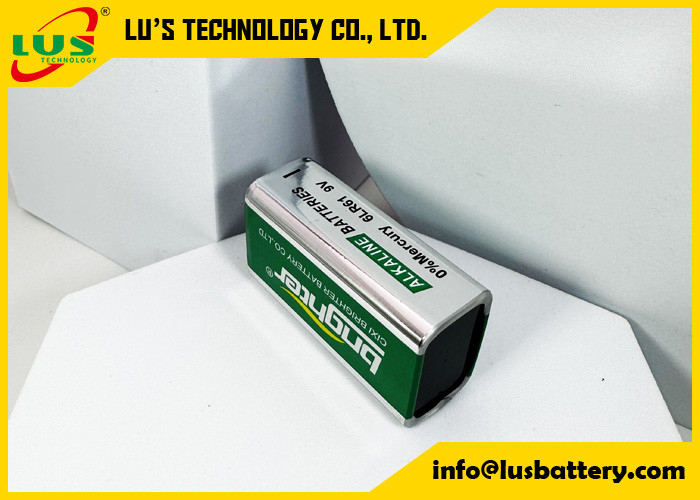

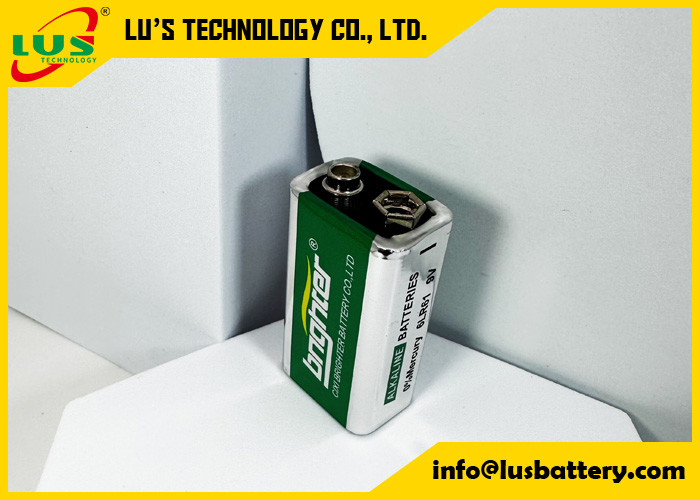

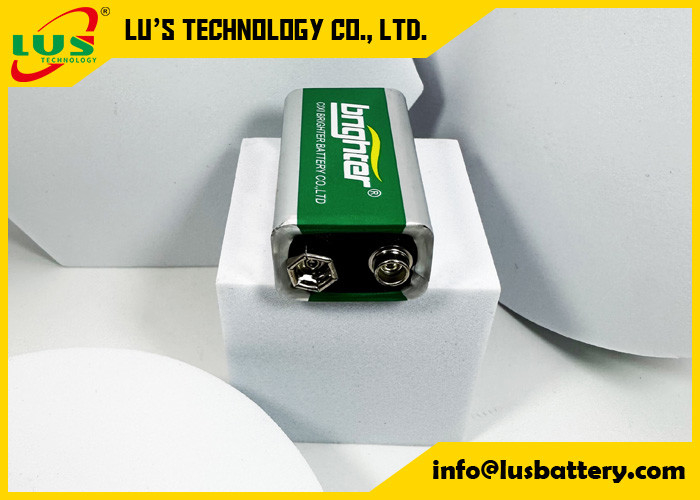

Alkaline Battery 9V 6LR61 Primary Batteries 9V PP3 6LR61 PC1604 batteries
6LR61 9V Alkaline Batteries are specifically designed to meet the demands of modern industrial and manufacturing environments.9 volt alkaline battery for reliable performance on a wide range of devices. Ideal for household items, such as garage door openers, smoke detectors
Battery without mercury or cadmium. Long-life with much longer lifespan than conventional batteries.
6LR61 9V Alkaline E-Block Batteries 6LR61 6AM6 9V cylindrical cell Alkaline Battery 9Volt
Equivalent to: LAP6, M9V/SHD, MN1604, L522, 216, 6F22, K9V, BA3090/U, 1604, 1604A, 1604LC, 006PN, AM6F, A1604, 6F22SB, 6LR61, RF22UB, U9VL, U9VLJ, 5522, U9VL-FP, PP3, PP3HP, 006P, 6LF62, 9 VOLT, HP3
Alkaline battery Typical Applications:
Industrial Alkaline Batteries are used in electronic devices that require a small, compact source of power. Suited to high drainage and power-hungry devices such as power tools, strap on headlights and toys and other applications include:
• Calculators
• Radios
• Utility Meters
• Smoke detectors
• Alarm systems
9v dry cell battery data sheet:
| Battery type | Non rechargeable cell |
| Battery series | Alkaline battery |
| Battery part number | 6LR61 or 9V |
| Battery size | 9v |
| Dimensions | 26.5*17.5*48.5mm |
| Discharge time | 12 hours (270Ω, 1h/d, 5.4V) |
| Storage time | Up to 5 years |
| Package | Blister card or Shrink |
| Logo | OEM |
6LR61 battery drawing:
Disposable battery 9volt battery 6lr61 primary battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| 6LR61/ 9V | 1B/card | 30 cards | 240cards | 391*299*237mm | 13.9 kgs | 1S/shrink | 20 pcs | 360 pcs | 291*237*179 mm | 16.9 kgs |
Non rechargeable Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline rechargeable batteries
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
