Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
AM3 alkaline battery
Video

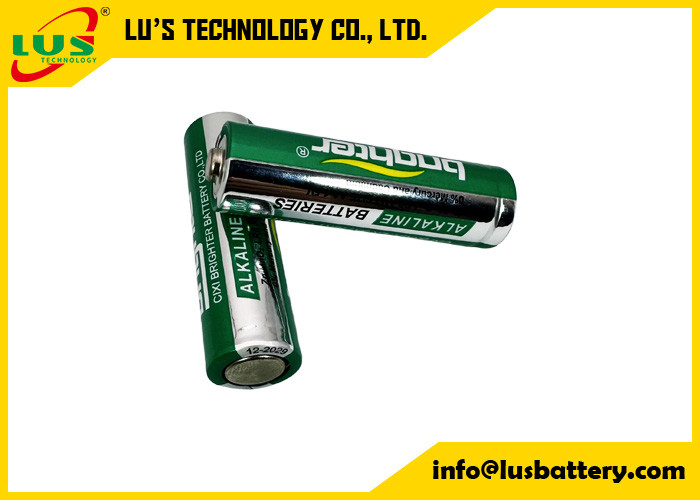

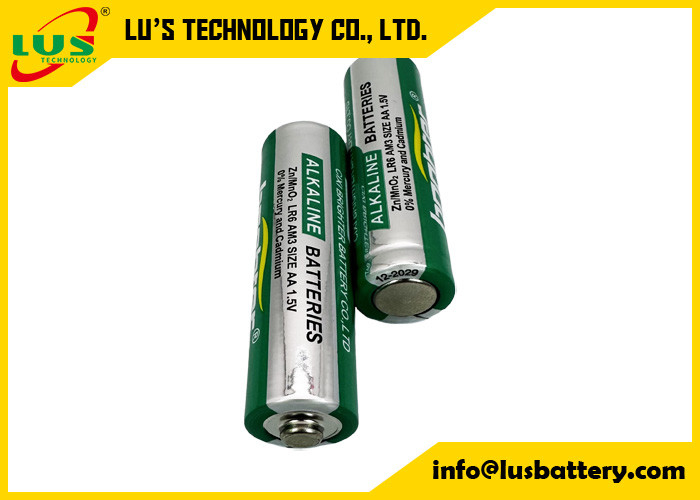

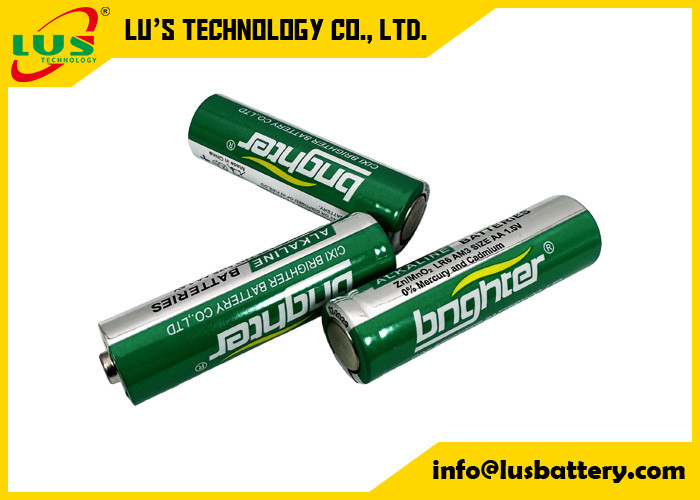

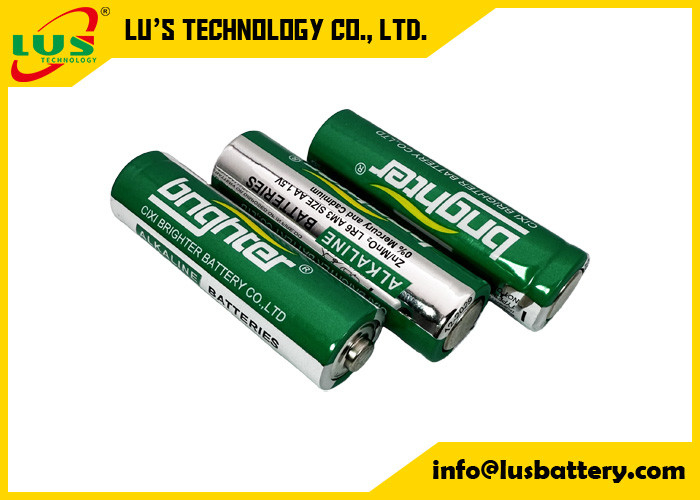

Alkaline battery AA battery 1.5V AM3 LR6 alkaline battery 1.5 volt primary battery
Alkaline Battery SIZE AA LR6 Provides the amount of energy needed for a specific device; ideal for game controllers, toys, flashlights, digital cameras, watches and more.
Alkaline LR6 AA Primary Batteries AA/LR6 Basic MN1500 battery AA/LR6 Alkaline Batteries
Batteries LR Equivalent to MN1500 1.5 volts. Size AA Batteries China LR6 AA battery catalog of 1.5V Lr6 AA No Rechargeable Battery OEM Accepted, Good Quality 1.5V AA Lr6 Am3 Alkaline Battery with RoHS
Alkaline battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Alkaline battery AA size battery 1.5volt battery LR6 battery data sheet:
| Battery type | Alkaline battery cell |
| Battery size | Size AA battery |
| Part number | LR6 |
| Voltage | 1.5 volt |
| Diameter | 13.5-14.5 mm |
| Height | 49.2-50.5 |
| Working time | 10Ω, 24h/d, 0.9V (19.1H ) ; 3.9Ω, 24h/d, 0.9V (6.4 H) |
| Weight | 0.0228 kg |
LR6 battery 1.5 volt primary cell drawing:
Size AA battery 1.5volt LR6 alkaline battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
| 2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs | ||||||
Primary Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
