Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
Alkaline battery C
Video
LR14 Battery AM2 alkaline battery C size primary battery 1.5volt battery
C Lr14 Battery 1.5 Volt LR14 Non Rechargeable battery Size C Alkaline Battery for Everyday Clocks Remotes Games Controllers Toys & Electronics
Alkaline C-cell battery C-cell LR14 1.5V alkaline battery with High performance and long lifetime
Single use not rechargeable cell Dimensions, mm max 26.2, height: 50.0 C LR14 MN1400 is a special disposable single-use alkaline battery with a capacity of 1.5V and 8Ah, indicated for powering security devices.
MN1400 LR14/C battery The battery type is alkaline Long Lasting Alkaline Battery 1.5V C LR14
C batteries also known as LR14 batteries, are versatile power solutions ideal for a variety of devices in both household and commercial settings.
Customized C Size Lr14 R14 Alkaline Battery 1.5V Cell for Torch Alkaline Battery 1.5V C Size Am2 Lr14 Non Rechargeable battery
LR14 battery is a dry cell battery with 1.5Volt power
Chemical system:Zn-MnO2(KOH), without Hg&Cr
Nominal Voltage:1.5V
Designation : IEC:LR14 ANSI: C JIS:AM-2 Others: E93
Battery type LR14 C 1.5V
Diamter 24.9~26.2 mm
Height 48.6~50.0 mm
Weight 0.0682 kg
Alkaline Cylindrical Battery 0% Mercury Alkaline Cylindrical Battery Series LR14 battery 1.5 volt batteries
Other designations: LR14 / C / R14 / MN 1400 / Baby / AM-2 / E93.
Alkaline battery C LR14 1.5v battery C battery data sheet:
| Model | LR14 C |
| Diameter | 24.9-26.2 |
| Height | 48.6-50.0 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 3.9Ω, 24h/d, 0.8V / 20H |
| 6.8Ω, 1h/d, 0.9V / 39H | |
| Shelf life | more than 5 years |
| Jacket | Foil label |

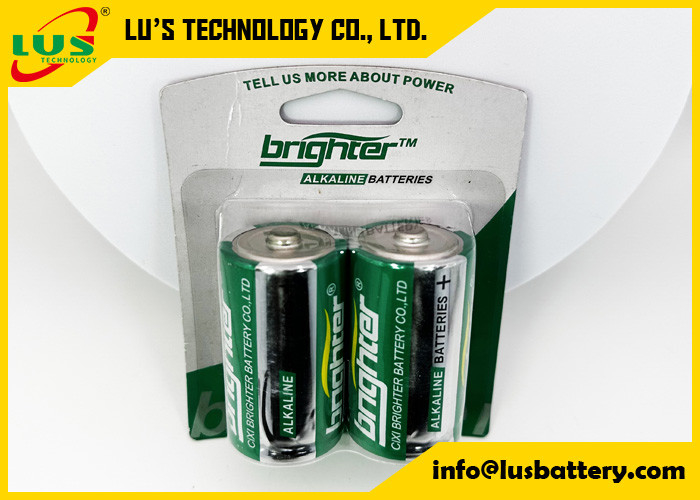

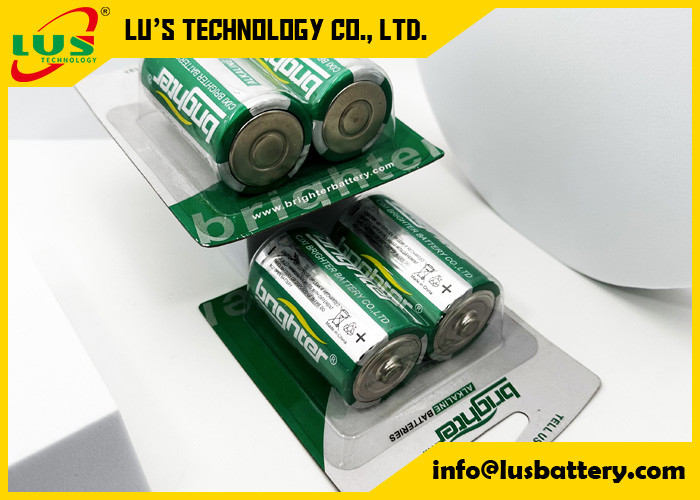

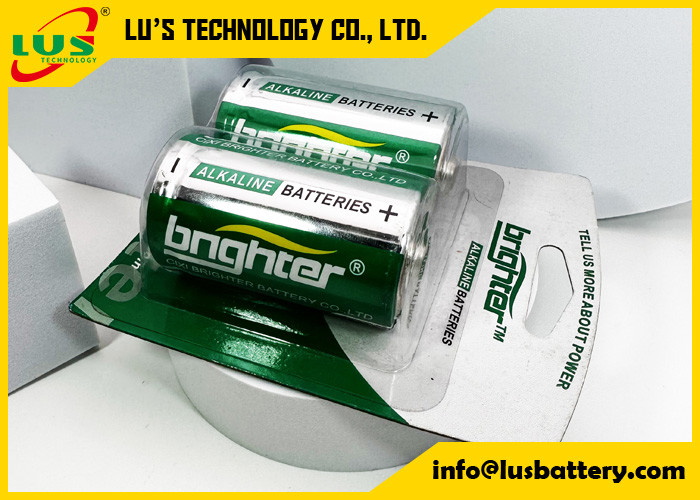

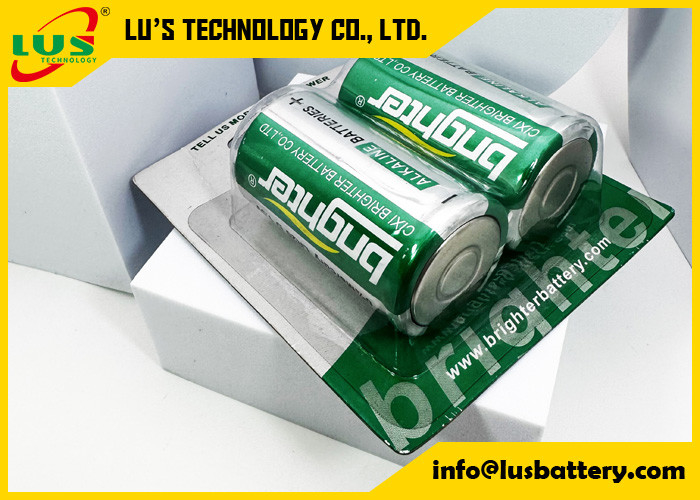

| Package | Blister card or Shrink |
| Battery pack | any combinations welcome customized |
C size primary battery 1.5volt LR14 alkaline battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR14/ C / 1.5v | 2B/card | 12 cards | 96 cards | 397*304*193mm | 14.8 kgs | 2S/shrink | 24 pcs | 192 pcs | 337*235*136 mm | 13.7 kgs |
Alkaline primary battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
