Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
LR20
Video

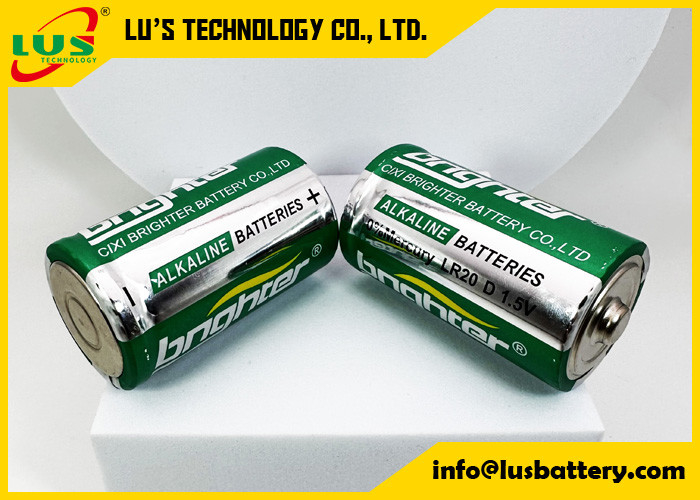

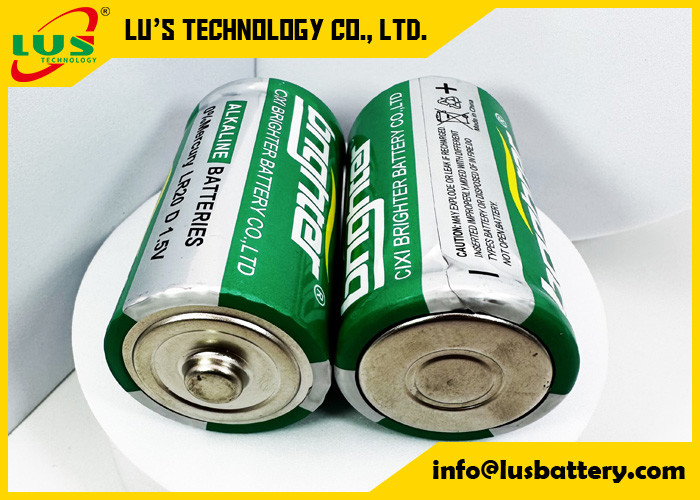

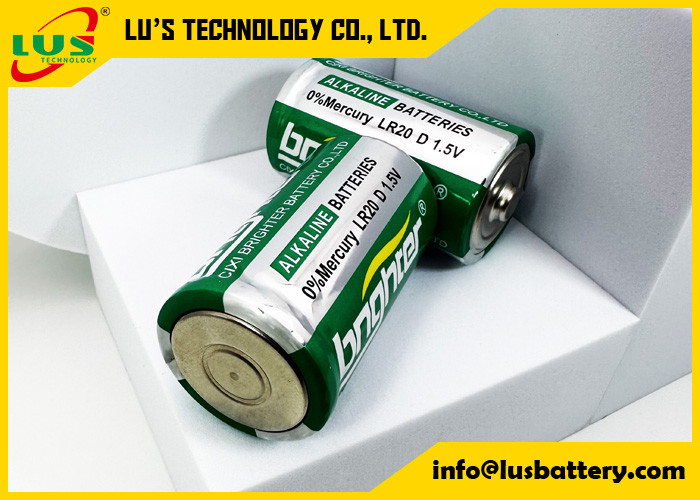

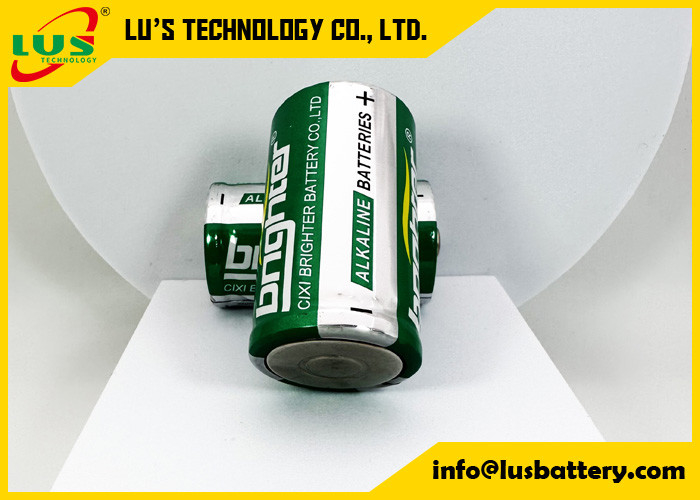

Size D dry cell battery 1.5V Alkaline Battery AM1 alkaline cell LR20 battery 1.5Volt battery LR20 D type batteries
Lr20 Battery is Alkaline Manganese Dioxide Battery Cell in Size D with Voltage Rated1.5 V alkaline battery
lr20 d size D LR20 1.5V Alkaline Batteries are a reliable and efficient power solution for both businesses and consumer customers battery E95 1.5V Alkaline D battery
Industrial battery D alkaline battery LR20 alkaline battery MN1300 Alkaline Battery Lr20 1.5Volt Alkaline D Size Primary Dry Battery.
D Batteries industrial make up our range of D size, also known as LR20 alkaline batteries.
Type: Alkaline. Voltage: 1.5 V.
Length: 62 mm. Diameter: 33 mm.
Also known as: LR20, MN1300, R20, R20P, LR20, LR20A, AM-1, AM1, HP11, Kodak KD, K4A, LR20N, NEDA 13A, 13AC, 6D, 813, 4020, 3020, D, AM2, E95, 1009, SUM1, BA3030/U battery
1.5 volt disposable alkaline D size battery LR20 popular small cylinder battery is commonly used in battery powered toys, portable radios, torches and may other battery powered applications.
Alkaline D size battery LR20 cells have an excellent specification.
These 1.5 volt Size D alkaline batteries give superior performance over zinc chloride and carbon zinc batteries and are specially suited to today's high tech products.
These alkaline D LR20 batteries have a shelf life up to 5 years.
Alkaline battery Advantages
1)Lead-free and mercury-free environmentally friendly design, safer to use
2)Long-lasting storage, anti-leakage technology, not easily broken under pressure
3)New strength electrolyte formula, the power exceeds the national standard limit by more than 30%
Alkaline battery Typical Applications:
Industrial Alkaline Batteries are used in electronic devices that require a small, compact source of power. Suited to high drainage and power-hungry devices such as power tools, strap on headlights and toys and other applications include:
• Calculators
• Radios
• Utility Meters
• Smoke detectors
• Alarm systems
Alkaline battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
D battery 1.5v alkaline battery LR20 dry cell battery data sheet:
| Battery type | Dry cell alkaline battery |
| Part number | LR20 |
| Battery size | D |
| Voltage | 1.5 volt |
| Diameter | 32.3~34.2 mm |
| Height | 59.5~61.5mm |
| Weight | 0.141 kg |
| Shelf life | up to 5 years |
Disposable battery 1.5v battery Lr20 disposable battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR20/ D / 1.5v | 2B/card | 12 cards | 48cards | 325*203*243mm | 14.8 kgs | 2S/shrink | 12 pcs | 96 pcs | 297*231*158 mm | 14.2 kgs |
Non rechargeable Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline rechargeable batteries
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
