Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
LR14
Video

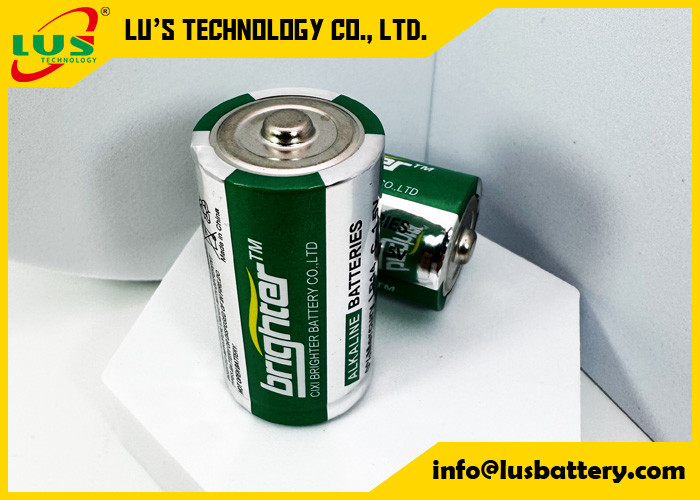

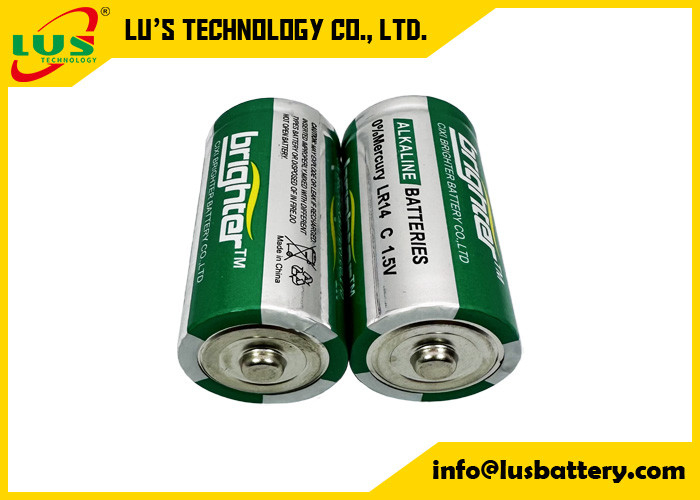

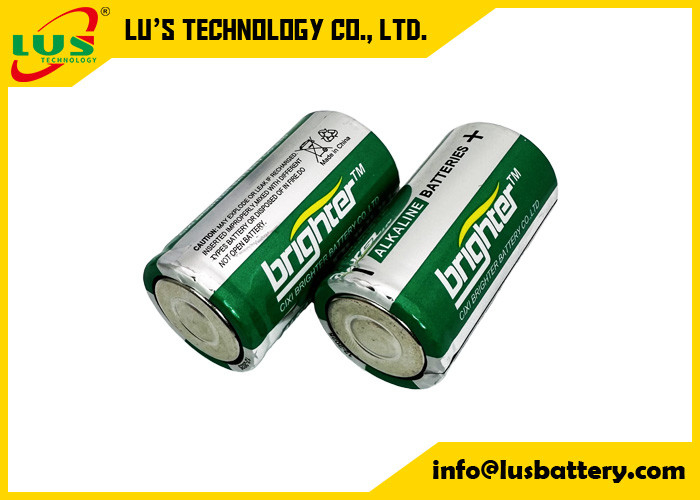

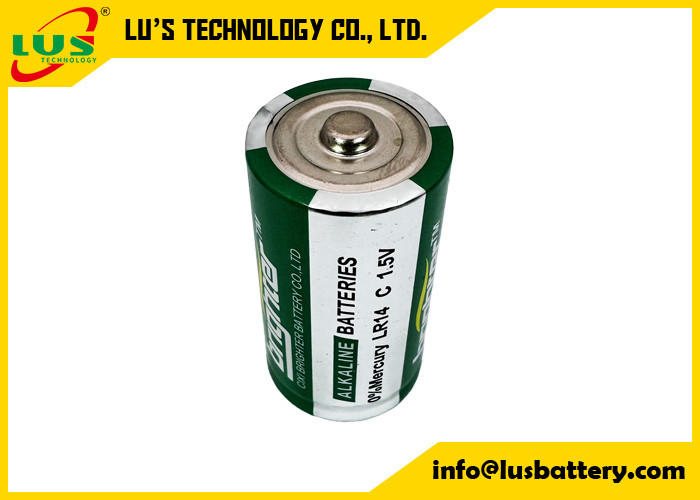

Alkaline Battery LR14 dry cell battery size C battery AM2 1.5V battery LR14 Alkaline cell battery 1.5VC primary battery
C LR14 Alkaline Battery in size C called LR14 battery or MN1400 battery is a special disposable single-use alkaline battery
LR14 alkaline battery is designed for use with electronic devices.
The C/LR14 disposable battery covers a very wide range of applications.
LR14 C battery type is alkaline. It is the optimal choice for devices that are expected to function for a long time.
The output voltage is 1.5 V C Size alkaline battery with a high energy output that is reliable, with a long shelf life and good low temperature performance.
Battery size is C. The LR14 battery is of 1.5V voltage. Contains alkaline. Is non-rechargable. Free of lead and cadmium.
LR14 battery is a dry cell battery with 1.5Volt power
Chemical system:Zn-MnO2(KOH), without Hg&Cr
Nominal Voltage:1.5V
Designation : IEC:LR14 ANSI: C JIS:AM-2 Others: E93
Battery type LR14 C 1.5V
Diamter 24.9~26.2 mm
Height 48.6~50.0 mm
Weight 0.0682 kg
Alkaline Cylindrical Battery 0% Mercury Alkaline Cylindrical Battery Series LR14 battery 1.5 volt batteries
Other designations: LR14 / C / R14 / MN 1400 / Baby / AM-2 / E93.
Recommended for: digital toys, remote control toys, remotes, flashlights, clocks, radios, power backup.
Alkaline battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Alkaline battery C LR14 1.5v battery C battery data sheet:
| Model | LR14 C |
| Diameter | 24.9-26.2 |
| Height | 48.6-50.0 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 3.9Ω, 24h/d, 0.8V / 20H |
| 6.8Ω, 1h/d, 0.9V / 39H | |
| Shelf life | more than 5 years |
| Jacket | Foil label |
| Package | Blister card or Shrink |
| Battery pack | any combinations welcome customized |
C size primary battery 1.5volt LR14 alkaline battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR14/ C / 1.5v | 2B/card | 12 cards | 96 cards | 397*304*193mm | 14.8 kgs | 2S/shrink | 24 pcs | 192 pcs | 337*235*136 mm | 13.7 kgs |
Alkaline primary battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
