Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
LR61
Video
9V Alkaline Battery 9 volt dry cell battery 6LR61 alkaline battery customization batteries

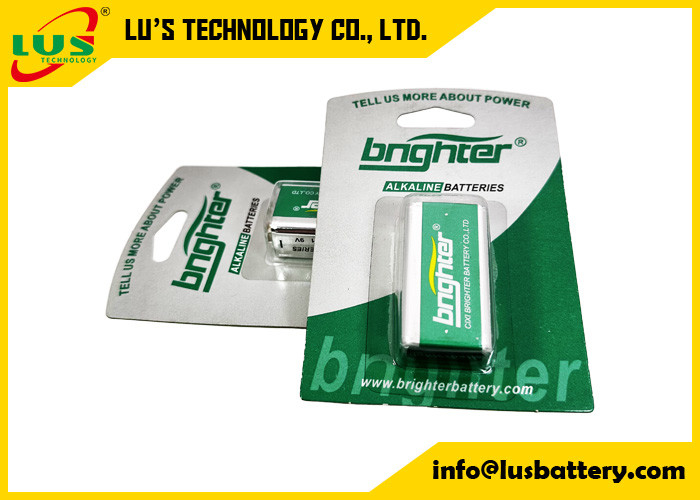

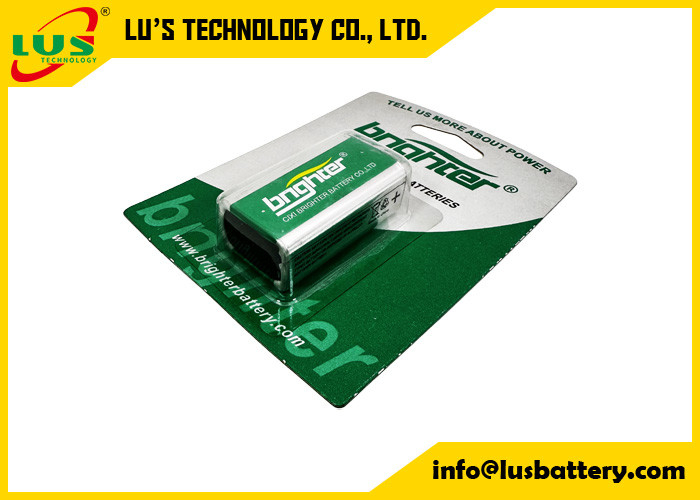

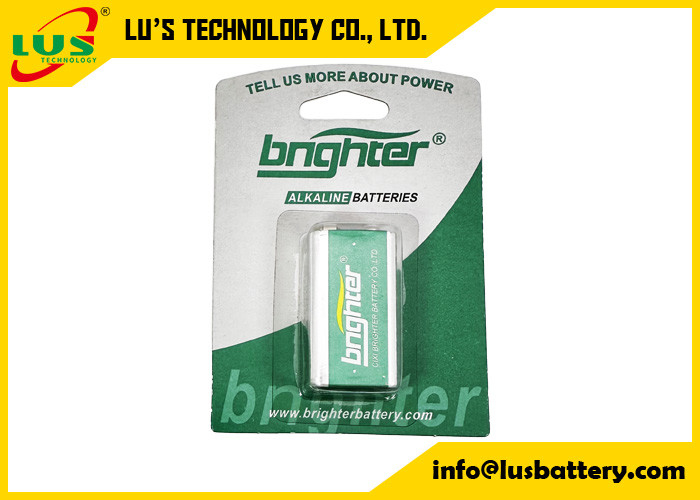

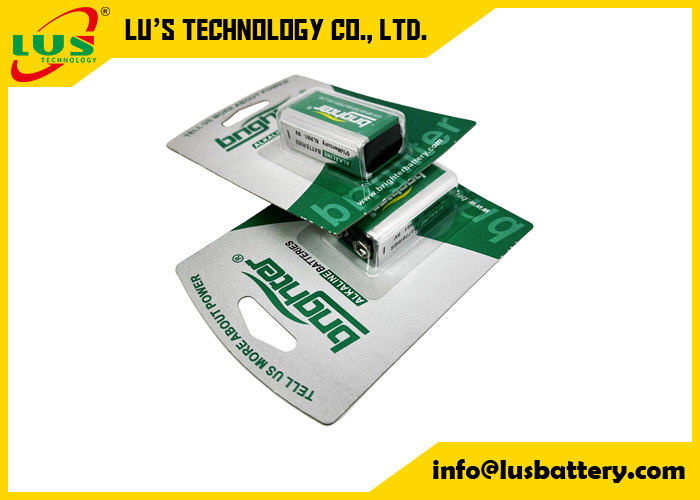

The 9v alkaline battery 6LR61 battery is primary battery that in square shape. Normaly come with blister card or shrink.
Alkaline battery 9V part number 6lr61 battery make with manganese dioxide, graphite, zinc material.Each battery has a 5 year lifespan, so it's perfect to keep it at home.
The 9V PP3 6LR61 Battery is a power house of reliability, essential for a broad spectrum of devices.
From ensuring the safety of your home with smoke detectors to maintaining the harmony in music through guitar pedals and tuners, 9 volt battery is a universal solution for uninterrupted power.
Its compatibility with a variety of codes including 6LR61, MN1604, and PP3, makes it a versatile and easily replaceable option. Designed to perform in extreme conditions, it's the ideal choice for businesses and consumers seeking a durable and dependable power source.
Technical Specifications:
Equivalent to: LAP6, M9V/SHD, MN1604, L522, 216, 6F22, K9V, BA3090/U, 1604, 1604A, 1604LC, 006PN, AM6F, A1604, 6F22SB, 6LR61, RF22UB, U9VL, U9VLJ, 5522, U9VL-FP, PP3, PP3HP, 006P, 6LF62, 9 VOLT, HP3
Alkaline battery Typical Applications:
Industrial Alkaline Batteries are used in electronic devices that require a small, compact source of power. Suited to high drainage and power-hungry devices such as power tools, strap on headlights and toys and other applications include:
• Calculators
• Radios
• Utility Meters
• Smoke detectors
• Alarm systems
Alkaline battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
9v dry cell battery data sheet:
| Battery type | Non rechargeable cell |
| Battery series | Alkaline battery |
| Battery part number | 6LR61 or 9V |
| Battery size | 9v |
| Dimensions | 26.5*17.5*48.5mm |
| Discharge time | 12 hours (270Ω, 1h/d, 5.4V) |
| Storage time | Up to 5 years |
| Package | Blister card or Shrink |
| Logo | OEM |
6LR61 battery drawing:
Disposable battery 9volt battery 6lr61 primary battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| 6LR61/ 9V | 1B/card | 30 cards | 240cards | 391*299*237mm | 13.9 kgs | 1S/shrink | 20 pcs | 360 pcs | 291*237*179 mm | 16.9 kgs |
Non rechargeable Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline rechargeable batteries
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
