Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
cr2477-3P 3000MAH CMOS CR2477
Video
Video

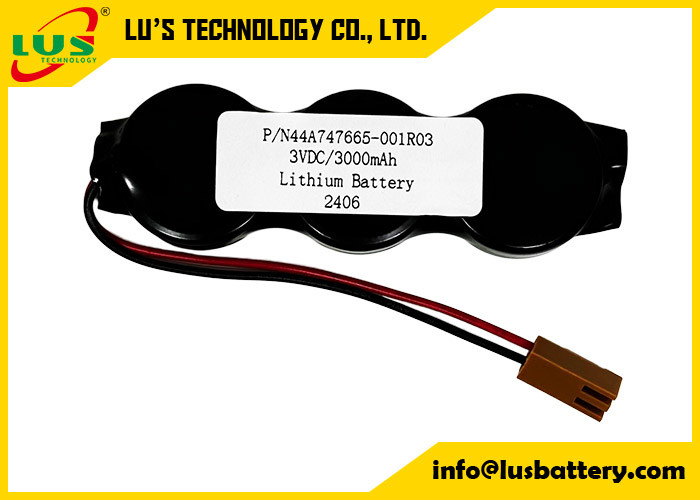

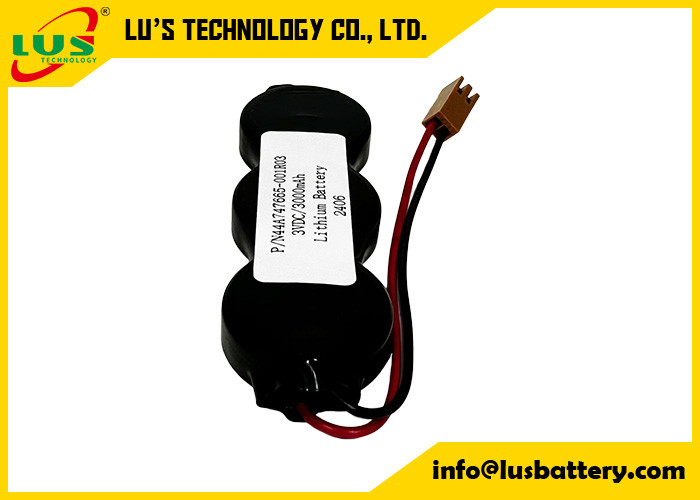

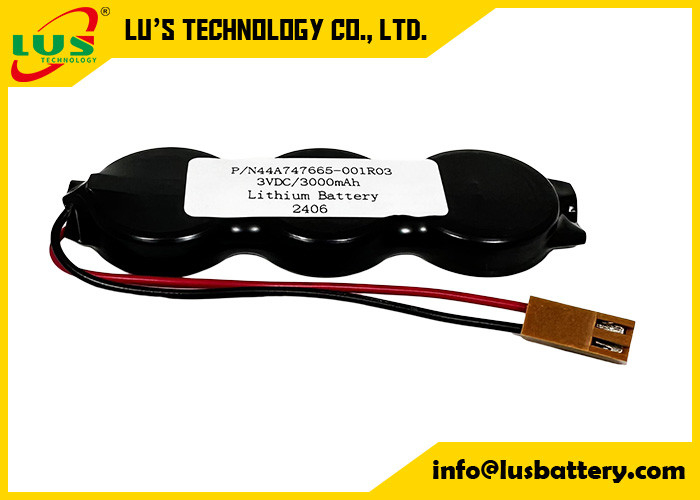

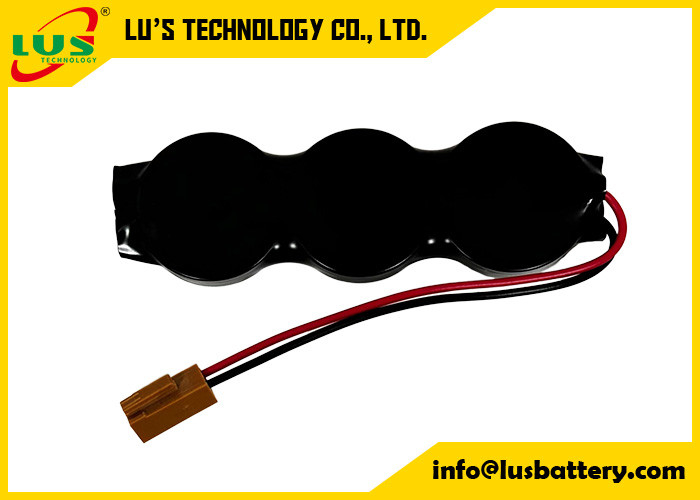

High Capacity 3000mAh 3V Battery Packs CR2477-3P lithium battery P/N44A747665-001R03
CMOS battery 3x cr2477 CR2477-3P battery pack with wires and connectors
Cr2477 (3P) Primary 3V Lithium Button Cell Coin Battery
CR2477 Battery to. Cr2477 Lir2477 Br2477 Cr2477 3p 3V Lithium Battery Cr2477 3p Lithium Coin Battery 3V Coin Cell CR2477
CR2477 3V LITHIUM BATTERY
- 3V Lithium Battery
- Compatible with: DL2477, ECR2477, GPCR2477
The lithium batteries operate reliably and discharge with exceptional energy-efficient performance even under the extremes of cold and hot from -20°C to +60°C.
High-Capacity Power The CR2477 rechargeable battery offers a high-capacity charge, making it ideal for devices that require significant power.
The CR2477 battery is a 3-volt, lithium manganese dioxide (LiMnO2) coin cell battery measuring 24.5 mm in diameter and 7.7 mm in height,CR2477 Batteries.
This is amongst the largest of the coin-style, 3V lithium batteries, typically used in calculators, cameras, multi-function watches and backup system
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Nominal voltage | V | 3.0 | ||
| Nominal capacity | mAh | 1100 | Standard discharge with load 4.7kΩ | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.20 | ||
| Operating temperature | ℃ | -20~60 | ||
| Standard weight | g | 10.2 | Unit cell | |
| Service output | Initial | Standard | 1900 h | Continuous discharge with load 4.7kΩ, till 2.0v end-voltage at 20~25℃ |
Specification for Button Battery 3.0V 3PCR2477 Cion cell battery pack OEM Data:
| Type | Primary lithium battery |
| Model | 3Pcr2477 |
| Voltage | 3V |
| Capacity | 3000mah |
| Terminals | 51021 or SHR-2p, or customized |
| Application | Toys, Tags, RFID etc |
| LOGO | Welcome customized |
| Shipping | express, air, sea |
| OEM | Welcome |
| Payment | T/T or depends on the quantity |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery 3v:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |
Warning
Coin batteries must be kept out of reach of children. Consult a doctor immediately if swallowed.
This CR2477 button battery from LUS features a nominal voltage of 3 V with a 1000 mAh capacity. This lithium manganese dioxide button battery has a 24.5 mm diameter and a height of 7.7 mm. The PCB pin terminals of the CR2477 button battery allow you to install it into a circuit board. This battery requires horizontal orientation when installed.
