Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
18650 3.2v lifepo4 1500mah
Video
Video

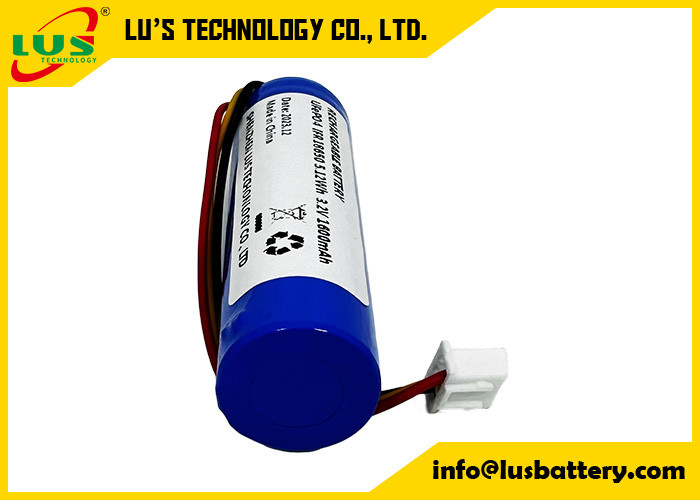

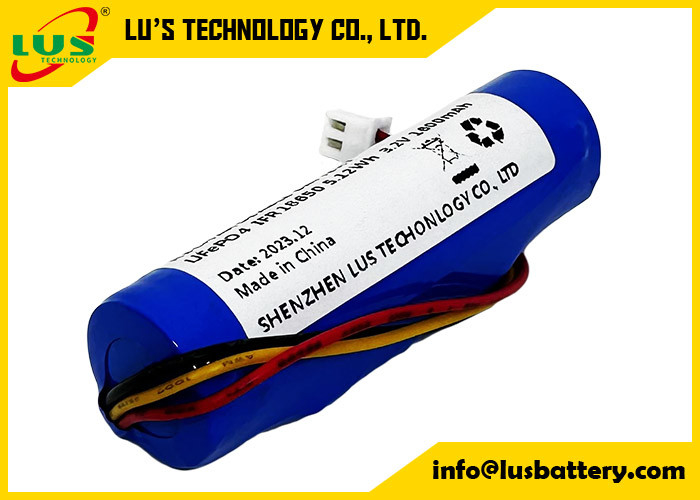

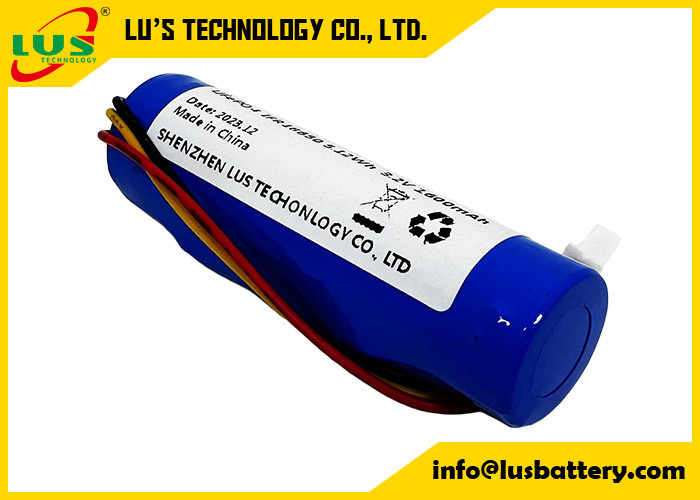

18650 Battery 1500mAh 3.2V Rechargeable Lifepo4 Battery Pack OEM IFR18650 1.5ah lithium battery
IFR 18650 3.2V 1500mAh Lithium Li-ion Li ion LiFePO4 Rechargeable Lithium ion Battery Cell 18650 3.2V 1500mAh Battery,
18650 3.2V LiFePO4 Battery for Solar Light, Spotlight
IFR, Rechargeable, High Cycle Battery 18650
Nominal Voltage: 3.2V
Nominal Capacity: 1500mAh
Type: LiFePO4, Rechargeable
Charging Method: CC/CV 3.6V
Discharge Voltage: 2V
Battery Size: 18 mm x 65 mm
Min. Rated Capacity: 1450mAh
Energy: 4.8Wh
Standard Charging Current CC: 750mA
Max. Rapid Charging Current: 1500mA
Continuous Discharge Current: 1.5A
Weight: 40gr. Max
Colour: Blue, Gold
Battery BMS Protection: depends on you
Model: Flat
18650 Rechargeable Batteries / cells can be dangerous if used improperly.
Li-ion batteries 3.2V Lithium Iron Phosphate 18650 1500mAh LiFePO4 Battery IFR 18650 battery 3.2v 1500mah 18650 LiFePO4 rechargeable battery for backup power
| Part number | IFR18650 / LFP18650 |
| Voltage | 3.2V |
| Capacity | 1500mah |
| Charge current | 0.5C - 1C |
| Discharge current | 0.5C - 1C - 3C |
| Terminals | Pins/wires/connector depends on your needed |
| Label | Welcome customized |
| Battery pack OEM | Welcomed |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Hot sale model such as
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Features/Specs:
Chemistry: LiFePo4
Model: IFR18650
Nominal Rated Voltage:3.2 V
Rechargeable: Yes
Nominal Capacity: 1600mAh
Maximum Discharge Current: 3C
Maximun charge current: 1C
Maximum Charge Voltage: 4.2±0.05V
Color: Blue / Green depends on you
IFR18650 lithim battery data sheet:
| NO. | Item | Standard | Note | |
| 1 | Standard Capacity | 1600mAh | 0.5C,(current value of 1600mA at 1C) | |
| 2 | Minimum Capacity | 1550mAh | 0.5C | |
| 3 | Standard Voltage | 3.2 V | ||
| 4 | Alternating Internal Resistance | ≤40mΩ | ||
| 5 | Charge Conditions | Cut-off Voltage | 3.65±0.05V | constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C m A. |
| Cut-off Current | 0.01C | |||
| 6 | Max. Charging Current | 1.6A | ||
| 7 | Discharge Cut-off Voltage | 2.5V | ||
| 8 | Standard Discharge Current | 0.8A | ||
| 9 | Fast Discharge Current | 1.6A | This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃. | |
Advantages:
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
