Lithium iron phosphate battery 3.2 volt 100ah 110Ah Lithium Battery LiFePO4 Battery DIY

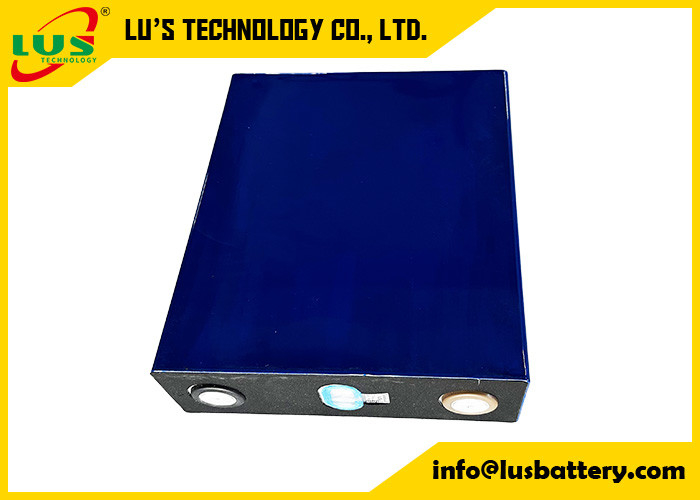

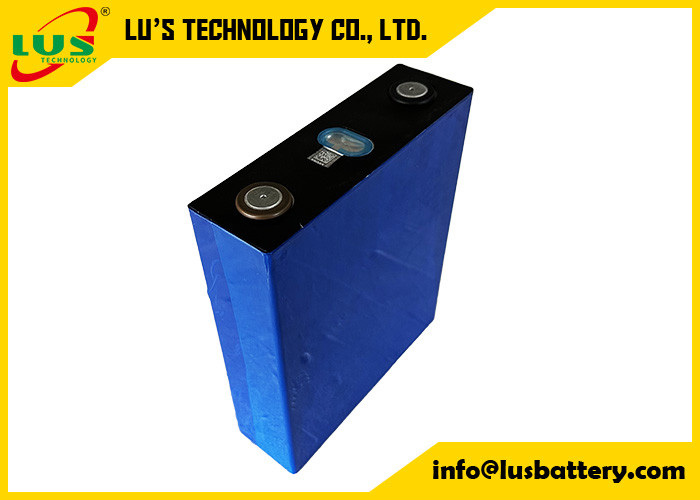

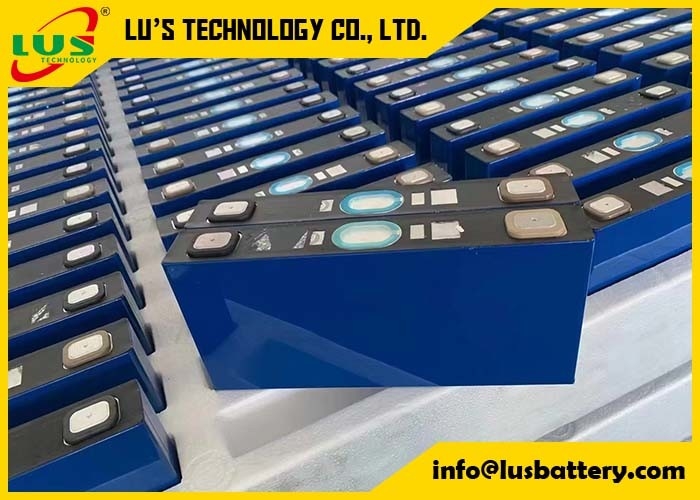

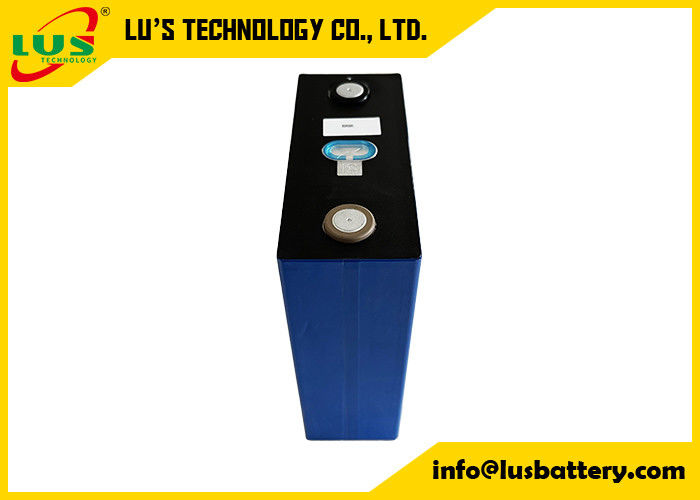

3.2V 100Ah 110Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery
With high efficiency and ultra-fast charging and discharging the 3.2V 100Ah prismatic energy cell is ideal for a variety of industrial applications.
3.2V 100ah LiFePO4 Battery Storage Prismatic Cells Grade a, Find Details about 32V 150ah LiFePO4 Battery Cell, 3.2V 280ah LiFePO4 Cell from LUS battery
Specification:
Battery Cell Type: Lithium Iron Phosphate (LiFePO4) battery cells
Typical capacity: 100Ah / 110Ah max
Typical Energy: 320Wh
Operating voltage:
2.5 - 3.65V Cell temperature T>0°C
2.0 - 3.65V Cell temperature T≤0°C
Impedance (1KHz): 0.28±0.05mΩ
Cell Weight: 1.95± 0.15Kg
Dimension (WxHxD): 160x119x49.91mm
Cycle life: >3500 cycles
Standard charge Current: 0.5C
Standard charge voltage: Cell max voltage 3.65V
Standard discharge current: 0.5C
Maximum discharge current (continuous): 1C
Discharge cut-off voltage: 2.5V 2.0V
Shell Material: Aluminum
Lithium Iron Phosphate Battery LiFePO4 3.2V 100Ah
| Typical capacity | 100ah |
| Typical energy | 320Wh |
| Operating voltage | 2.5V- 3.65V/ 2.0V - 3.65V |
| Residual capacity loss | Per month < 3.0% |
| Cell weight | 1.92 kg |
| Altitude | <5000M |
| Cycles | >4000 times |
| Standard charge/discharge current | 1C |
| Max. discharge current | 2C |
| OEM | Welcomed |
Function of Lithium Battery
Bluetooth Function
Lithium Battery technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
