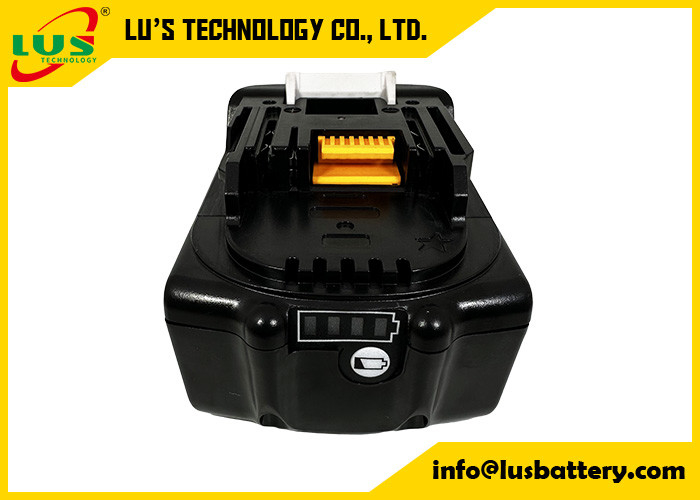

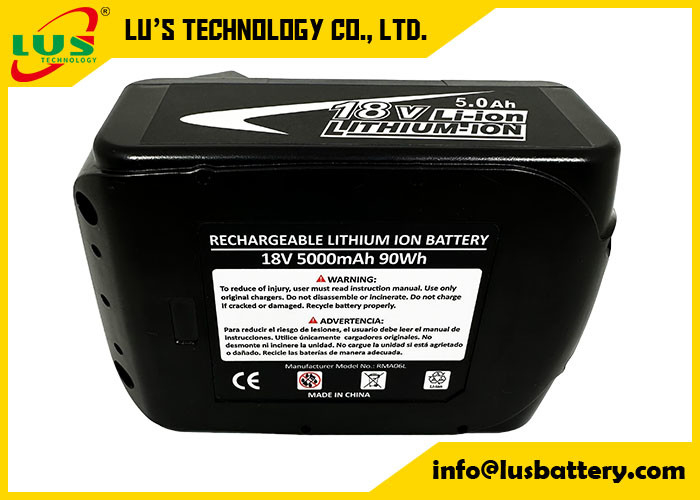

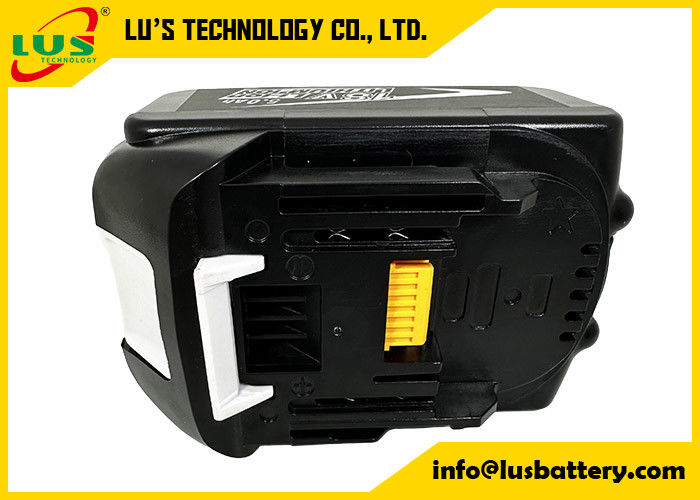

BL1850 632B77-5 Lithium-Ion Battery 18V 5 Ah OEM power tool batteries 18v Li-ion battery

• BL1850 632B77-5 Lithium-Ion Battery 18V 5 Ah OEM power tool batteries 18v Li-ion battery
• The BL1850B battery has a 5.0Ah capacity, which means it can power your tools for a longer period before requiring a recharge.
• BL1830 BL1850 BL1845 BL1860 series Features:
• 1. New and in a good condition.
• 2. Made of durable and reliable material, harmless to your health.
• 3. It is easy to use for replacement for Drill or other power tools
• 4. Lightweight and shock-absorbing.
• The Li-ion range delivers 430 percent more working capacity during it's lifetime compared to Ni-Cad and is 40 percent Lighter than Ni-MH.
• The Li-ion has minimal depletion of power during use or in storage over it's lifetime.
• Specification:

• Items	Criteria	Remarks
  Typical Capacity	5000mAh	Charge : 0.5C(2500mA), 4.2V, 0.02C(100mA) cut-off Discharge :0.2C(1000mA), 2.7V cut-off At 25ºC ± 5ºC
  Minimum Capacity	4500mAh
  Power	90Wh
  Nominal Voltage	18V
  Open Circuit Voltage	21V
  Internal Impedance	Cell: ≤100mO	AC 1KHz after standard charge
  	Battery pack: ≤200mO
  Charge voltage	21V
  Charge Time (Std.)	4 hours	Standard charge
  Standard charge current	2500mA	Cut off at 100mA
  Standard discharge current	1000mA	at 25ºC ± 5ºC
  Continuous discharge current	30A	-10 to 60°C
  Peak discharge current	50A	-10 to 60°C
  Discharge cut-off voltage	13.5V
  Storage Temperature	-20ºC~+45ºC	Less than 1 month
  	-20ºC~+25ºC	Less than 3 months

•

How to order:
1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing/Specification confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)

Cost Performance

♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.

♦ Smaller Space: 1/3 of the lead acid battery.

♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.

♦ Safety Cost: stable discharge platform to avoid euipmet exception.

♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.

Outstanding Performance of BMS

Self-Checking

Defect Alerting Function

Capacity (SOC) Calculating

High Voltage Leakage Warning

Charging and Discharging Management

Collection of Voltage, Current and Temperature

Over Current, Over Volt, Temperature Protection

Communication: display / car can bus communication, data transferring

Electric Propelling Applications

Engine Starting Battery

Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,

E-truck, E-sweeper, Floor cleaner, E-walker etc.

Intellectual Robots

Power tools: electric drills, toys

Energy Storage

Solar-Wind Power System

City Grid (On/Off)

Community and Family

Back-up System and UPS

Telcom Base, CATV system, Computer Server Center, Medical Instrumnt

Other Applications

Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

Cells part number

18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700

OEM lithium battery packs
