Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
12V 10ah lithium batteries
Video
Video

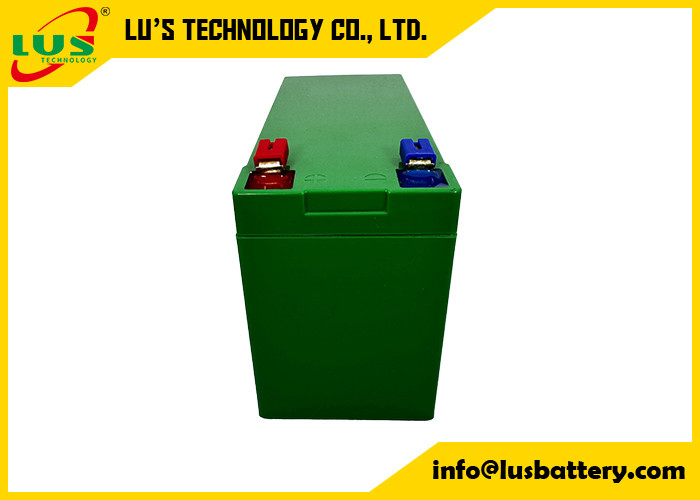

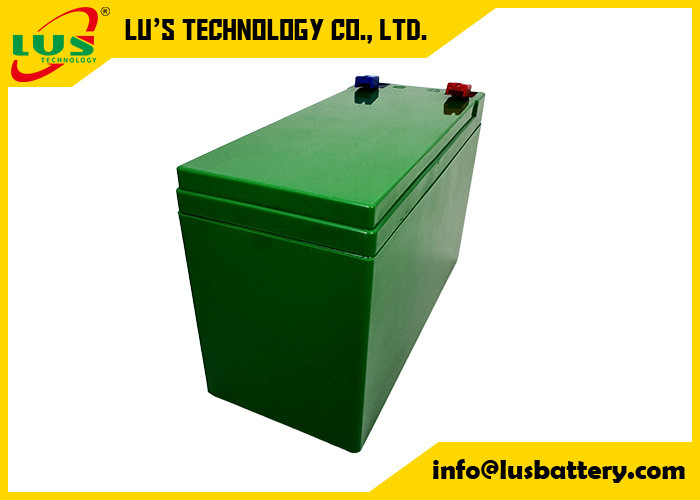

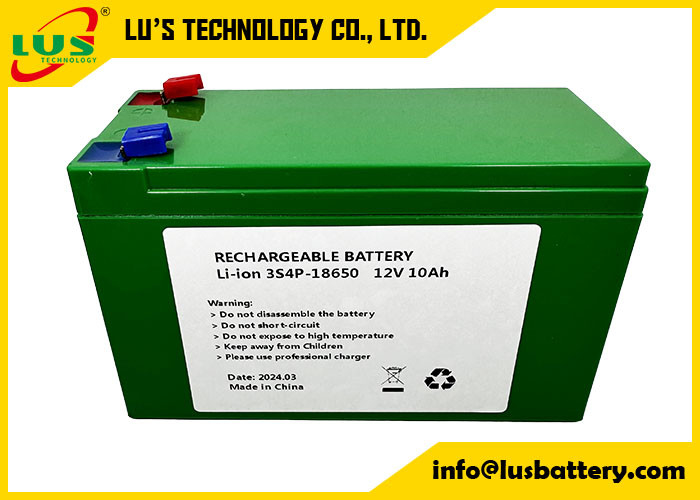

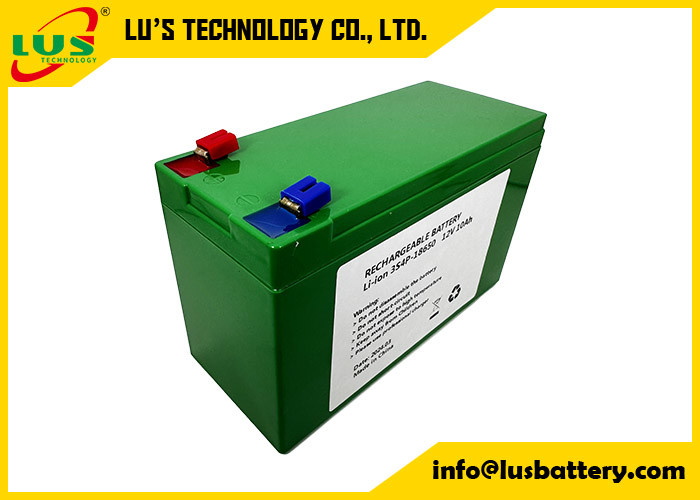

12-volt 10Ah battery pack OEM 12V10AH rechargeable lithium battery equals lead-acid battery
Custom 18650 lithium battery pack 3S4P 12 volt 10ah rechargeable batteries
12V lifepo4 battery pack up to 2000 times cycle but a little expensive price
NCM 12V battery pack more cheaper
| Specifications | 12V10Ah |
| Battery Designation | This is 12 volt li ion battery pack make with ICR18650 3S4P NCM battery pack 10AH with OEM serivce |
| Nominal Voltage | 12V |
| Nominal Capacity(C/5,23) | 10Ah |
| Charge method | CCCV |
| End of Charge voltage | 14.6V |
| Float Voltage | 13.8V |
| Recommended charging current | 3.5A |
| Terminals | VRLA6.3mm |
| Dimension | 151x65x95mm |
| Discharge Temperature | -10 to 50 |
| Charge Temperature | 0 to 45 |
| Storage Temperature | -40 to 50 |
| Operating humidity | 5% to 95%, non-condensing |
| Water/dust resistance | IP56 |
Other hot sale 12V lithium ion battery pack
|
Specifications |
12V7Ah |
12V12Ah |
12V20Ah |
|
Nominal Voltage |
12.8V |
12.8V |
12.8V |
|
Nominal Capacity(C/5,23℃) |
7Ah |
12Ah |
20Ah |
|
Max output current(30S) |
21A |
30A |
30A |
|
Max Cont Discharge current |
7A |
12A |
20A |
|
Discharge Cut-off Voltage |
10V |
10V |
10V |
|
End of Charge voltage |
14.6V |
14.6V |
14.6V |
|
Float Voltage |
13.8V |
13.8V |
13.8V |
|
Recommended charging current |
3.5A |
6A |
10A |
|
Terminals |
VRLA6.3mm |
VRLA6.3mm |
M6 |
|
Dimension |
151x65x95mm |
151x98x95mm |
181.5x77x166 |
Function of Lithium Battery
Bluetooth Function
Lithium Battery technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
