Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
12V8ah li ion battery
Video
Video

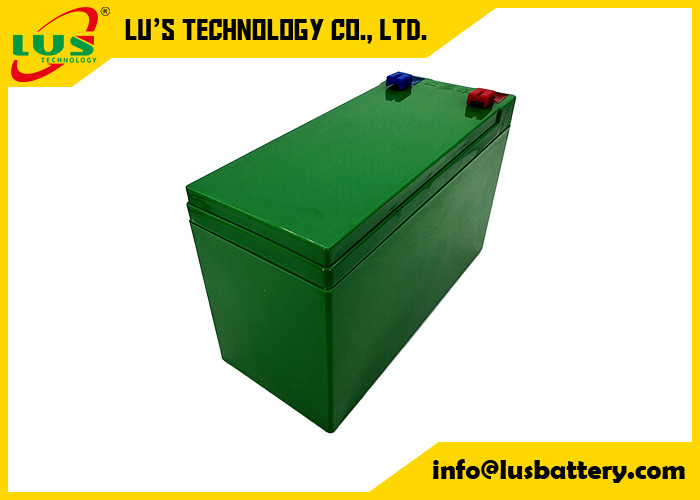

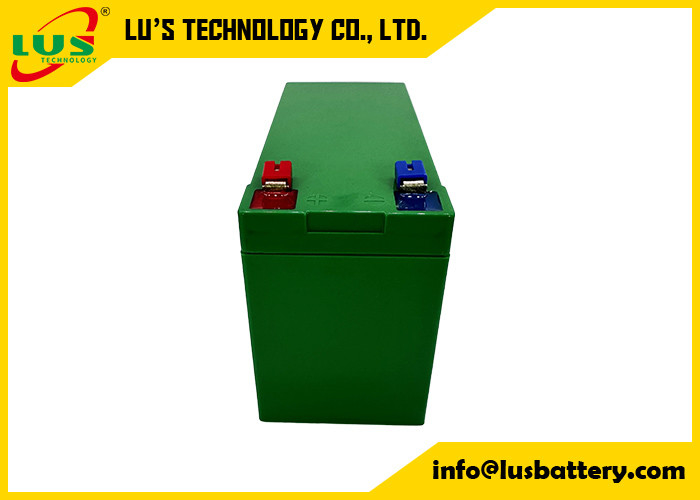

The 12Volt 8ah lithium battery pack replacement 12v lead acid battery and AGM/GEL batteries 12 volt
It can be make with LiFePo4, NCM or lipo battery cells, depends on your needed.
12V lithium battery pack OEM service for LED
| Specifications | 12V8Ah |

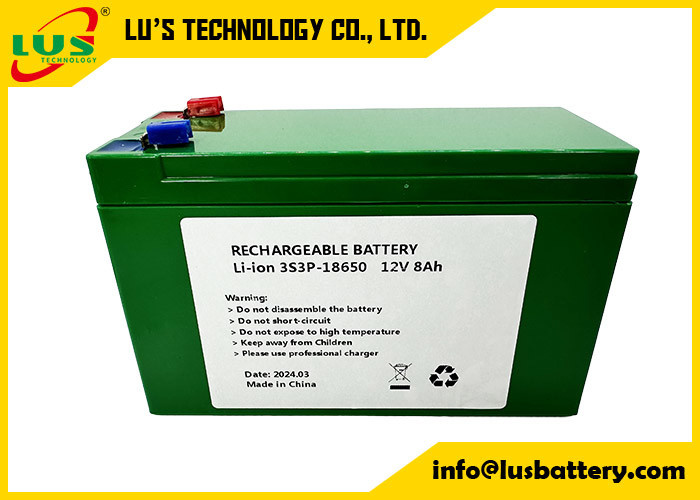

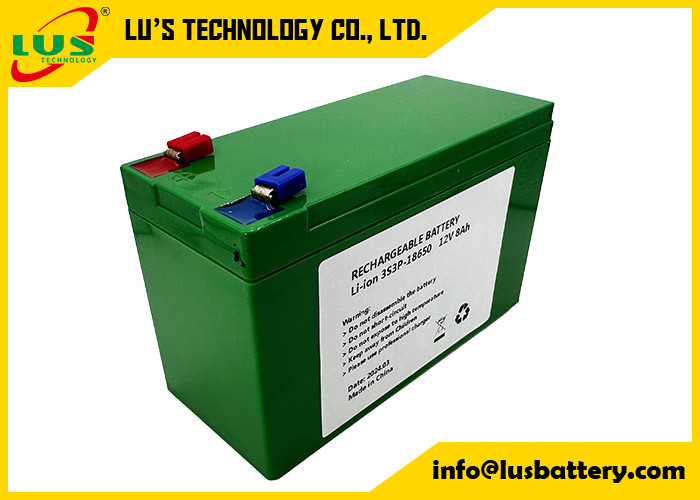

| Battery Designation | This is 12 volt lithium battery pack made with ICR18650 3S3P |
| Nominal Voltage | 12V |
| Nominal Capacity(C/5,23) | 8Ah |
| Max output current(30S) | 21A |
| Max Cont Discharge current | 7A |
| Discharge Cut-off Voltage | 10V |
| Charge method | CCCV |
| End of Charge voltage | 14.6V |
| Float Voltage | 13.8V |
| Recommended charging current | 3.5A |
| Terminals | VRLA6.3mm |
| Dimension | 151x65x95mm |
| Discharge Temperature | -10 to 50 |
| Charge Temperature | 0 to 45 |
| Storage Temperature | -40 to 50 |
| Operating humidity | 5% to 95%, non-condensing |
| Water/dust resistance | IP56 |
Other hot sale 12V lithium ion battery pack
|
Specifications |
12V7Ah |
12V12Ah |
12V20Ah |
|
Nominal Voltage |
12.8V |
12.8V |
12.8V |
|
Nominal Capacity(C/5,23℃) |
7Ah |
12Ah |
20Ah |
|
Max output current(30S) |
21A |
30A |
30A |
|
Max Cont Discharge current |
7A |
12A |
20A |
|
Discharge Cut-off Voltage |
10V |
10V |
10V |
|
End of Charge voltage |
14.6V |
14.6V |
14.6V |
|
Float Voltage |
13.8V |
13.8V |
13.8V |
|
Recommended charging current |
3.5A |
6A |
10A |
|
Terminals |
VRLA6.3mm |
VRLA6.3mm |
M6 |
|
Dimension |
151x65x95mm |
151x98x95mm |
181.5x77x166 |
Made with 18650 cell as follow:
| Model | Capacity | Min. capacity | Continuous discharge | Internal resistance | Certificate |
| 18650F56 | 2200 | 2180mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F8R | 2600 | 2550mAh | 1C(2550mA) | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F9L | 3350 | 3250mAh | 0.5C (1625mA)(-20~5℃) 1.5C (4875mA)(5~50℃) |
≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30 | 3000 | 2900mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30P | 3000 | 2900mAh | 20A 30A |
≤ 18mΩ | ULCBBISUNBSMI |
| 21700F2E | 5000 | 4900mAh | 3.0C(14400mA) |
≤ 25mΩ | ULCBBISUNBSMI |
| 18650F8L | 2600 | 2500mAh | 3C | ≤ 25mΩ(≥ 4.15V) | ULCBBISUNBSMI |
| 18650F8M7 | 2600 | 2500mAh | 3C | ≤ 30mΩ | ULCBBISUNBSMI |
| 18650F8P | 2500 | 2500mAh | 20A 30A |
≤ 18mΩ | ULCBBISUNBSMI |
| 18650F9E | 3500 | 3450mAh | 10000mA | ≤ 40mΩ | ULCBBISUNBSMI |
| 18650F9M | 3200 | 3100mAh | 3.0C(9300mA) | ≤ 40mΩ | ULCBBISUNBSMI |
Function of Lithium Battery
Bluetooth Function
Lithium Battery technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
