Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
CR2477 Sensor Battery
Video
Video

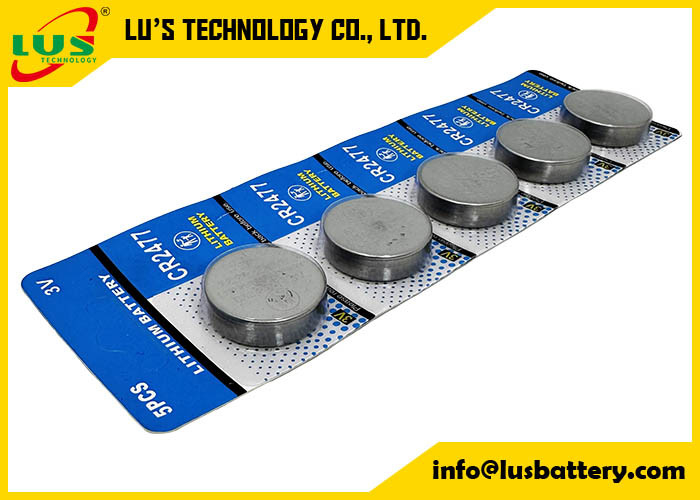

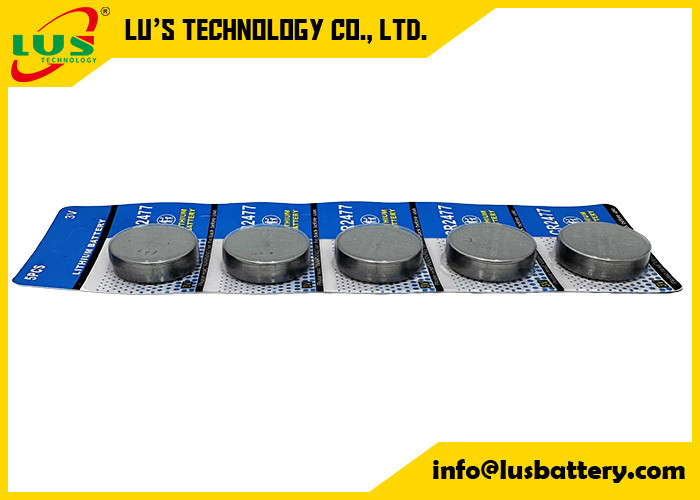

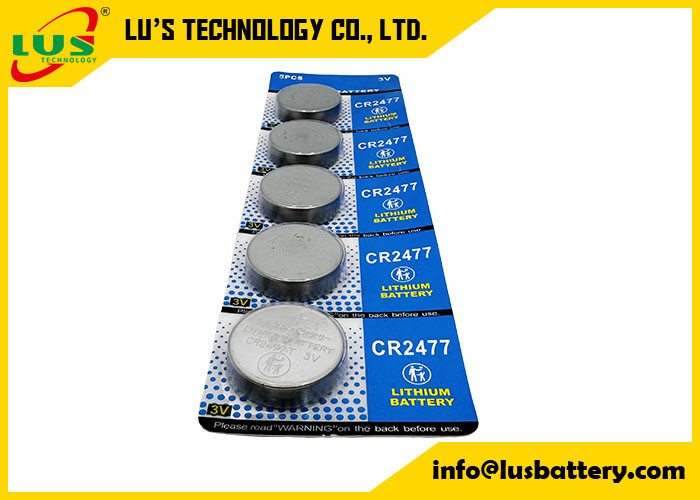

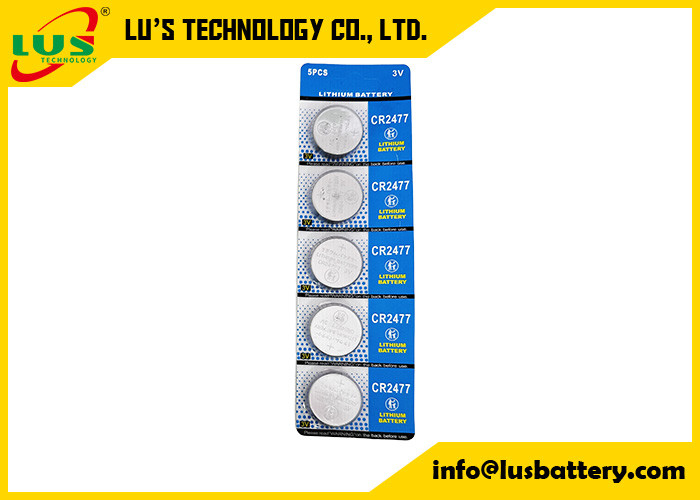

CR2477 3V Lithium Cell Battery replacement for CR2477-T5 Battery 3.0V Lithium PLC batteries 1100mah
CR2477 button batteries are composed of lithium and are specially sized to replace batteries in specific continuous use devices such as keyless entry systems for cars and homes, watches, digital thermometers, and glucometers.
As a lithium powered coin cell, CR2477 sized batteries have certain characteristics that are typically found in lithium cells such as high density, long shelf-lives, and high cell voltage.
CR2477-T5 Battery 3.0V Lithium PLC battery Replacement CR2477-T5 lithium battery for use in programmable logic controllers and industrial computers.
Specification for CR2477 Lithium Button Battery 3.0V:
TABLE Ⅰ:
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Nominal voltage | V | 3.0 | Standard discharge | |
| Nominal capacity | mAh | 1100 | Standard discharge | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.30 | ||
| Storage temperature | ℃ | 0~35 | ||
| Standard weight | g | 9.5 | Unit cell | |
| Service output | Initial | Standard | 500 h | Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum | 480 h | |||
| After 12 months storage | Standard | 475 h | ||
| Minimum | 470 h | |||
TABLE Ⅱ:
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage | ≤5% |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |
CR2477 Lithium Battery Product:
