Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
3V CR2450 Lithium Coin Battery
Video
Video

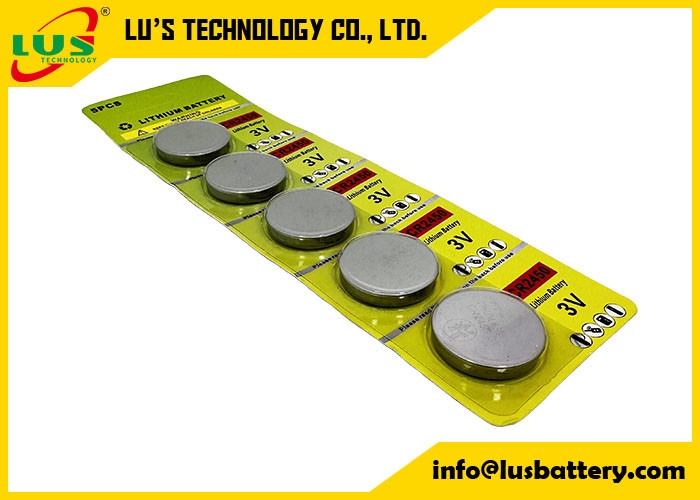

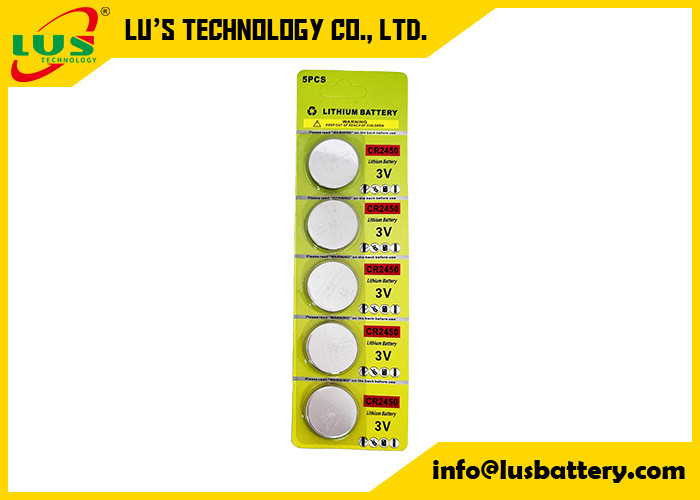

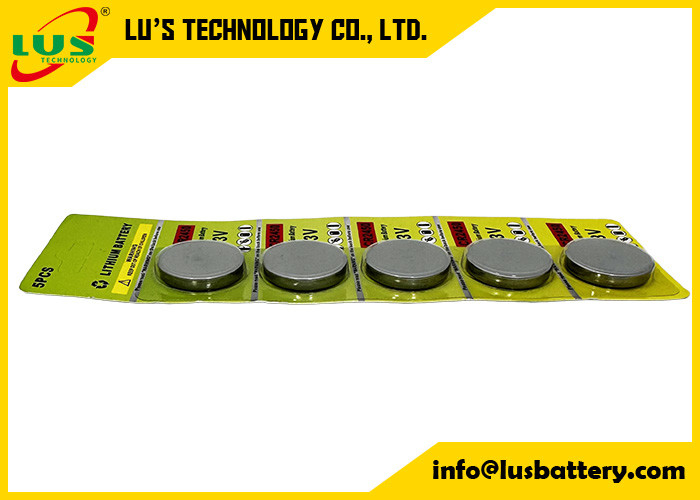

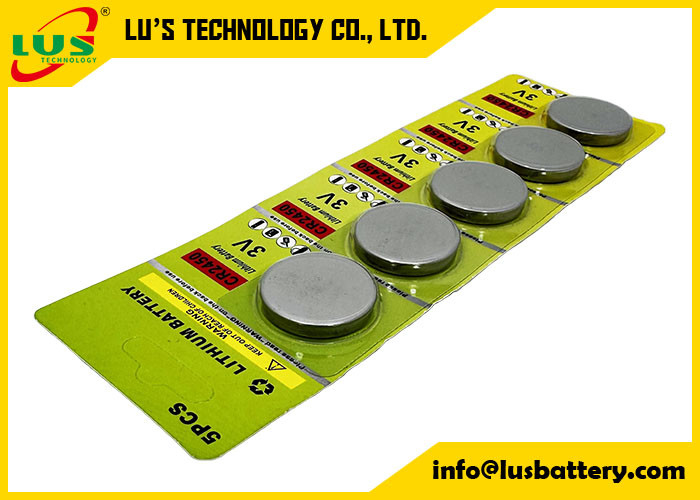

CR2450 Lithium Battery 3v ECR2450 CR2450 Ses-imagotag mriergy3v Replacement for 5029LC DL2450
CR2450 Coin cell with 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable Lithium Manganese Dioxide chemistry, this battery produces 3 Volts of power and holds an impressive 620 mAh charge
3V CR2450 battery is a direct replacement for batteries with codes: DL2450, 2450, CR2450, CR2450N, DL2450 and K2450L.
3V Coin Button Cell CR2450 Li-MnO2 Lithium Manganese Dioxide 24.5mm 2450 Non-rechargeable (Primary) Metal Lithium battery
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 600(single cell) | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 7g | Unit cell |
Coin cell list
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
Main Application
1.RFID lable
2.Electrical scale
2.Camera, Computer
3.Home security devices
4.Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary
5.Memery backup power
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
Welcomed ANY BUTTON CELL BATTERY PACK BY OEM CR2450
