Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
ECR2477 5-pack (NR-CR2477)
Video
Video

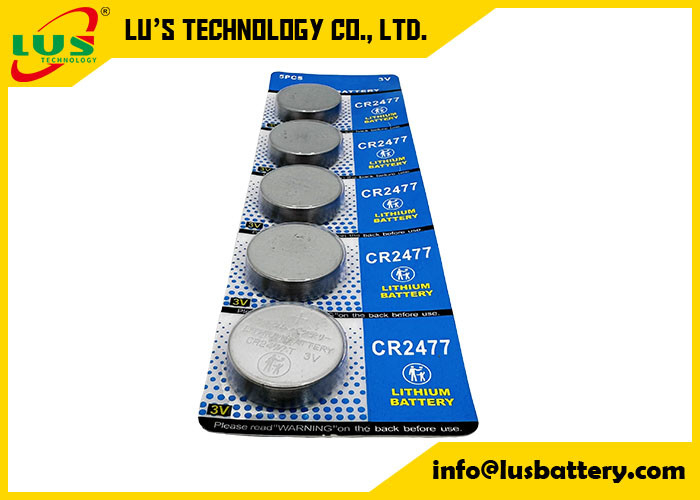

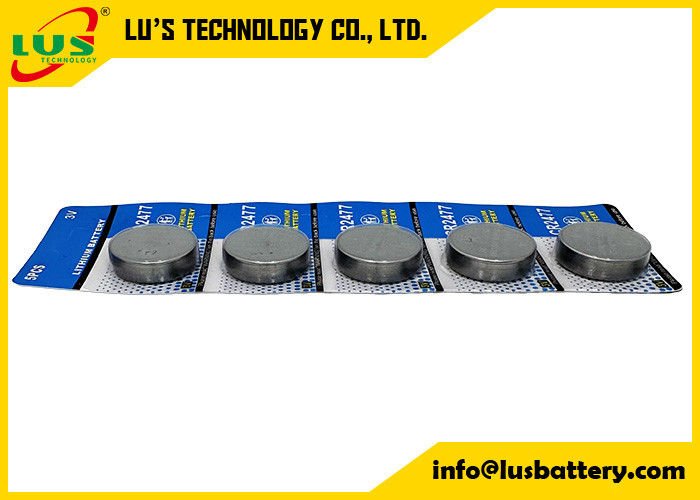

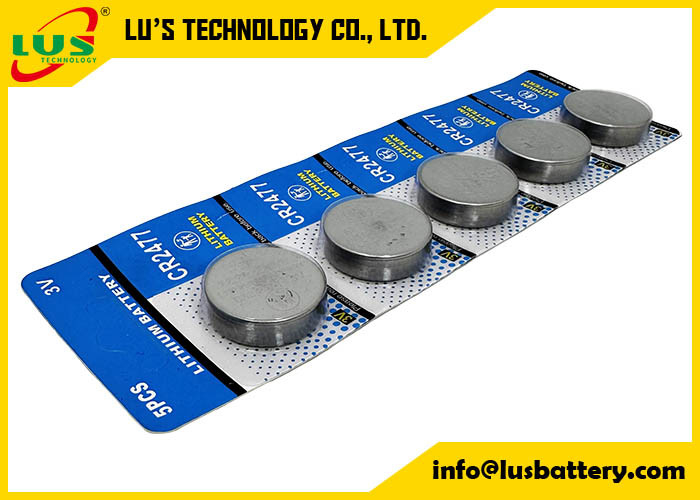

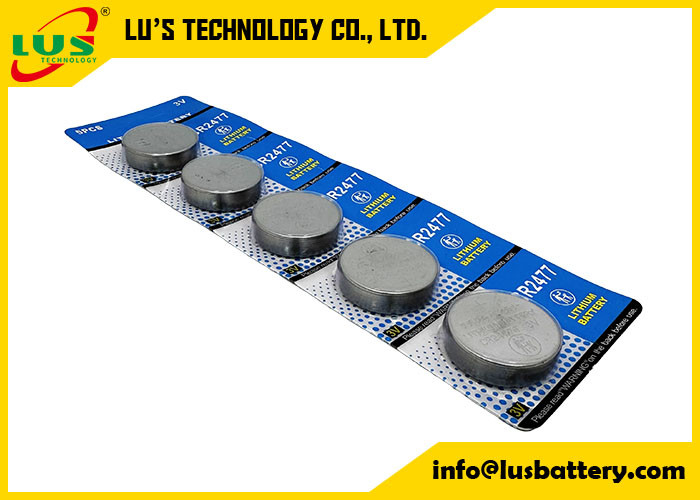

CR2477 3V button Cell Battery 3V 1.1AH CR-2477 BN-CR-2477 1100mah Coin Cell 5-pack (NR-CR2477)
Lithium non-rechargeable 3.0 V CR2477 battery is known as the battery with the highest capacity of all lithium button/coin cell batteries.
CR2477 Equivalents
DL2477, CR2477, ECR2477, BR2477, BR2477-1W, CR2477, KCR2477, and the LM2477 are all common model numbers connected with the CR2477.
They provide a high energy density as well as a constant low voltage supply.
They're popular because of their excellent temperature resistance and storage capacity.
Specification for CR2477 Lithium Button Battery 3.0V:
TABLE Ⅰ:
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Nominal voltage | V | 3.0 | Standard discharge | |
| Nominal capacity | mAh | 1100 | Standard discharge | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.30 | ||
| Storage temperature | ℃ | 0~35 | ||
| Standard weight | g | 9.5 | Unit cell | |
| Service output | Initial | Standard | 500 h | Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum | 480 h | |||
| After 12 months storage | Standard | 475 h | ||
| Minimum | 470 h | |||
TABLE Ⅱ:
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage | ≤5% |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |
CR2477 Lithium Battery Product:
