Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
ECR2450 ESL battery
Video
Video

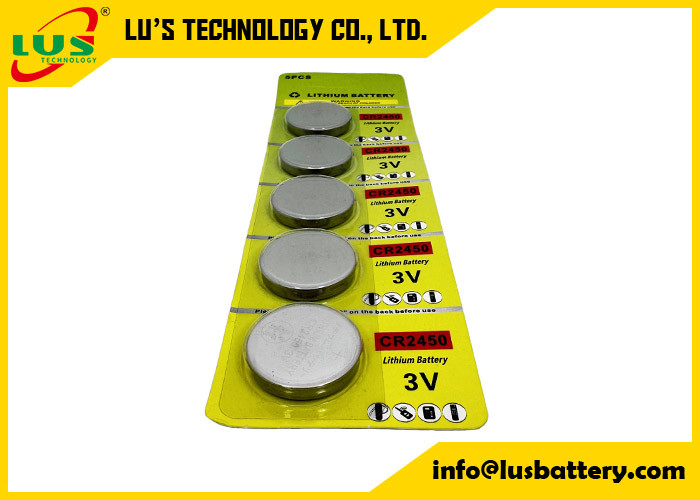

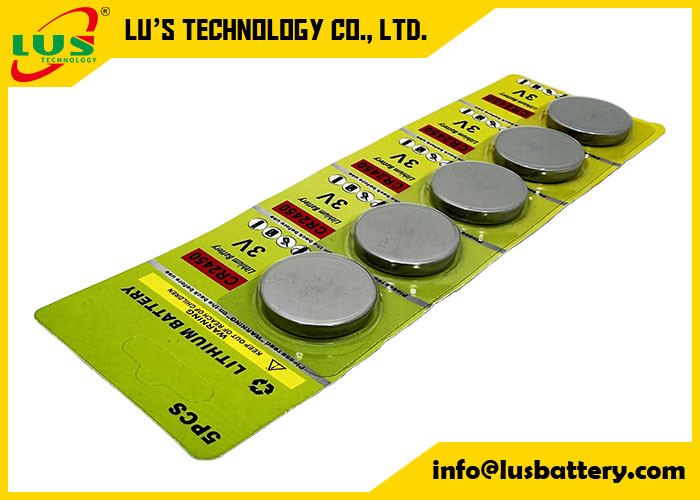

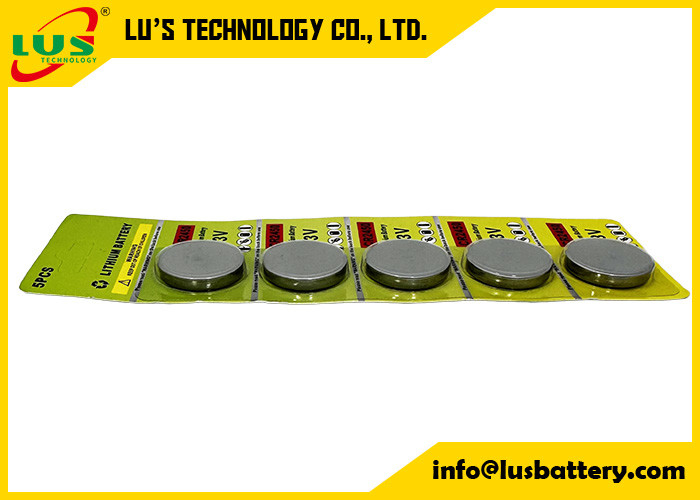

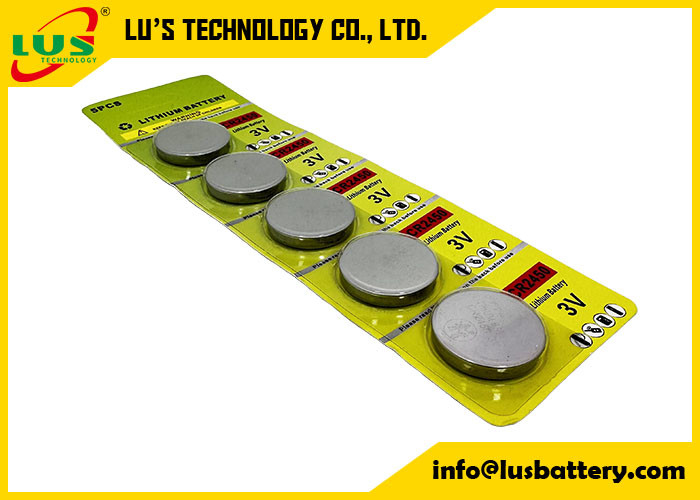

CR2450 Lithium Battery 3v ECR2450 Batteries for ESL lithium coin cell battery CR2450 in Cell Card (5 PCs Pack)
CR2450 Coin Cell Batteries have a dimension of 24.5mm X 5.0mm.
It has a capacity of 600mAh.
The higher capacity allows the battery to deliver a higher level of performance than some of the comparable zinc batteries with a lower capacity.
These batteries offer a very low annual discharge rate of around 2%, giving them the ability to be stored for as many as ten years, without losing very much of their original charge.
The battery's lightweight and compact design makes it perfect for easy storage so that consumers can keep plenty on hand for all of their small electronic devices that use this type of battery.
3V Coin Button Cell CR2450 Li-MnO2 Lithium Manganese Dioxide 24.5mm 2450 Non-rechargeable (Primary) Metal Lithium battery
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 600(single cell) | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 7g | Unit cell |
Coin cell list
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
Main Application
1.RFID lable
2.Electrical scale
2.Camera, Computer
3.Home security devices
4.Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary
5.Memery backup power
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
Welcomed ANY BUTTON CELL BATTERY PACK BY OEM CR2450
