Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
768V Container Energy Storage Solution
Video
Video
768v DC battery system 500v 50kw 100kwh lifepo4 lithium ion battery 768V High voltage solar energy storage system
500kwh to 2mwh energy storage container solutions
Container energy storage system is a medium-sized energy storage system with a relatively high degree of integration.
The system is also an energy storage system device integrating all equipment and an energy storage device integrating energy storage battery system, battery management system, power conversion system, DC cabinet, temperature control system and fire protection system, which can be used in a variety of energy storage application scenarios.

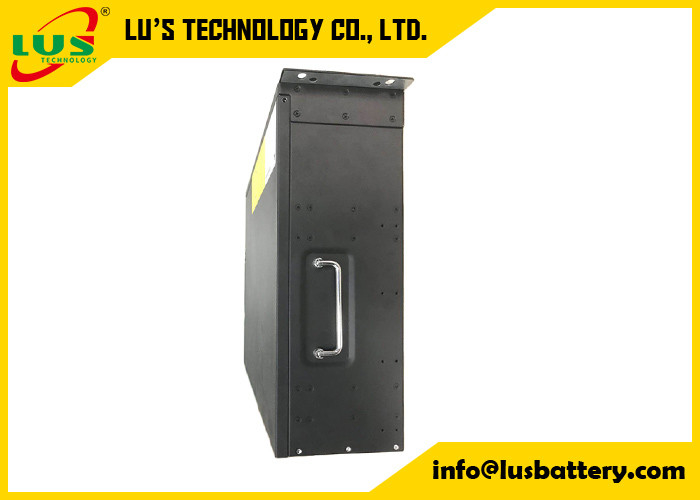

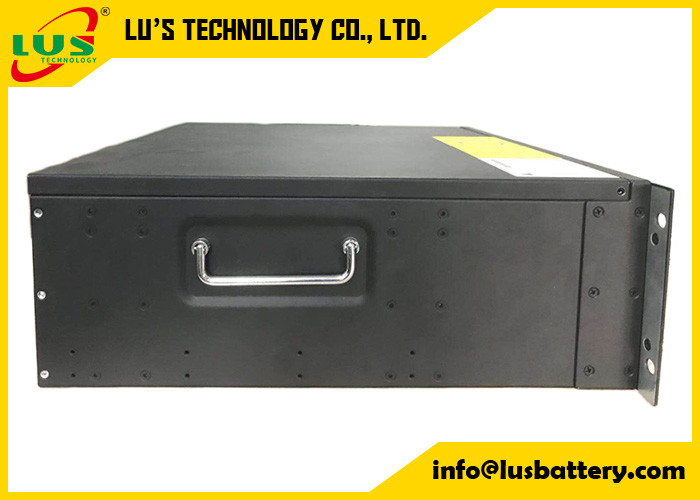

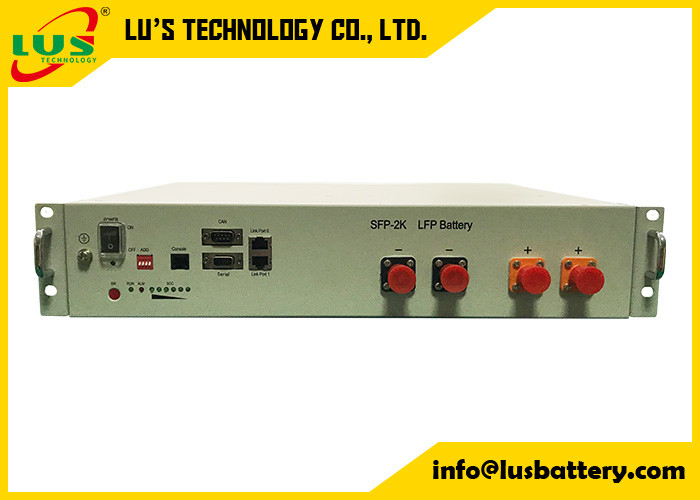

Battery Modules
The battery system is composed of safe, efficient and long-lasting lithium iron phosphate cells that are connected in series, many of which are further connected in series to form a battery bank.
The battery manage system can effectively protect the battery against over-charge, over-discharge and overcurrent. Meanwhile, the balanced management of the cells can ensure a safe, reliable and efficient operation of the whole system.
The system monitors the status of each battery cell and records the historical performance of those cells.
A 12-KW air-conditioning system is equipped to maintain an optimal temperature for prolonging the service life of battery system.
To meet industrial and commercial demand management, peak shaving
To serve as backup power
To conduct peak shaving during high power demand periods and valley filling during off-peak hours
To store power and regulate voltage peak and frequency
To form a microgrid system
Container Energy Storage Solution
| Item | Specification | ||
| Module | Battery system | Container | |
| Rated Voltage(50% SOC,V) | 38.4/102.4 | 768-1331 | 768-1331 |
| Rated Capacity (Ah) | 280/304 | 280/304 | battery system in Parallel |
| System combination | 1P12S | Module in Series | |
| System total Energy(KWh) | 10.7/11.7 | ||
| Voltage range(V) | 30-43.8 | ||
| Max. Continuous discharge current (A) | 0.5C | 0.5C | 0.5C |
| Max. Continuous charge current (A) | 0.5C | 0.5C | 0.5C |
| Max. SOC operating windows | 5% SOC-97%SOC | 5% SOC-97%SOC | 5% SOC-95%SOC will be better |
| Insulation resistance value(MΩ) | Above 30 | 1000Ω/V | 1000Ω/V |
| Dimensions(mm) | 650*400*222 | 10FT/20FT/40FT | |
| Cycle life | 5000 times@80%SOC | 5000 times@80%SOC | 5000 times@80%SOC |
| Thermal management | Fan/liquid cooling | air-conditioning /liquid cooling | air-conditioning /liquid cooling |
Energy Storage Products for Households
| Standard battery configuration | ||||
| Item | wall mounted | Stacked | outdoor-cabinet | |
| Subrack | Voltage | 48V/51.2V | ||
| Capacity | 50Ah/100Ah | |||
| Electric quantity | 2.5KWh/5KWh | |||
| Dimensions | 440*450*178mm | |||
| System | Number of parallel connections | 1-16 P | ||
| Thermal management | Natural air cooling /Heating film | Natural air cooling /Heating film | Air-conditioning | |
| Inverter output | Power: 5KW, 8KW, 10KW; AC: 220V, 380V | |||
Smart Room Lithium battery series products
| HVDC DPS products | |||
| Item | Specification | Remark | |
| Rated Voltage | 230.4V | ||
| Rated Capacity | 15Ah | 25Ah | |
| Charge/Discharge protection voltage | 2.5-3.65V | Single protection voltage | |
| Charge current | 15A | 25A | 1C60S |
| Discharge current | 15A | 25A | 2.5C Continuous |
| Dimensions | L656*W440*H172mm | L450*W460*H264mm | 4U/6U |
| Communication | CAN, 485 | ||
| Charge temperature | 0-50℃ | ||
| Discharge temperature | -20 - 55 ℃ | ||
| System components | Battery pack+HV system+Rectification system+Confluence system | ||
| 512V50AH/100AH | |||
| Item | Specification | Remark | |
| Rated Voltage | 512V | ||
| Rated Capacity | 50AH | 100AH | |
| Charge/Discharge protection voltage | 2.5-3.65V | Single protection voltage | |
| Charge current | 25A | 50A | Power energy solution accepted |
| Discharge current | 50A | 100A | Power energy solution accepted |
| Communication | CAN, 485 | ||
| Charge temperature | 0-50℃ | ||
| Discharge temperature | -20 - 55 ℃ | ||
Function of Lithium Battery
Bluetooth Function
Lithium Battery technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
