Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
CR2450 CMOS battery
Video
Video

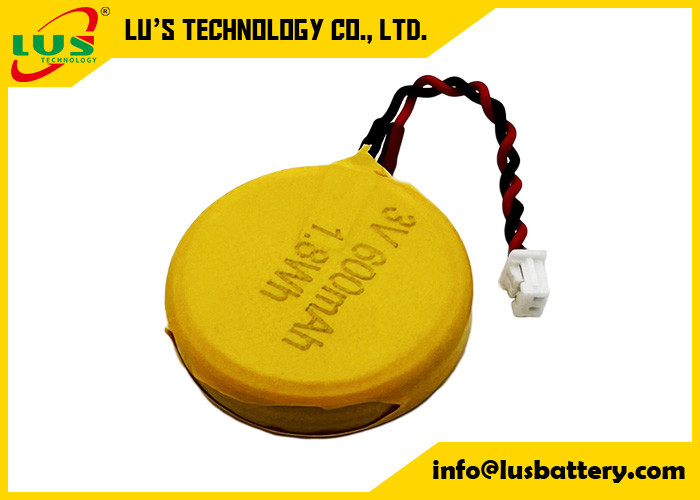

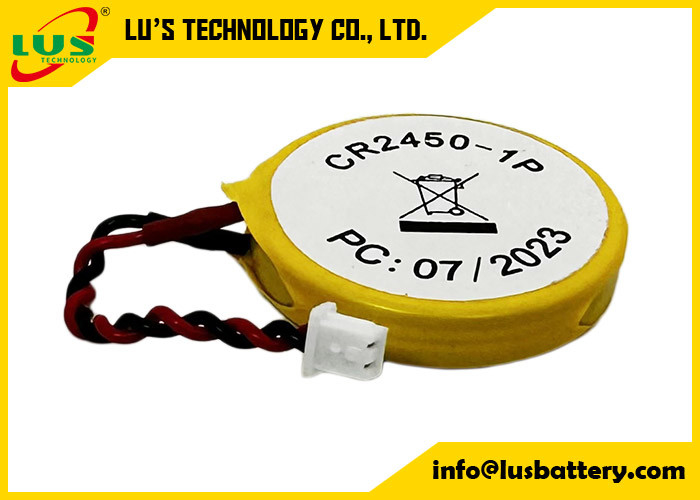

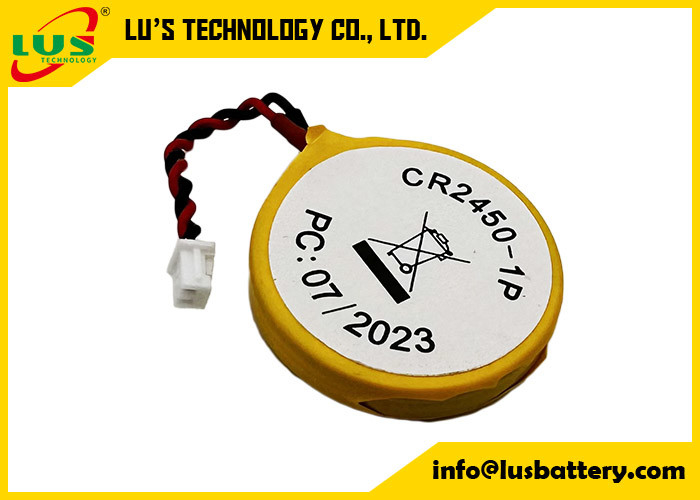

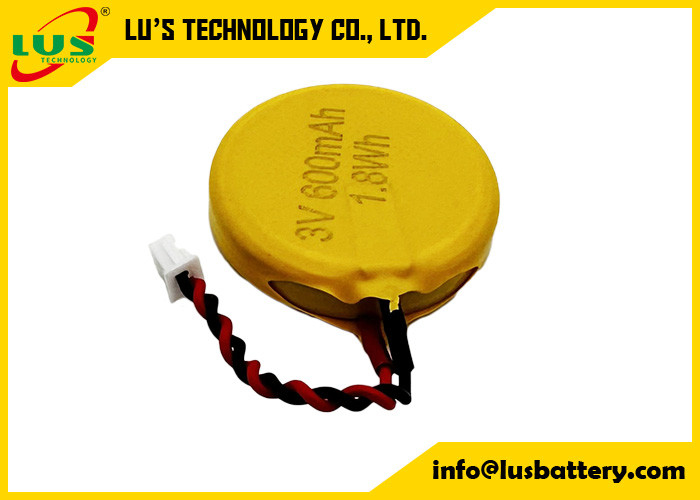

Hi-Capacity Equivalent of IEC CR2450 CMOS Battery CR 2450 BIOS Button Cell With Cable and Connector for PCB
3V LITHIUM BUTTON CELL BATTERY
CMOS Battery Pack CR2450 1P 2P 3P 4P 3v Lithium Button Cell With Wires And Connectors For ESL Tags
3.0V Lithium Button Coin Cell Battery CMOS CR2450 battery with wire connector
3 Volts Lithium Coin Type Battery CR2450 CMOS Battery
CR2450-1P Limno2 Battery Pack with 2P Connector primary li batteries IMOS1p2-A1 3V
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 600(single cell) | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 7g | Unit cell |
1P CR2450 lithum battery pack:
| Model | CR2450-1P |
| Package | 1P |
| Voltage | 3.0v |
| Capacity | 600mah |
| Terminals | 51021 or SHR-2P or any customized |
| Wires | 65mm |
| OEM and ODM | Welcomed |
Coin cell list
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
Main Application
1.RFID lable
2.Electrical scale
2.Camera, Computer
3.Home security devices
4.Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary
5.Memery backup power
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
Welcomed ANY BUTTON CELL BATTERY PACK BY OEM CR2450
