Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
32140FS lithium battery
Video
Video

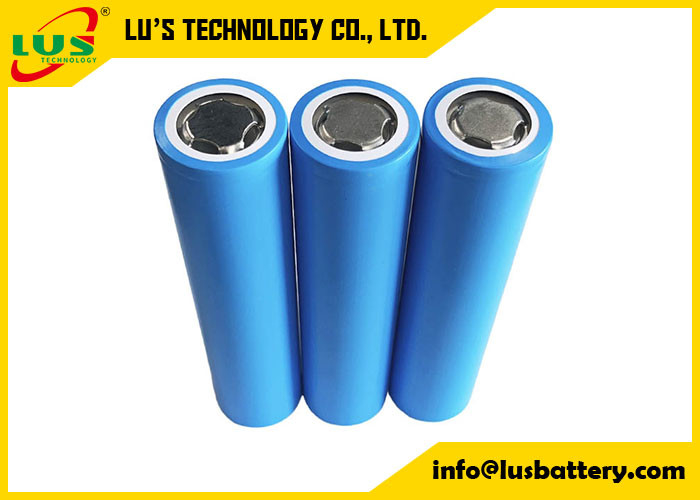

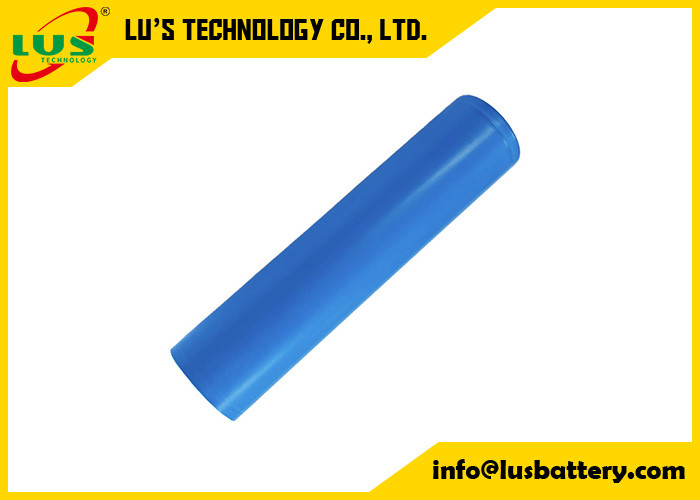

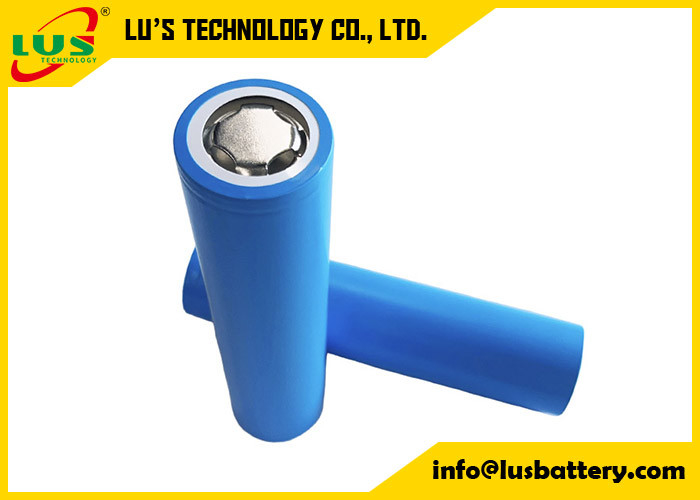

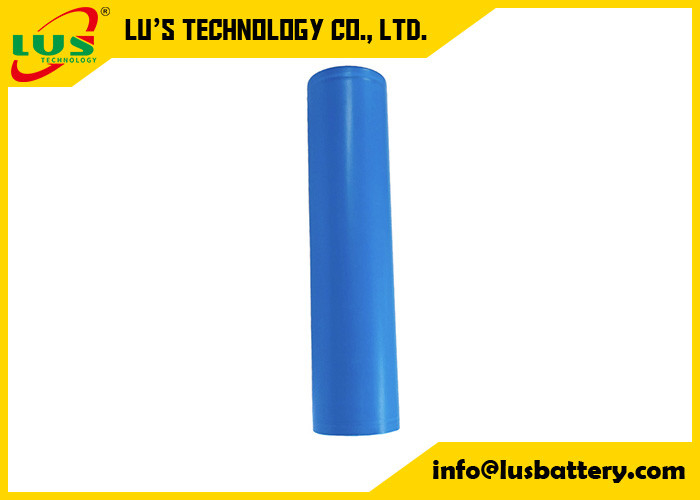

32140 32140FS 3.2V 15Ah 15000mah Deep Cycle 3.2V 15Ah 32140 Lifepo4 Lithium Battery Cell
32140 3.2V 15Ah 48Wh LifePo4 Cylindrical Rechargeable Lithium Battery Cells
3.2v 15Ah LiFePo4 Cell ( CBAK Brand ) - 32140 for Vehicles
Product Parameters
1. Equipment power: 220V 50HZ, 1.5KW, 220V AC input
2. Use air pressure: 0.4-0.8Mpa, when using the air source, there must be a filter device to ensure that the air flow is free of water and impurities.
3. Scope of application: suitable for 32140/33140/34189 or customized battery cell positive pole paste insulating barley paper.
4. Suitable for barley paper width: 100MM
5. Production efficiency: about 60PPM, 2pcs one pouching, 4000pcs per hour.
6. Cushioning power: 0.75KW frequency conversion motor debugging, equipped with buffer power to ensure that the battery core is not damaged.
7. Double robots pick and place the battery.
8. Pasting effect: good consistency, firm bonding and beautiful appearance
Battery Specification:
Battery Type: Lithium Iron Phosphate battery
Model No.: 32140
Volt&Capacity: 3.2V 15Ah
Battery pack Size: 32*140mm
Weight: 270g
Standard Charging Rate: 0.2C
Standard Discharging Rate: 0.2C
Max continuous discharging Rate: 1C
Pulse Discharging Rate 3C
Cut off voltage: 2.0V
Cycle life: 2000 times
Charging Temperature: 0°C- 45°C
Working Temperature: -20°C- 60°C
Storage Temperature: -10°C- 45°C
Applications:
Electronic Boat, Electronic Vehicle, Electronic bike, Electric scooter, LED light, Security Products, Solar&Wind Energy Storage System, Power Tool, etc.
| Item | Specification | Remarks | |
| Typical Capacity | 15500mAh | 0.5C5A discharge | |
| Minimum Capacity | 15000mAh | 0.5C5A discharge | |
| Nominal Voltage | 3.2V | ||
| Discharging Voltage (Min) | 2.0V | ||
| Charging Voltage (Max) | 3.65±0.05V | ||
| Charging Current(Std) | 3000mA | 0.2C5A(0 ~ +45°C) | |
| Discharging Current(Std) | 3000mA | 0.2C5A(-20 ~ +60°C) | |
| Max Charging Current | 15000mA | 1.0C5A(0 ~ +45°C) | |
| Discharging Current(Max/Peak 3s) | 75000mA | 5.0C5A(-20 ~ +60°C) | |
| Max continuous Discharging Current | 45000mA | 3.0C5A(5 ~ +45°C) | |
| Internal Impedance | ≤3.0mW | AC Impedance 1kHz | |
| Cell Weight | 300g | About | |
| Storage temperature range | ＜ 1 Month | -20 ~ +60°C | |
| ＜ 3 Month | -20 ~ +45°C | ||
| ＜12 Month | -20 ~ +25°C | ||
| Charging temperature range | 0 ~ +45°C | ||
| Full Charge | The charger supplies 0.2C5A constant current until battery voltage reaches 3.65V,then be changed at constant voltage of 3.65V while tapering the charge current to less than or equal to 0.01C5A.Charging time is 5.0 hours in all. |
|
| Capacity | ①Within 1 hour after fully charged, discharged at 0.5C5A continuously down to 2.0V. | ³ 100% capacity |
| ②Within 1 hour after fully charged, discharge at 1.0C5A continuously down to 2.0V. | ³ 95% capacity | |
| Cycle life | A battery unit shall be repeated 3500 charge/discharge cycles, charged at CC-CV(0.2C5A-3.65V) for 5 hours, discharged at 0.5C5A continuously down to 2.0V Cut-off Voltage, Measure discharge capacity. |
³ 80% capacity |
| Capacity retention | After fully charged, stored for 28 days at 20°C, then for 1 hour at normal temperature and continuously discharge at 0.2C5A to 2.0V. |
Capacity retention rate ³ 95% |
| Model | Capacity | Min. capacity | Continuous discharge | Internal resistance | Certificate |
| 18650F56 | 2200 | 2180mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F8R | 2600 | 2550mAh | 1C(2550mA) | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F9L | 3350 | 3250mAh | 0.5C (1625mA)(-20~5℃) 1.5C (4875mA)(5~50℃) |
≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30 | 3000 | 2900mAh | 1C | ≤ 60mΩ | ULCBBISUNBSMI |
| 18650F30P | 3000 | 2900mAh | 20A(无切断温度) 30A(切断温度 80℃) |
≤ 18mΩ | ULCBBISUNBSMI |
| 21700F2E | 5000 | 4900mAh | 3.0C(14400mA) (70℃温度切断) |
≤ 25mΩ | ULCBBISUNBSMI |
| 18650F8L | 2600 | 2500mAh | 3C | ≤ 25mΩ(≥ 4.15V) | ULCBBISUNBSMI |
| 18650F8M7 | 2600 | 2500mAh | 3C | ≤ 30mΩ | ULCBBISUNBSMI |
| 18650F8P | 2500 | 2500mAh | 20A(无切断温度) 30A(切断温度 80℃) |
≤ 18mΩ | ULCBBISUNBSMI |
| 18650F9E | 3500 | 3450mAh | 10000mA | ≤ 40mΩ | ULCBBISUNBSMI |
| 18650F9M | 3200 | 3100mAh | 3.0C(9300mA) | ≤ 40mΩ | ULCBBISUNBSMI |
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
