Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
3.2V LiFePo4 lithium battery 18650
Video
Video

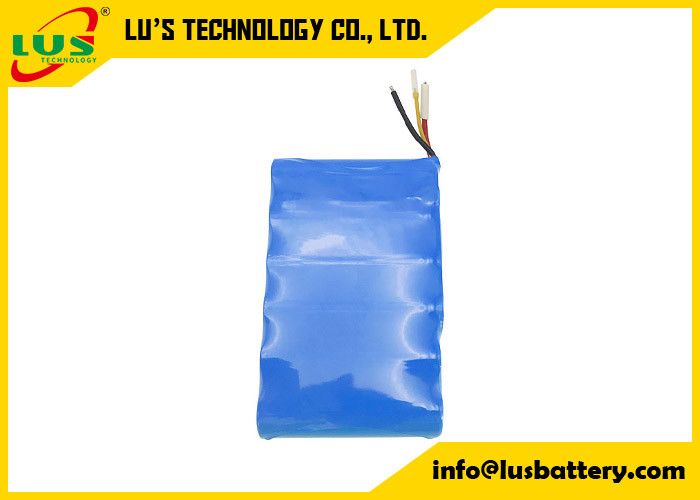

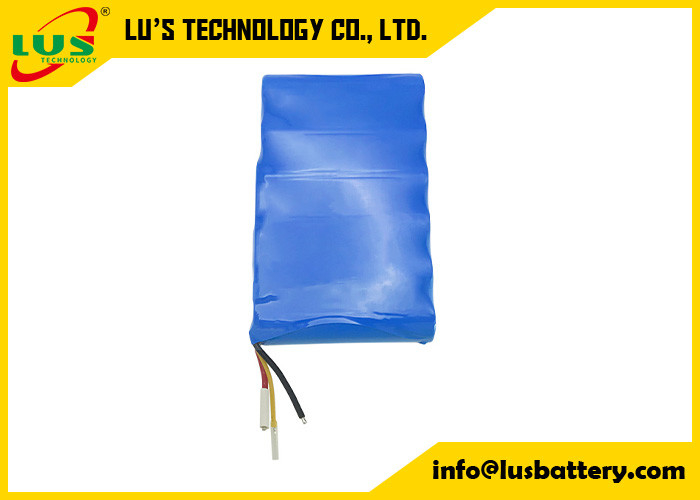

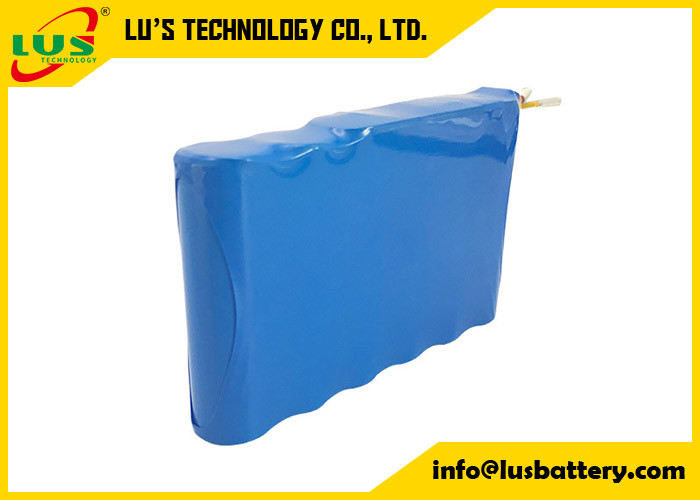

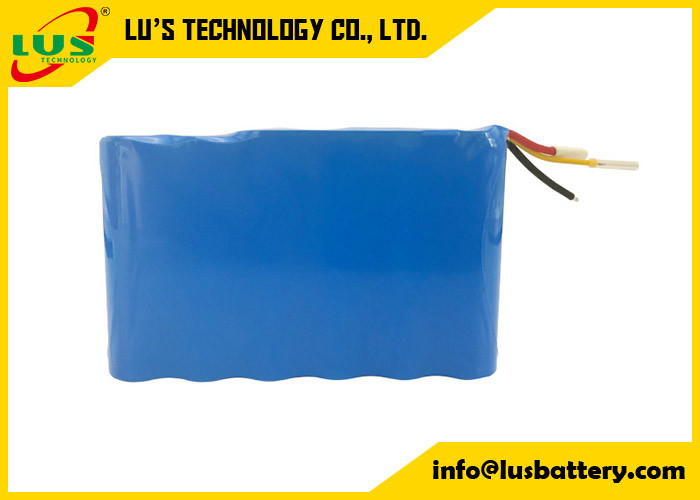

1s6p 38.4wh LiFePO4 Battery 18650 Battery 3.2V 9000mAh LFP Battery Large Capacity Rechargeable for LED Lights
Lithium-ion Battery Pack Factory Customized for Smart Home Rechargeable 18650 Battery 18650 1S6P 3.2V Cylindrical Battery
|
Name |
LiFePo4 battery pack |
|
Nominal capacity |
9000mAh @0.2C |
|
Minimum capacity |
8950Ah @0.2C |
|
Nominal voltage |
3.2V |
|
Max Charging voltage |
3.65 ±0.05 V |
|
Discharge ending voltage |
2.0 ±0.05 V |
|
Recommended cell surface max temperature during charge and discharge |
Charge: 0~45ºC |
|
Battery pack shape |
Depends on your space |
|
BMS protection data |
Customized |
|
Functions customized |
Welcome |
|
Terminals |
Customized |
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
Other hot sale lithium ion battery pack:
Cost Performance
♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.
♦ Safety Cost: stable discharge platform to avoid euipmet exception.
♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.
Outstanding Performance of BMS
Self-Checking
Defect Alerting Function
Capacity (SOC) Calculating
High Voltage Leakage Warning
Charging and Discharging Management
Collection of Voltage, Current and Temperature
Over Current, Over Volt, Temperature Protection
Communication: display / car can bus communication, data transferring
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Community and Family
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt
Other Applications
Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Cells part number
18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700 32140
