Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
3.7V 5200mah 18650
Video
Video

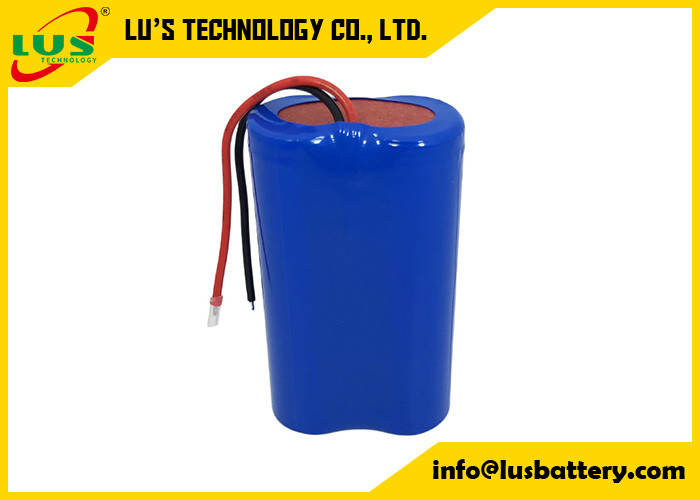

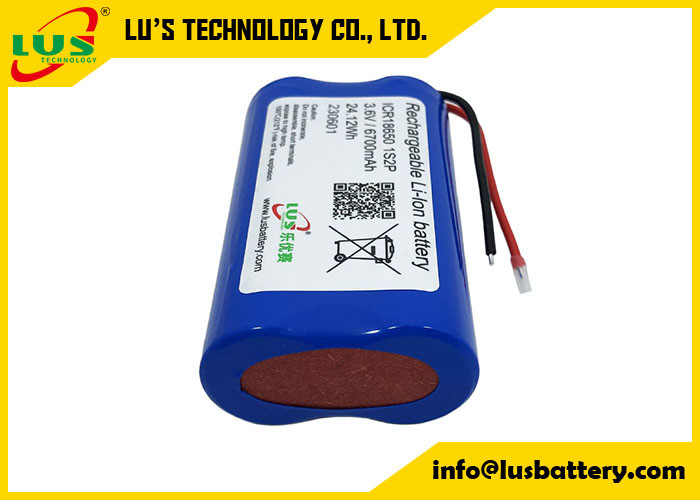

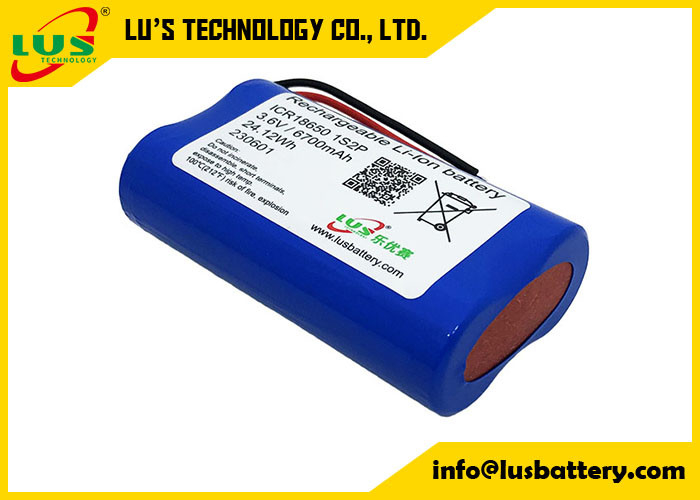

3.7v 18650 5200mah Lithium Battery Customizable Rechargeable 1S2P 3.7V 5200mAh Lithium Battery Pack 18650
18650 battery 5200mah lithium ion cells new rechargeable battery pack
Li-ion 18650 3.7V 5200mAh Stick Rechargeable Battery Module
5200MAH 1S2P 3.7V LI-ION RECHARGEABLE BATTERY WITH PCM
It is constructed using Samsung/LG/BAK/EVE/DMEGC/Panasonic etc 2600mAh lithium-ion cells. These are put together in series and then paralleled up to create this 5200mAh 3.7V 1S2P battery pack.
Model number:18650 1S2P 3.6V 5200 mah
Nominal voltage:3.7V
Nominal capacity:5200mAh
Battery cell:NCR18650/2600mAh/3.6V
Dimension:20*38*68 mm
|
Description |
Rechargeable li ion battery pack 18650 1S2P 3.7v 5200mah |
|
Battery Type |
ICR18650 |
|
Typical Capacity |
5.2Ah |
|
Typical Voltage |
3.7V |
|
End of Charge Voltage |
4.2V |
|
Charge Current |
Standard 1280mA , Max 5000mA |
|
Discharge cut-off voltage |
2.5V |
|
CC Charging Cut-off Current |
100 mA |
|
Operating Temperature(Charge) |
0~45℃ |
|
Operating Temperature(Discharge) |
-20~50℃ |
|
Weight |
100G |
Function of Lithium Battery
Bluetooth Function
Lithium Battery technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
