Lithium-manganese dioxide battery CR2450 Coin cell 3v 1200mah battery pack IMOS1S2P 2450
CR2450 Battery Features and Specifications
CR2450 battery features 24.5 mm (~0.964 inches) diameter and 5.0 mm (~0.197 inches) height and it weighs in 5.7 - 6.3+ grams (0.2 - 0.222+ ounces) range.
CR2450 battery has a negative electrode made of lithium and a positive electrode made of manganese-dioxide; hence their label starts with "CR."
The standard label for lithium 2450 battery with manganese-dioxide positive electrode is CR2450, although other labels are used as well, like 5029LC, DL2450, ECR2450, CR2450N, CR-2450, CR2450EL, CR-2450EL, etc.
Non-rechargeable 3.0 volts lithium CR2430, CR2450, CR2477 batteries feature the same diameter of 24 mm (~0.945 inches), but different height of 3.0, 5.0 and 7.7 mm (~0.118, 0.197 and 0.303 inches) respectively.
Thus, their nominal capacities differ:
- CR2430: 270-290 mAh,
- CR2450: 600-620 mAh,
- CR2477: ~1000 mAh.
Certain devices come with battery compartment battery holders, allowing them to be powered with all three models (or just of two of them) with no battery contact issues.
Since CR2477 features practically the highest nominal capacity of all lithium button cell batteries, devices powered with these batteries will have the longest operating time between batteries needing a replacement.
On the other hand, if you are satisfied with the performance of your device(s) using CR2450, feel free to continue to use them - after all, 'if it is not broken, don't fix it!' :)
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 600(single cell) | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 7g | Unit cell |

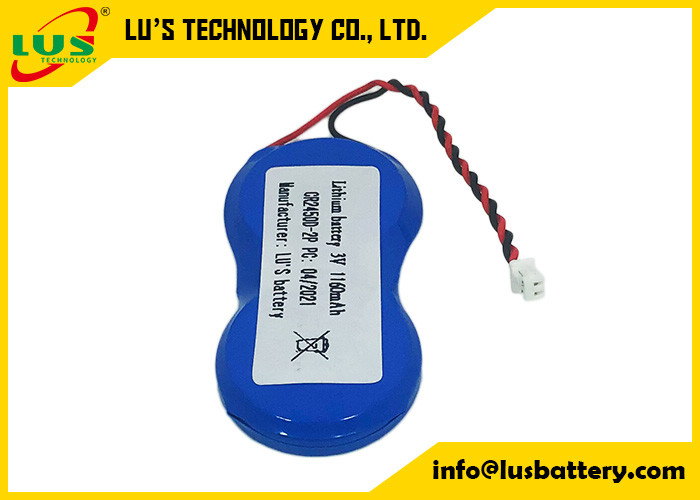

IMOS1p2 battery 2P CR2450 lithum battery pack:
| Model | CR2450-2P |
| Package | 2P |
| Voltage | 3.0v |
| Capacity | 1200mah |
| Terminals | JST 1.0mm SH-2P |
| Wires | 65mm |
| OEM and ODM | Welcomed |
Coin cell list
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
1. RFID lable
2. Electrical scale
2. Camera, Computer
3. Home security devices
4. Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary
5. Memery backup power
CR2450 coin cell battery pack welcome customized, such as CR2450-1P, CR2450-2P, CR2450-3P etc:
