Place of Origin:
China
Brand Name:
OEM
Certification:
Rohs
Model Number:
NIMH 3.6V 250mAh Rechargeable Battery

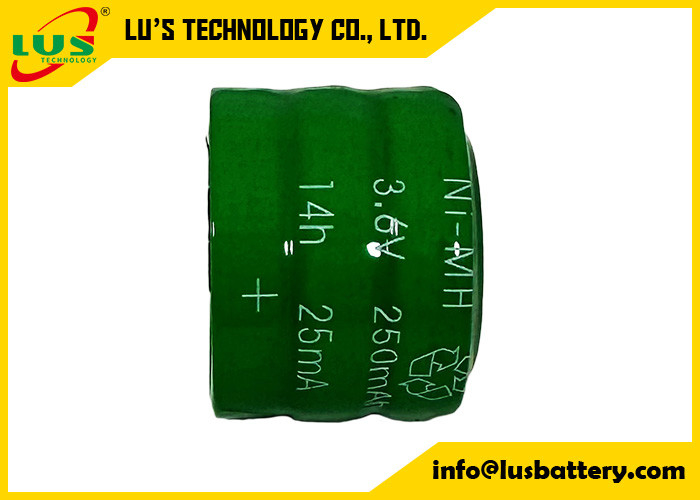

Button cell (rechargeable) 250H NiMH 250 mAh 3.6V Ni-MH Rechargeable Button Cell pack OEM
3.6V 250H Nickel Metal Hydride Rechargeable Battery of 250mAh
NiMH 250H 250mAh button cell rechargeable battery meet the highest quality standards and offer high reliability.
NiMH 250H button cell rechargeable battery pack with PCB pins meet the highest quality standards and offer high reliability.
250H - Rechargeable Button Cell Battery Pack, Ni-MH, 3.6V, 250mAh
3.6V 250mah 250H Rechargeable Ni-MH Button Battery For Solar Lamp Electric Toy Emergency Light Batteries Cell NiMh Button Rechargeable Batteries
NiMh Button rechargeable battery is the is a round cell battery.
And the total height(thickness) is less than the diameter. A type of secondary battery that allows multiple cycles of charging and discharging.
The nimh rechargeable button cells include 20H, 40H, 80H, 110H, 130H, 160H, 180H, 250H, 330H. 9V(different capacity).
General, include 1.2 V, 2.4 V, 3.6 V, 4.8 V, 6.0 V, 7.2 V, 8.4 V(9V), 9.6V, 10.8V, 12V. And, of course, the voltage combination you wish to make.
Note: The above data is for reference only. CONTACT US for the newest detailed information and customized your solutions.
Product data sheet:
| Type | Rechargeable nimh battery |
| Shape | Button cell/Coin cell |
| Votage | 1.2V single cell |
| Battery pack | 3.6 volt |
| Capacity | 250mah |
| Recommended Trickle Charge Current | 2.5~7.5mA |
| Nominal Charge Current | 25mA |
| Normal Charging Time | 14~16h |
| Nominal Discharge Current | 50mA |
| Weight | 30 g |
| Color | Green/Customized |
| Terminals | Tabs/Pins/Customized |
| MOQ | No required |
| OEM and ODM | Welcome |
| Test | Unit | Specification | Conditions | Remarks |
| Capacity | mAh | ≥250 | Standard Charge/discharge |
Up to 3 cycies Are allowed |
| Open Circuit Voltage(OCV) |
Voltage (V) |
≥3.9 | After 1 hour standard Charge |
|
| Internal Impedance |
mΩ | ≤900 | Upon fully charge (1KHz) |
|
| High rate Discharge(0.5C) |
Minute | ≥60 | Standard charge Before discharge |
|
| Discharge Current |
mA | 125 | Maximum continuous Discharge current |
|
| Over charge | No leakage Not explosion |
2.5mA(0.01C) charge one year |
||
| Charge Retention |
mAh | 200 | Standard charge; Storage: 28 days; Standard discharge |
|
| Cycle Life | Cycle | ≥500 | IEC285(1993)4.4.1 | |
| Leakage | No leakage nor Deformation |
Fully charge at 12.5mA, Stand 28 days |
Nimh battery 250H 3.6V cion nimh battery pack
Nimh battery application:
Others: Massager, electric toothbrush, electric shaver
Modality equipment: Mobile DVD, MD, CD, digital radio
Decorative lighting: Solar lamps, torch, emergency light
Electronic toy: Electrocar, model airplane, remote control
Electric tool: Electric drill, electric screw, and electric saw
Communication equipment: Cordless telephone, interphone and VOIP
Solar lamps, torch, emergency light, search light, cordless phones, transceivers , cellular phones and fax
machines, electric shavers, electric toothbrushes, massagers and portable vacuum cleaners, emergency power of
machinery.
Button cell nimh batteries
| Cell model | Voltage(V) | Capacity(mah) | Diameter(mm) | Height(mm) | Charge current(mA) | Discharge current(mA) | Weight(g) | Temperature(°C) |
| 20H | 1.2 | 20 | 11.7±0.1 | 3.2±0.2 | 2 | 4 | 1.5 | 0~45 |
| 40H | 1.2 | 40 | 11.7±0.1 | 5.2±0.2 | 4 | 8 | 1.8 | 0~45 |
| 60H | 1.2 | 60 | 15.3±0.1 | 6.1±0.2 | 6 | 12 | 2 | 0~45 |
| 80H | 1.2 | 80 | 15.3±0.1 | 6.1±0.2 | 8 | 16 | 3.5 | 0~45 |
| 110H | 1.2 | 110 | 15.3±0.1 | 7.7±0.2 | 10 | 20 | 4.5 | 0~45 |
| 160H | 1.2 | 150 | 24.5*14±0.1 | 5.2±0.2 | 15 | 30 | 6 | 0~45 |
| 250H | 1.2 | 250 | 25±0.1 | 6.3±0.2 | 25 | 50 | 10 | 0~45 |
| 330H | 1.2 | 330 | 25±0.1 | 8.4±0.2 | 30 | 60 | 12.5 | 0~45 |
