Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
ER17505-Bobbin Type battery

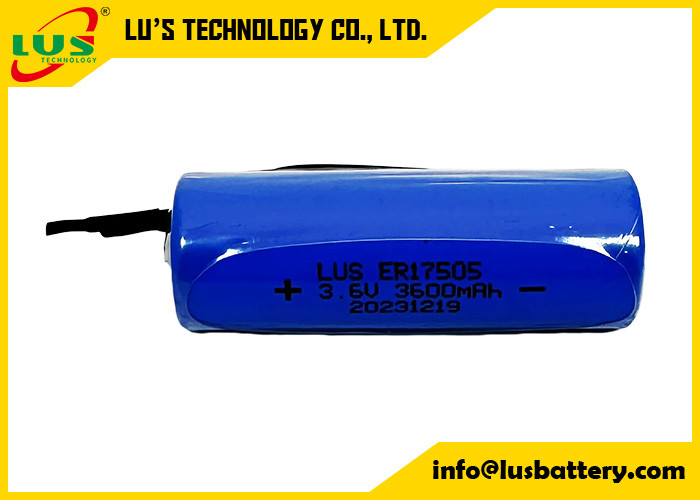

Non-Rechargeable battery 3600mAh 3.6 volt ER17505 Lithium Thionyl Chloride Battery customized terminals
Model: ER17505
Chemistry: Lithium Thionyl Chloride (Li-SoCl2) Battery
Description: Cylindrical Cell size A Bobbin Type Li-SoCl2 Lithium Thionyl Chloride 3.6V Battery ER17505 Non-rechargeable (Primary) 3600 mAh
ER17505, A Size, 3.6V/ 3600 mAh Lithium Thionyl Chloride Battery Bobbin Type
Non-Rechargeable cell battery ER17505
Norminal Capacity: 3600mAh
Norminal Voltage: 3.6 V
Continuous Discharge Current: 70mA
Weight: 24g
Diameter: 17mm
Height: 50.5mm
Operating Temperature: -55 ° C ~ +85 ° C
Shelf Life: 10 years
Self-discharger Rate: ≤1%Diameter: 16.5 mm (0.65 in)
[Replaces]:
LS17500, SB-A01, LS17500, ER17/50, XL-100F etc.
[Compatible]: Ideal For Alarm System/PLC Memory Backup Power/PLC CNC System/Servo Motors/Machine Tools/Instruments/Special Electronic Equipment/Intrusion Sensors/Invisible Fencing/Smart Utility Metering/Emergency Backup/Gas/Water/Electric Meter/Toll RFID/IoT/Movemet Sensor Monitor/Home Security System/Alarm System/PLC/Fleet Monitoring/Data Collection./.AMR Add-ons/Smoke Alarms/Taxi Meter
ER17505 lithium battery
| Name | Lithium Thionyl Chloride Battery |
| Model | ER17505 |
| Size | A |
| Nominal capacity (3mA~2V) | 3.6 Ah |
| Rated voltage | 3.6 V |
| Max constant current of discharge | 120 mA |
| Max discharge current(pulse) | 200 mA |
| Weight | 25 g |
| Operating temperature range | -55℃~+85℃ |
| Storage temperature (recommended) | +30℃ |
Application:
1)With high-operating voltage and stable
2)Performance independent from cell orientation
3)Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year
4)Bobbin structure energy type and best suited for low and discharge current
5)May require depassivation before medium currents
6)Typical values relative to cells stored for one year or less at 30°C
7)Adding the spot, welding wire, welding plug, label are OK
Lithium Battery 3.6v:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
