Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
Pouch Cell Cp123040

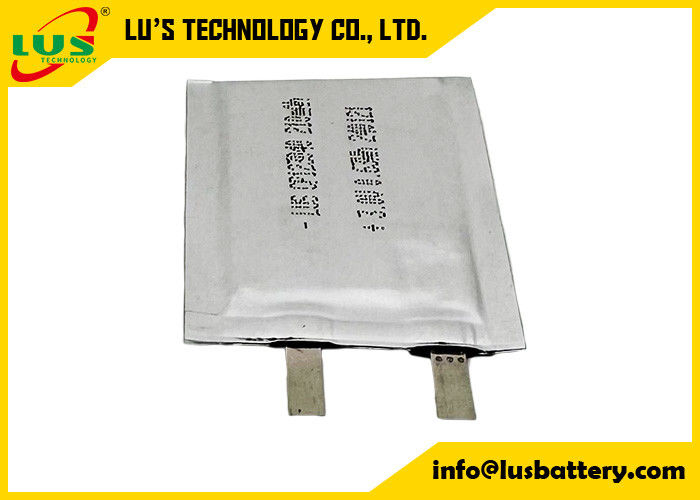

Cp123040 210mAh 3V Limno2 Battery Customization Thin Battery 210mAh 3 volt OEM battery
Advantage of CP123040 Li-MnO2 Pouch Cell
High voltage response, stable during most of the lifetime of the application
Energy density up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
Use WARNING of CP123040 Li-MnO2 Pouch Cell
This CP123040 lithium pouch battery is a non-rechargeable battery.
DO NOT CHARGE THE BATTERY!
Do not use if the battery casing is damaged.
Please discharge the battery for a few minutes with 100mA.
Don't use different models of battery in series.
This is not a high drain battery, please don't use it for any applications with discharging current > 100 mA!
The storage area should be clean, cool (not exceeding +30 Deg C), dry and ventilated.
Specification:
| Name | ultra thin battery |
| Shape | Soft punch cell |
| Material | Limno2 |
| Votage | 3.0V(single cell) |
| Capacity | 210mah |
| Max Continuous Discharge Current | 50mA |
| Max Pulse Discharge Current | 100mA |
| Size | 1.2*30.5*40.5mm Max. single cell |
| Temperature | -40 to +70 |
| Shelf life | 10 years |
| Terminals | Wires/Pins/Tabs/customized |
| OEM and ODM | Welcome |
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
| T(mm) | W(mm) | H(mm) | |||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
| CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
| CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
| CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 |
| CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | ||
| CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 |
| CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 |
| CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 |
| CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 |
| CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 |
| CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 |
| CP203034 | 3V | 275 mAh | 50 mA | 100mA | 2 | 30 | 34 |
| CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 |
| CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 |
| CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 |
| CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 |
| CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | ||
| CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 |
| CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 |
| CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 |
| CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 |
| CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 |
| CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 |
| CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 |
| CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
| CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 |
| CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 |
| CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 |
| CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 |
| CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 |
| CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 |
| CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
| CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
| CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 |
| CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 |
| CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 |
| CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 |
| CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 |
| CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 |
| CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
| CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
| CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 |
| CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 |
| CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 |
| CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | |||
| CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
| CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
| CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
| CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 |
| CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 |
| CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 |
| CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
| CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 |
| CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 |
| CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
| CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
| CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
| CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
| CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
| CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
| CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 |
| CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
| CP9V | 9V | 1200mAh | 150mA | 300mA | |||
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Work Shop:
Quality Control:
Ultra thin battery CP155050 3V lithium battery 650mah thin cell:
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
Send your inquiry directly to us
