CR1/3N or DL1/3N or 2L76 or CR11108 lithium manganese dioxide battery 3 volt 170mah 160mah button battery

CR1/3N or DL1/3N or 2L76 or CR11108 lithium manganese dioxide battery 3 volt 170mah 160mah button battery

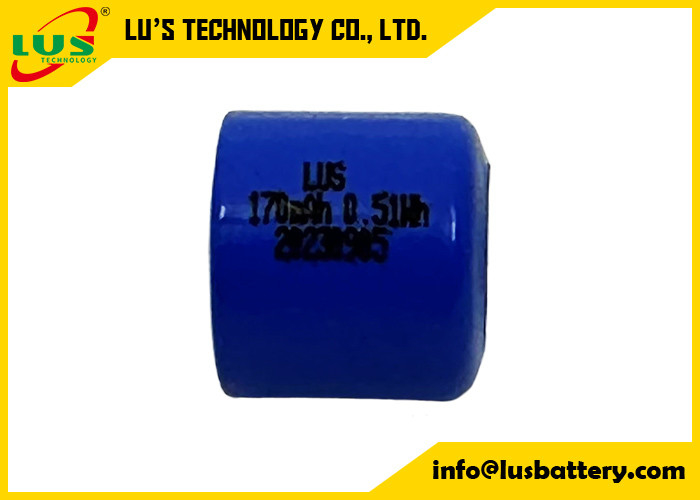

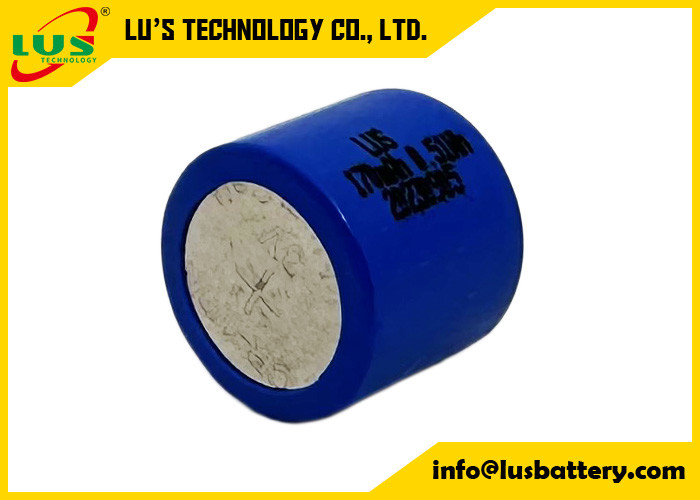

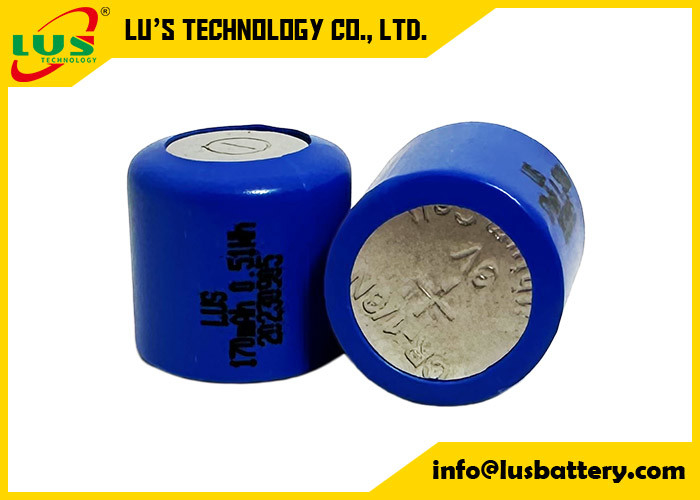

CR1/3N 3V Lithium Battery · Made in China · Type: CR1/3N or DL1/3N or 2L76 or CR11108 · Material: Lithium Metal · Power: 3.0V / 170mAh

lithium manganese dioxide battery has 170 mAh capacity.

high-performing lithium coin CR1/3N are energy-dense and is crafted to deliver long-lasting superior power for your miniature specialty devicesIndustry

High Cell Capacity & High Energy.

High voltage response, stable during most of the lifetime of the application.

Reliable Performance.Lithium/Manganese Dioxide Battery DL1/3N (CR1/3N).
CR-1/3V, DL1/3N Lithium Battery.

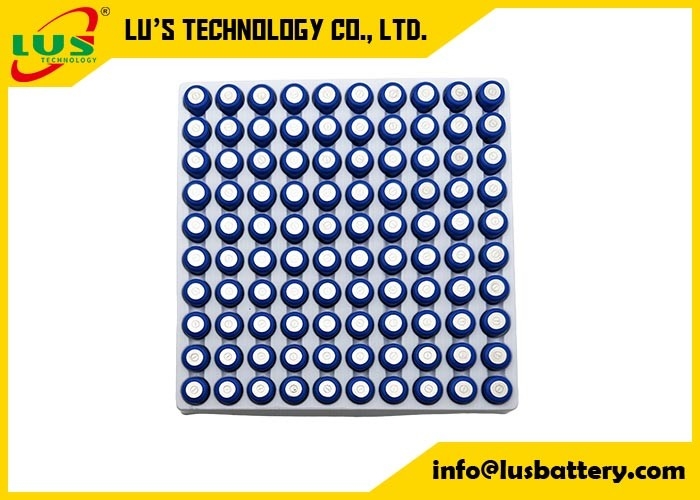

This lithium/manganese dioxide battery represent one of the latest advances in primary battery technology.CR13N batteries in bulk packs, consumers and commercial users can save hundreds of pounds over the long term.

Lithium Battery CR1/3N / CR11108 / 2L76
The high-quality battery is the ideal energy source for a great variety of consumers.

From pocket calculators and scales through clocks and car keys CR1/3 3V Lithium Battery 2L76 K58L DL1/3N CR1/3N. Whether you're looking for replacement batteries for your smartwatch, dog collar, camera etc.Lithium Batteries-CR 1/3N Lithium Battery Replacements and Equivalents.

Technical parameters

CR1/3N batteries drawing:

Key features:

High and stable operating voltage

Superior drain capability

Low self-discharge rate (less than 3% after 1year of storage at +20 )

Optional stainless steel container for low magnetic and nickle plated steelcontainer for more

safe design

Hermetic glass-to-metal sealing

Notch technology for safety vent is recommended

PTC for finished product is optional

1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.

2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)

3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.

4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.

5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .

6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.

7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte

8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.

                                                          Application
