Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
502030-250mah lithium battery
Video
Video
Video

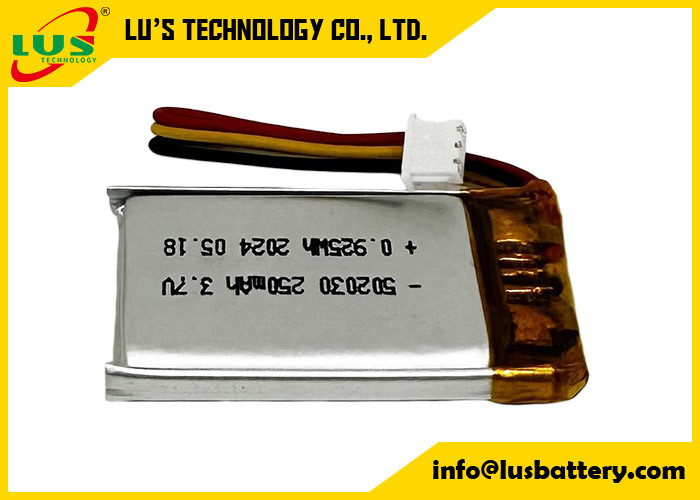

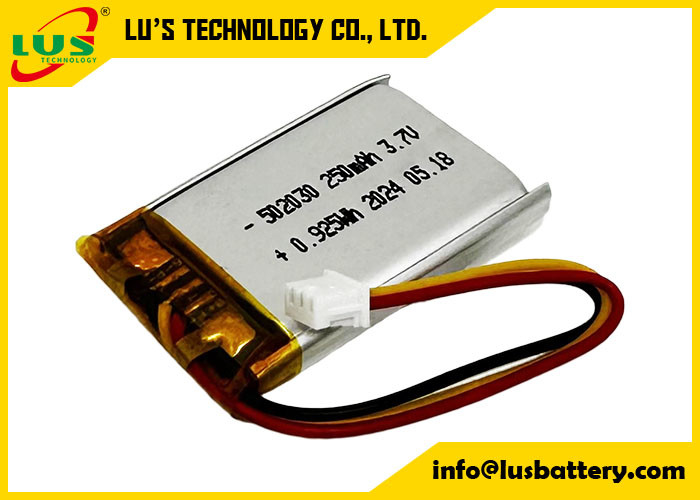

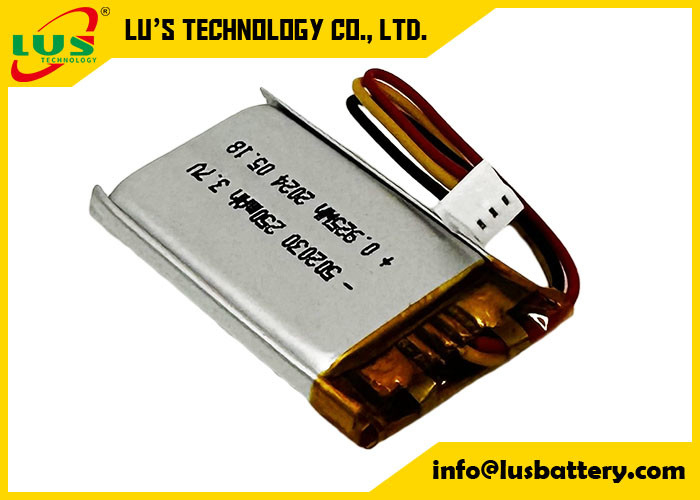

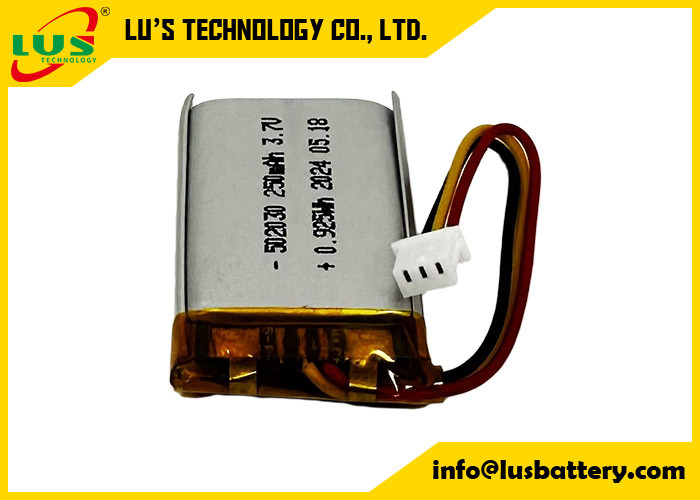

3.7V 250mAh LP502030 Lipo rechargeable batteries 250mah flat Lithium-ion polymer battery
Lithium Polymer Battery 3.7V 250mAh 502030 Lipo Rechargeable Battery Pack
LP 502030 3.7v rechargeable battery
Nominal Capacity & Voltage: 250 mAh, 3.7 V
Standard Charge Method: CC/CV (CV end current 5mA)
Standard Charge current: 0.2C (50mA)
Charge Max Voltage: 4.200±0.020V
Standard Discharge Current: of 0.2C (50mA)
Cut-off Voltage: 2.750±0.005 V
Maximum Charge Current: 1C (250mA)
Maximum Discharge Current: 2C (500 mA)
Charge Temperature: 0 ~ 45 ℃
Discharge Temperature: -20 ~ +60 ℃
Storage Temperature: -20 ~ +25 ℃
Weight: 6g
BASIC INFO—Voltage: 3.7V; Typical capacity: 250mAh, Min capacity: 230mAh; Weight: approximate 6g; Size: 20.5 x 32 x 5.3mm
RELIABLE PERFORMANCE—No leaking, excellent cost performance and long cycle life. PCM protection function: over charge, over discharge, over current, short circuit protection, over temperature protection.
STORAGE & APPLICATION—Keep the cells in 40%-60% charged state during long period storage. We recommend to charge the battery every 3 months after receipt of the battery and maintain the voltage 3.7-4.0V. Store battery in cool and dry place.
SUITABLE for Bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi smart home systems, PDA and digital cameras, GPS, monitoring units, e-books, tracking devices, blood oxygen tracking equipment, pulse monitors, wireless, IoT.
| Battery Type | Rechargeable lithium polymer battery |
| Part number | LP502030 |
| Voltage | 3.7 volt |
| Capacity | 250 mah |
| Curent | Min. 0.125A to Max 0.25A |
| Weight | 6g |
| Terminals | Pins/wires or connector depends on your needed |
| OEM and ODM | very welcomed |
Communications equipment: Interphone, PHS phone, Bluetooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys
Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.
More product from LUS battery:
3.7V lithium polymer battery list:
| Model | Capacity | Model | Capacity |
| 102050 | 1000 | 602248 | 650 |
| 102540 | 1100 | 603030 | 550 |
| 103030 | 900 | 603040 | 750 |
| 103035 | 1000 | 603048 | 970 |
| 103040 | 1200 | 603443 | 850 |
| 103048 | 1500 | 603450 | 1200 |
| 103443 | 1500 | 604050 | 1500 |
| 103450 | 1800 | 605080 | 3000 |
| 103450 | 2000 | 606090 | 4000 |
| 103665 | 3000 | 626090 | 5000 |
| 104050 | 2500 | 654060 | 2000 |
| 123555 | 2500 | 702831 | 630 |
| 124065 | 4000 | 703035 | 750 |
| 303450 | 500 | 703040 | 800 |
| 307095 | 2500 | 703048 | 1100 |
| 317090 | 2200 | 703450 | 1300 |
| 327090 | 2000 | 703450 | 1350 |
| 327090 | 2200 | 704268 | 2200 |
| 337093 | 2500 | 752040 | 600 |
| 357095 | 2800 | 755060 | 3000 |
| 383450 | 750 | 755590 | 5000 |
| 402030 | 180/200 | 802025 | 350 |
| 402247 | 450 | 802035 | 500 |
| 454854 | 1500 | 802048 | 800 |
| 454261 | 1500 | 802530 | 550/600 |
| 493964 | 1500 | 802535 | 750 |
| 502030 | 200/250 | 802540 | 850 |
| 502535 | 420 | 803030 | 740 |
| 503035 | 580 | 803035 | 800 |
| 503040 | 600 | 803040 | 1000 |
| 503048 | 730 | 803048 | 1200 |
| 503048 | 750 | 803160 | 1800 |
| 503759 | 1200 | 803440 | 1200 |
| 505050 | 1500 | 803450 | 1500 |
| 505060 | 2000 | 804050 | 2000 |
| 505068 | 2000 | 804558 | 2500 |
| 505573 | 2000 | 805080 | 4000 |
| 505573 | 2500 | 902030 | 500 |
| 523450 | 1000 | 902535 | 800 |
| 602030 | 300 | 902530 | 700 |
| 602530 | 450 | 903035 | 1000 |
| 602535 | 550 | 903048 | 1500 |
| 602040 | 450 | 903450 | 1800 |
| 974058 | 3000 | 903659 | 2500 |
