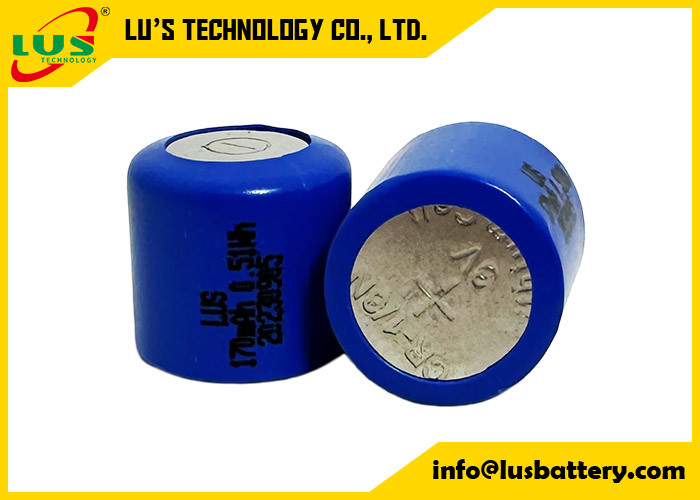

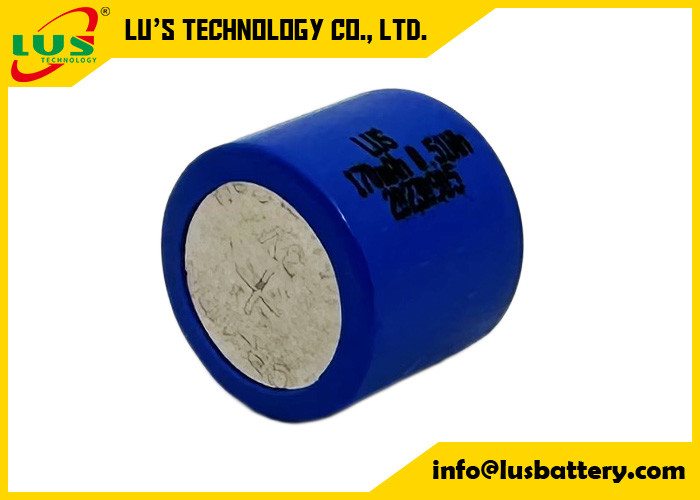

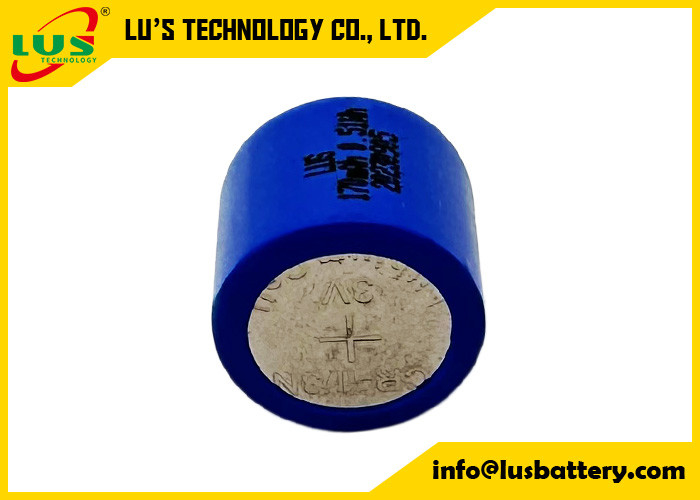

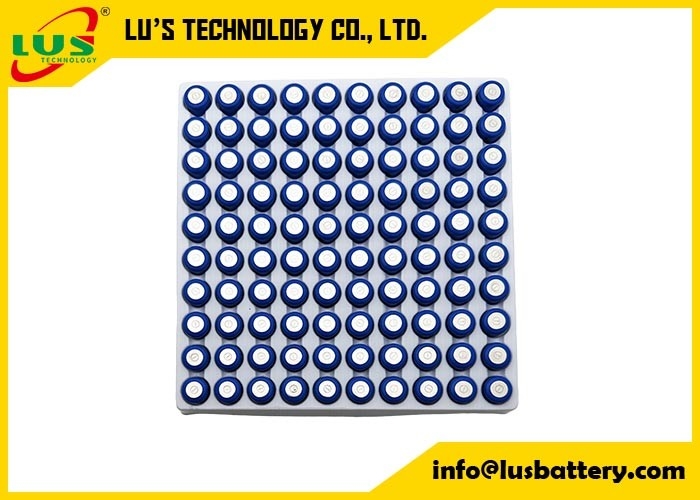

Lithium/Manganese Dioxide Battery DL1/3N CR1/3N DL1/3N 2L76 CR11108 Lithium Metal battery

CR1/3N 3V Lithium Battery for Leica M6, MP, M7 Lithium 1/3N Battery

DOGWATCH 3V 160MAH LITHIUM BATTERY. REPLACES: DL1/3N, CR1/3N, 2L76, 5018LC, K58L. CR1/3N Battery

Lithium 3V CR-1/3V, DL1/3N Lithium Battery This lithium/manganese dioxide battery represent one of the latest advances in primary battery technology.

CR-1-3N – CR-1/3N Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary) from LUS BATTERY

The CR 1/3N 3 battery is a Lithium battery with 3V voltage. This small battery is composed of lithium and manganese dioxide, which represent one of the latest advances in primary battery technology.

For applications with a high current pulse (e.g. camera flash) and continuous drain, we offers high rate lithium batteries.

This chemistry provides high energy density and excellent rate capability; wide operating temperature range and superior low temperature performance; excellent shelf life with up to a ten year freshness guarantee.

This 3V battery is widely used in cameras, toys, pet containment systems, and any personal electronics that use CR-1/3N lithium batteries. This battery is used in the “DogWatch” brand Dog Collar model #AR300M, model #R6, and model #R7

This battery is a direct replacement for the 1/3N battery for the Aimpoint CompM and CompC series of red dot sights.

Equivalent Batteries Cross Reference:

Ray-O-Vac 867, Energizer 2L76BP, 2L76-BP, Dantona Comp 15, Duracell DL1/3N, NL1/3N, Energizer LR1/3N, Eveready 2L76, Innotek M041101, Kodak K58L, National HM-N, NR-52, NEDA 5008L, 5008LC, Nikon F-1, Sony CR1/3N, Varta CR1/3N, LaserMax LMS-1/3N, LaserMax LMS-1/3N 5PK, LaserMax LMS-UNI-G, Duracell DL1/3N, DL-1/3N, DL1/3NB, 1/3N, Energizer 2L76BP, 2L76, IEC CR11108, Rayovac 867, Sanyo CR-1/3N

Technical parameters

CR1/3N batteries drawing:

Key features:

High and stable operating voltage

Superior drain capability

Low self-discharge rate (less than 3% after 1year of storage at +20 )

Optional stainless steel container for low magnetic and nickle plated steelcontainer for more

safe design

Hermetic glass-to-metal sealing

Notch technology for safety vent is recommended

PTC for finished product is optional

1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.

2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)

3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.

4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.

5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .

6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.

7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte

8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.

                                                          Application
