Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP063643

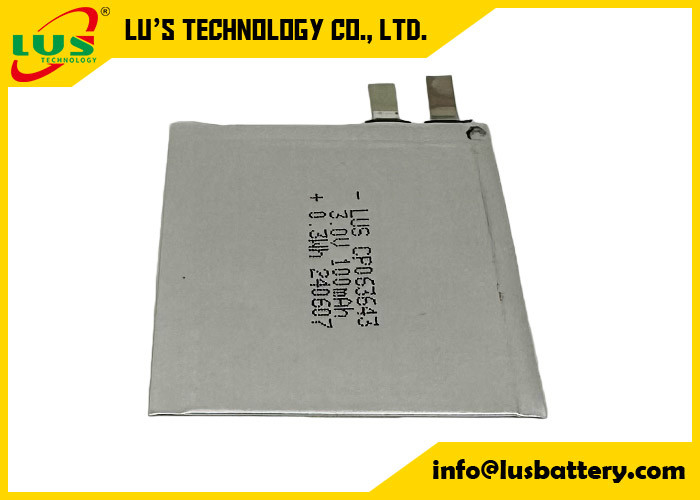

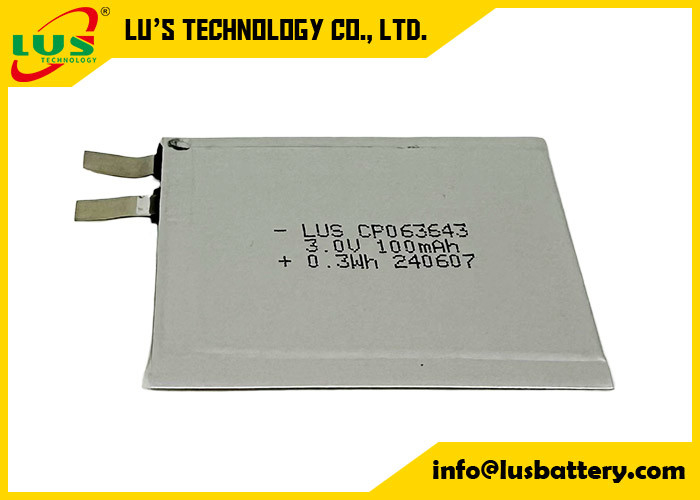

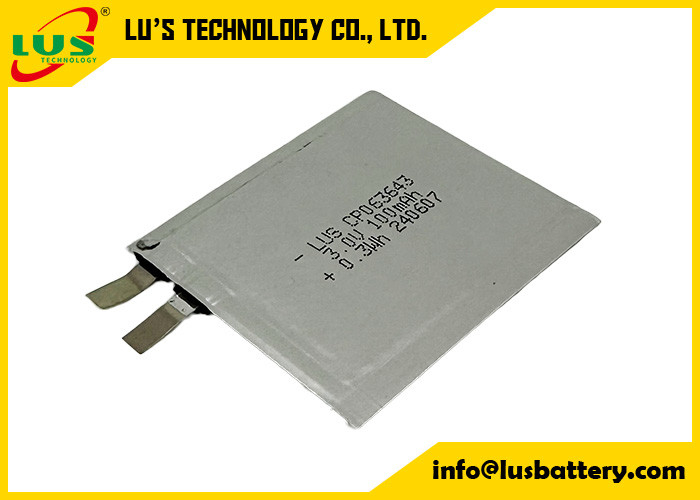

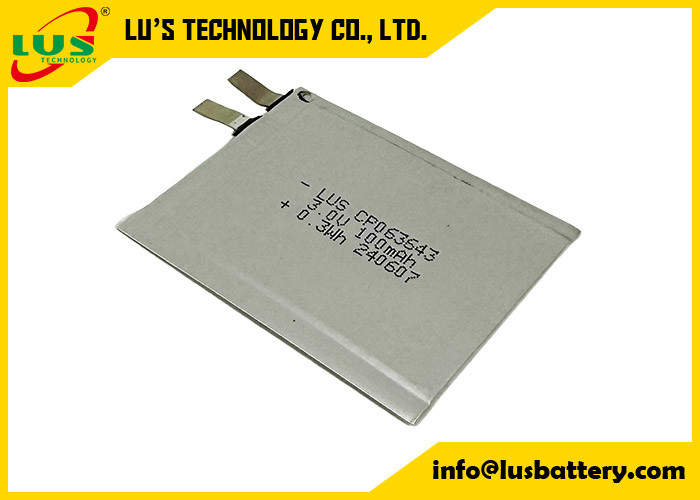

prismatic battery 3.0 volt 100mah flexible ultra thin cell battery CP063643 Cusotmized
Name: soft-packed Li-MnO2 Battery
Model: CP063643
Assembly Way: single cell the inflexed fold and solder
Specification:
| Name | Thin flim battery Limno2 primary cell |
| Type | Ultra thin batteries |
| Model number | CP063643 |
| Voltage | 3.0 Volt |
| Capactiy | 100mah |
| Size | Max. 0.65*38*45mm |
| Max Continuous Discharge Current | 30mA |
| Max Pulse Discharge Current | 50mA |
| Operating temperature | -40 ----70 |
| Samples | Free |
| OEM and ODM | Welcome |
Characteristics of LiMNO2 flexible packaging battery:
1. Working voltage of 2.5 ~ 3.0 V, one battery can replace two dry batteries
2. Energy density of 450 Wh/kg, under the same weight, the capacity is 50% higher than the steel shell li-ion battery,
3. Wide Operating Temperature Range
It can be used at -40 ~ 70 ° C
4. The self-discharge rate of 4 years is less than 1.5% , with a storage life of up to 10 years After long-time storage, it has good voltage response ability,
5. Flexible Design
It has ultra-thin shape, its thinnest thickness can be up to 0.45 mm, to meet the thin and light shape requirements of modern electronic products;
6. Support customized battery.
Shape size, capacity and load performance can be customized to meet customer needs;
7. Great safety.
It is currently a relatively good safety and reliability of lithium metal batteries.
8. No voltage delay,NO passivation.
Thin cell list:
| Model | Maximum Appearance dimensions (mm) | Weight (g) |
Rated voltage (v) |
Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45×29×22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 400 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.
Widely used for :
1. Nonstop charging system;
2. Intelligent parking lot ;
3. Container identification;
4. Vehicle charge check;
5. Mine personnel identification;
6. Automated railcar identification management;
7. Automated road charge management;
8. Automated voyage passengers luggage identification transport management;
9. Vehicle entry and exit control;
10.Campus all-purpose card;
11.Repasting card and public transportation card;
12.Associator card, drive license card, and health(medical equipment)card;
13.Animal identification(raising cattle, sheep, pigeon,etc);
14.Automate management of logistic and storage;
15.Automobile remote control lock;
16.Intellectualized door etc.
Similar ultra thin bateries:
