Place of Origin:
China
Brand Name:
OEM
Certification:
CE/UL
Model Number:
15V 1A AC Power Adapter
Video
Video
Video

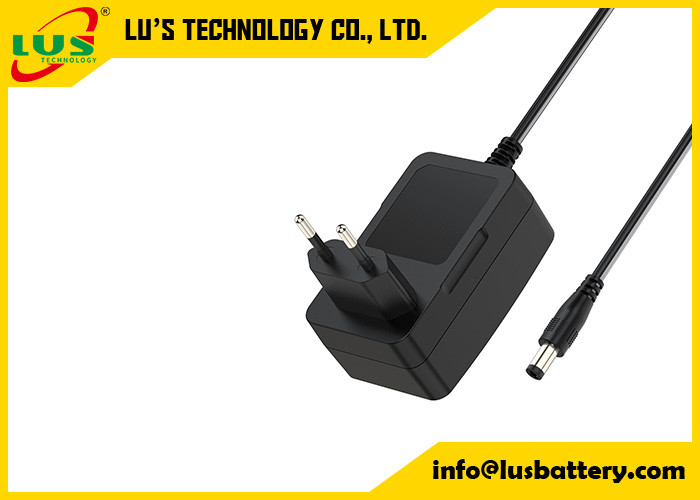

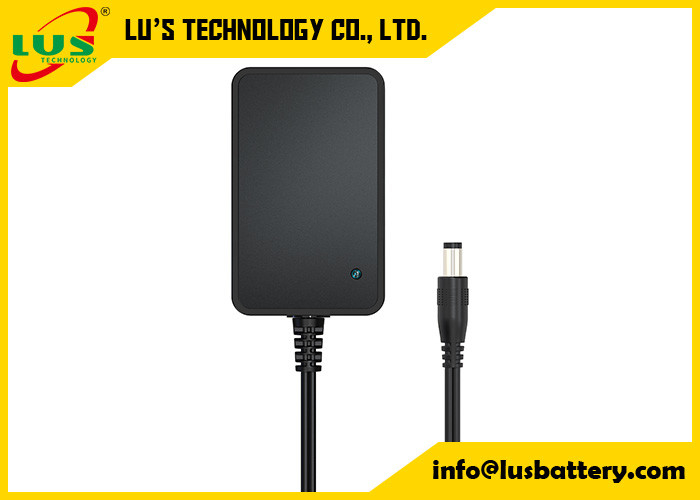

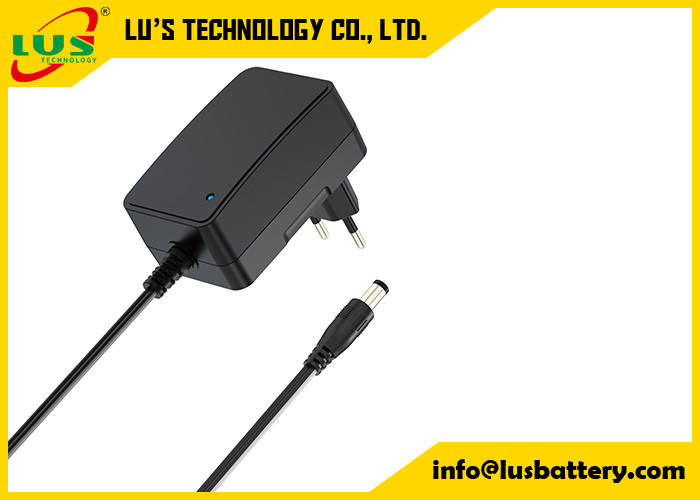

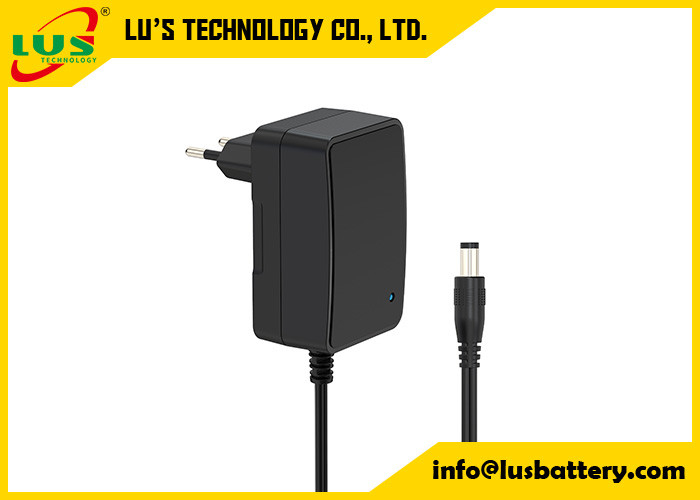

AC adapter 15V 1A power supply 15W AC110V to DC15V power driver 15V Power Adapter Charger 1A
15V 1A AC/DC Adapter Power Adapter Charger
15V 1A Power Supply, 100-240V AC to 15VDC 1000mA Wall Charger Replacement Adapter with 5.5mm x 2.1mm /2.5mm
DC 15V 1A 5.5x2.5 Power Supply Charger Adapter
15V 1A Car Jump Starter Charger for Peak 450A 500A 600A 800A 1000A Power Supply for Booster for Schumacher for TACKLIFE T6 for DBPOWER DJS50 for GOOLOO Portable Jump Starter Power Adapter
Specifications
Vin |
Safety Approvals Input Voltage Range | 100~240Vac | |
| Operate Voltage Range | 90~264Vac | ||
| Fin | Input Frequency | 50/60Hz | |
| Po | Output Power | 22.5W | |
| Vo | Output Voltage | 15 VDC +/-5% | |
| Io | Output Current | 1.5A | |
| IiI | Input Current Low Line | Io=Full load, Vin=100VAC | 2A |
| Iih | Input Current High Line | Io=Full load, Vin=240VAC | 0.5A |
Ir |
Inrush Current Low Line | Io=Full load, 25ºC ,Cool start,Vin=115Vac | 30A |
| Inrush Current High Line | Io=Full load, 25ºC ,Cool start,Vin=230Vac | 40A | |
| Eff | Efficiency | Io=Full load,Vin=230Vac | 88% |
| REG-i | Line Regulation | Io=Full load | 0.5~2% |
| REG-o | Load Regulation | Vin=230Vac | 4~5% |
| OCP | Over Current Protection | Auto recovery | 120~150% |
| Ttr | Time of Transient Response | Io=Full load to Hakf Load, Vin=100Vac | 4mS Max. |
| Th | Hold-up Time | Io=Full load, Vin=110Vac | 10mS Min. |
| Ts | Start Up Time | Io=Full load, Vin=100Vac | 3S Max. |
| Vp-p | Ripple & Noise Peak to Peak | Io=Full load, Vin=90Vac | 1% Max. |
| Ilk | Safety Ground Leakage Current | Vin=240Vac/60Hz | 0.75A Max. |
| TC | Temperature Coefficinet | All output | +/-0.04%/ºC |
| Pno | No-Load Power Consumption | No load, Vin=230Vac | 0.21W |
| Vps | Dielectric Withstanding Voltage | Primary to secondary | 3750Vac Min./3S |
| Compatibile Model | for ETABLE E1227 600A Peak Car Jump Starter, for AUKEY PB-C7-Y 400A Peak Car Jump Starter |
| Compatibile Model | for URBANIX UX-49 600A Peak Car Jump Starter, for iClever JB11R-AB 600A Peak Car Jump Starter |
| Compatibile Model | for Vetomile ca-jp-01 800A Peak Car Jump Starter, for Nekteck D25, D35, 500A 600A Peak Car Jump Starter |
| Compatibile Model | for Clore JNC311 and JNC318 12 Volt Lithium Jump Starter, for DBPOWER DJS60-2 500A, N01 1200A Peak Car Jump Starter |
| Compatibile Model | for BEATIT TECH BT-9,B9,BT-D11, 600A 88A Peak Car Jump Starter, for Anker AK-A1501011, 400A, AK-A1502111800A Peak Car Jump Starter |
| Compatibile Model | for GOOLOO E-POWER 03,GP03B, 450A, GP200 1000A Peak Car Jump Starter, for Rugged Geek RG500, RG600 and RG1000, IBU_RG1000 Peak Jump Starter |
lithium batterey charger 7.5V1a power adapters Applications:
Safety package for shippment:
