Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP164548

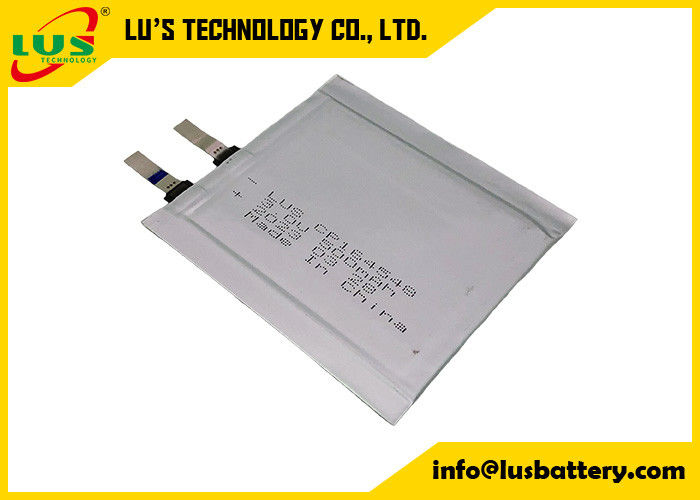

CP164548 battery 3.0V Flexible LiMNO2 soft Package Battery 164548 Lithium Metal Battery
CP164548 battery 3.0V Flexible LiMNO2 soft Package Battery for IoT Applications
CP164548 Primary soft packing Lithium Manganese Dioxide pouch Battery 3.0V 700mAh NonRechargeable thin battery for tracker device
Model NO.:CP164548
Voltage:3.0V
Capacity:700mAh
Shape:Square, soft packing
Battery Size:1.6*45*48mm
Working temperature:-40℃~+70℃
Applications:RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card
Characteristics of LiMNO2 flexible packaging battery:
1. Working voltage of 2.5 ~ 3.0 V, one battery can replace two dry batteries
2. Energy density of 450 Wh/kg, under the same weight, the capacity is 50% higher than the steel shell li-ion battery,
3. Wide Operating Temperature Range
It can be used at -40 ~ 70 ° C
4. The self-discharge rate of 4 years is less than 1.5% , with a storage life of up to 10 years After long-time storage, it has good voltage response ability,
5. Flexible Design
It has ultra-thin shape, its thinnest thickness can be up to 0.45 mm, to meet the thin and light shape requirements of modern electronic products;
6. Support customized battery.
Shape size, capacity and load performance can be customized to meet customer needs;
7. Great safety.
It is currently a relatively good safety and reliability of lithium metal batteries.
8. No voltage delay,NO passivation.
CP164548 technical
|
Type |
Disposable limno2 battery |
|
Part number |
Cp164548 |
|
Voltage |
3.0v |
|
Capacity |
500-700mah |
|
Dimensions |
1.65*45.5*48.5mm |
|
Weight |
6.5g |
|
Cut-off voltage |
2V |
|
Storage life |
10 years |
|
Terminals |
Pins/tabls/wires/connector depends on your aplication needed |
|
OEM |
Welcome |
Main Characteristics:
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Product feature:
Application Field:
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
| Lu's Technology Co.,Ltd | |||||||||
| CP product list | |||||||||
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | Operating temp | Shelf Life(year) | ||
| T(mm) | W(mm) | H(mm) | |||||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 | 10 | |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 | -20℃ ----60℃ | 10 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 | -20℃ ----60℃ | 10 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 | -20℃ ----60℃ | 10 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 | -20℃ ----60℃ | 10 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 | -20℃ ----60℃ | 10 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 | -20℃ ----60℃ | 10 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 | -20℃ ----60℃ | 10 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 | -20℃ ----60℃ | 10 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 | -20℃ ----60℃ | 10 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 | -20℃ ----60℃ | 10 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 | -20℃ ----60℃ | 10 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 | -20℃ ----60℃ | 10 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 | -20℃ ----60℃ | 10 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 | -20℃ ----60℃ | 10 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 | -20℃ ----60℃ | 10 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 | -20℃ ----60℃ | 10 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 | -20℃ ----60℃ | 10 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 | -20℃ ----60℃ | 10 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 | -20℃ ----60℃ | 10 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 | -20℃ ----60℃ | 10 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 | -20℃ ----60℃ | 10 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 | -20℃ ----60℃ | 10 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 | -20℃ ----60℃ | 10 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 | -20℃ ----60℃ | 10 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 | -20℃ ----60℃ | 10 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 | -20℃ ----60℃ | 10 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 | -20℃ ----60℃ | 10 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 | -20℃ ----60℃ | 10 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 | -20℃ ----60℃ | 10 |
| CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 | -20℃ ----60℃ | 10 |
| CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 | -20℃ ----60℃ | 10 |
| CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 | -20℃ ----60℃ | 10 |
| CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | -20℃ ----60℃ | 10 | ||
| CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 | -20℃ ----60℃ | 10 |
| CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 | -20℃ ----60℃ | 10 |
| CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 | -20℃ ----60℃ | 10 |
| CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 | -20℃ ----60℃ | 10 |
| CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 | -20℃ ----60℃ | 10 |
| CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 | -20℃ ----60℃ | 10 |
| CP203034 | 3V | 275 mAh | 50 mA | 100mA | 2 | 30 | 34 | -20℃ ----60℃ | 10 |
| CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 | -20℃ ----60℃ | 10 |
| CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 | -20℃ ----60℃ | 10 |
| CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 | -20℃ ----60℃ | 10 |
| CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 | -20℃ ----60℃ | 10 |
| CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | -20℃ ----60℃ | 10 | ||
| CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 | -20℃ ----60℃ | 10 |
| CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 | -20℃ ----60℃ | 10 |
| CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 | -20℃ ----60℃ | 10 |
| CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 | -20℃ ----60℃ | 10 |
| CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 | -20℃ ----60℃ | 10 |
| CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 | -20℃ ----60℃ | 10 |
| CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 | -20℃ ----60℃ | 10 |
| CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 | -20℃ ----60℃ | 10 |
| CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 | -20℃ ----60℃ | 10 |
| CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 | -20℃ ----60℃ | 10 |
| CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 | -20℃ ----60℃ | 10 |
| CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 | -20℃ ----60℃ | 10 |
| CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 | -20℃ ----60℃ | 10 |
| CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 | -20℃ ----60℃ | 10 |
| CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 | -20℃ ----60℃ | 10 |
| CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 | -20℃ ----60℃ | 10 |
| CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 | -20℃ ----60℃ | 10 |
| CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 | -20℃ ----60℃ | 10 |
| CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 | -20℃ ----60℃ | 10 |
| CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 | -20℃ ----60℃ | 10 |
| CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 | -20℃ ----60℃ | 10 |
| CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 | -20℃ ----60℃ | 10 |
| CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 | -20℃ ----60℃ | 10 |
| CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 | -20℃ ----60℃ | 10 |
| CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 | -20℃ ----60℃ | 10 |
| CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 | -20℃ ----60℃ | 10 |
| CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 | -20℃ ----60℃ | 10 |
| CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 | -20℃ ----60℃ | 10 |
| CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 | -20℃ ----60℃ | 10 |
| CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | -20℃ ----60℃ | 10 | |||
| CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 | -20℃ ----60℃ | 10 |
| CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 | -20℃ ----60℃ | 10 |
| CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 | -20℃ ----60℃ | 10 |
| CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 | -20℃ ----60℃ | 10 |
| CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 | -20℃ ----60℃ | 10 |
| CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 | -20℃ ----60℃ | 10 |
| CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 | -20℃ ----60℃ | 10 |
| CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 | -20℃ ----60℃ | 10 |
| CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 | -20℃ ----60℃ | 10 |
| CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 | -20℃ ----60℃ | 10 |
| CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 | -20℃ ----60℃ | 10 |
| CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 | -20℃ ----60℃ | 10 |
| CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 | -20℃ ----60℃ | 10 |
| CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 | -20℃ ----60℃ | 10 |
| CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 | -20℃ ----60℃ | 10 |
| CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 | -20℃ ----60℃ | 10 |
| CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 | -20℃ ----60℃ | 10 |
| CP9V | 9V | 1200mAh | 150mA | 300mA | -20℃ ----60℃ | 10 | |||
