Place of Origin:
Guangdong,China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP041515

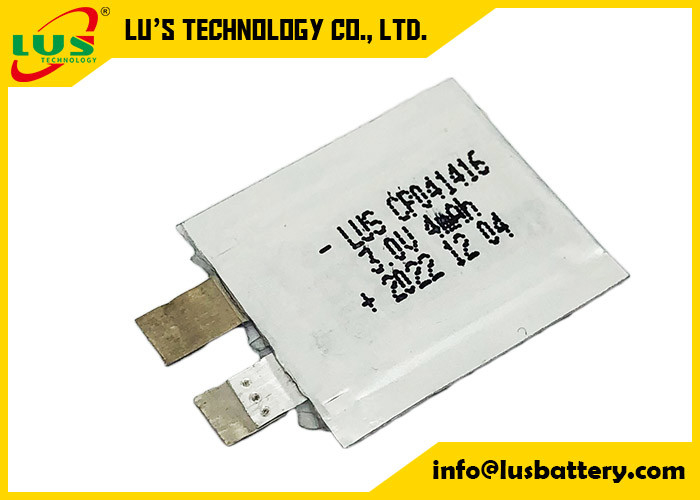

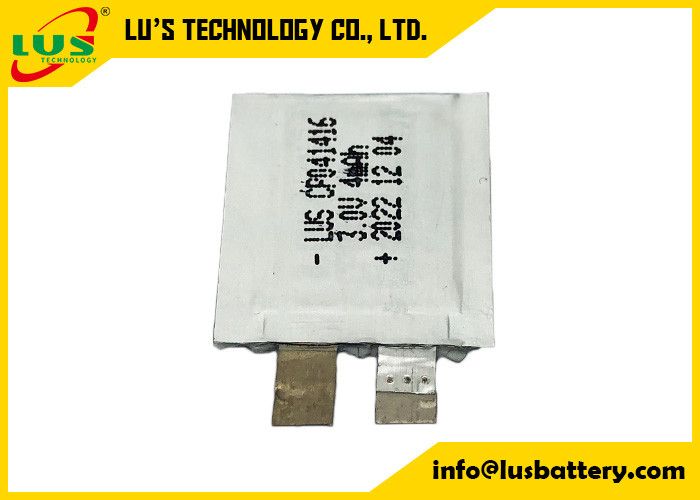

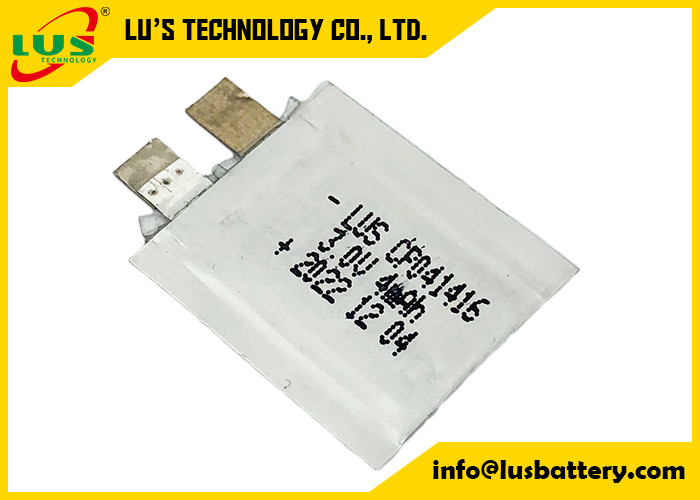

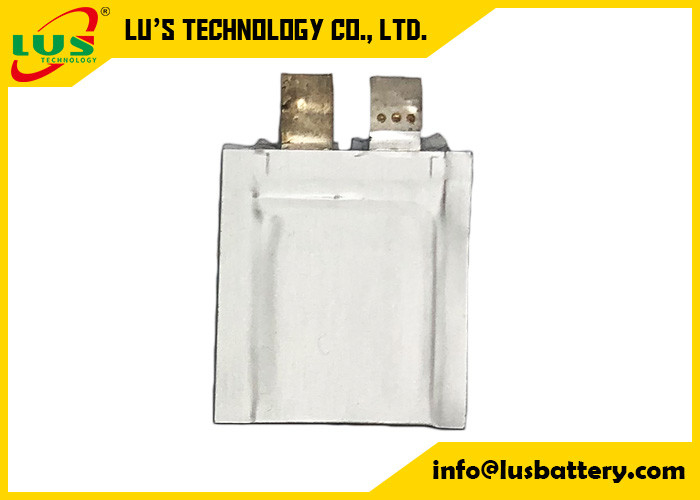

3.0V 4mah disposable battery CP041515 super thin cell thickness 0.4mm lithium battery 041515
This is lithium metal battery 3.0v soft-pack limno2 battery with thickness only 0.4mm super thin battery 4mah CP041515 CP041616 CP041414 CP041416
Wide Operating Temperature Range
-20°C to +60°C
Special models with operating temperature -40°C to + 70°C available
Long Shelf Life
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin Variable Design
Battery of variable dimensions can be selected to fit in the customer's design
Customize batteries and packs are available
Greater Safety
The structure of the battery offers greater safety to meet customer's requirement for special applications
Name: Paper battery
Voltage: 3 volt
Capacity: 4 mah
Dimension: 0.45*14.5*16.5mm MAX
Weight: 0.4g only
Application: Smart card, PCB mounting, tracker etc
| Name | soft-packed Li-MnO2 Battery |
| Model | CP041515 |
| Voltage | 3.0V |
| Capacity | 4 mah |
| Dimension | Max. 0.45*14.5*16.5mm |
| Temperature | -40 to +70 |
| Weight | 0.4 g |
| Max.Continuous Discharge Current (mA) | 2 mA |
| Max.Pulse Discharge Current (mA) | 4mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Product Feature:
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
| T(mm) | W(mm) | H(mm) | |||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
| CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
| CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
| CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 |
| CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | ||
| CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 |
| CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 |
| CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 |
| CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 |
| CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 |
| CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 |
| CP203034 | 3V | 270 mAh | 50 mA | 100mA | 2 | 30 | 34 |
| CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 |
| CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 |
| CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 |
| CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 |
| CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | ||
| CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 |
| CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 |
| CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 |
| CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 |
| CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 |
| CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 |
| CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 |
| CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
| CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 |
| CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 |
| CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 |
| CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 |
| CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 |
| CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 |
| CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
| CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
| CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 |
| CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 |
| CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 |
| CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 |
| CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 |
| CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 |
| CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
| CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
| CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 |
| CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 |
| CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 |
| CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | |||
| CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
| CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
| CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
| CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 |
| CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 |
| CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 |
| CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
| CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 |
| CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 |
| CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
| CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
| CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
| CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
| CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
| CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
| CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 |
| CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
| CP9V | 9V | 1200mAh | 150mA | 300mA | |||
