Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP404042

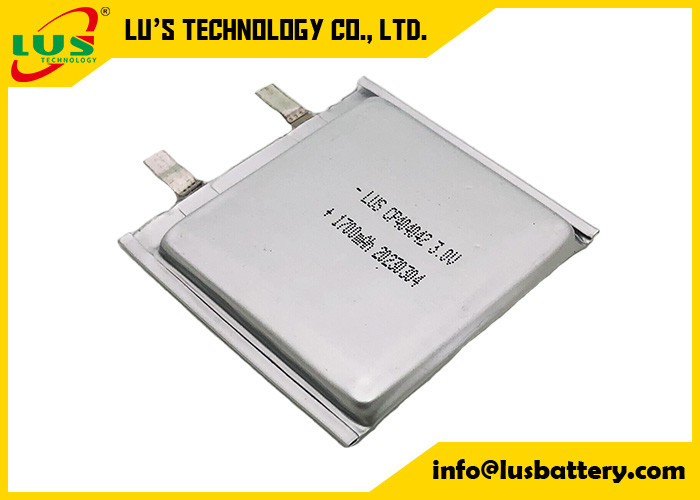

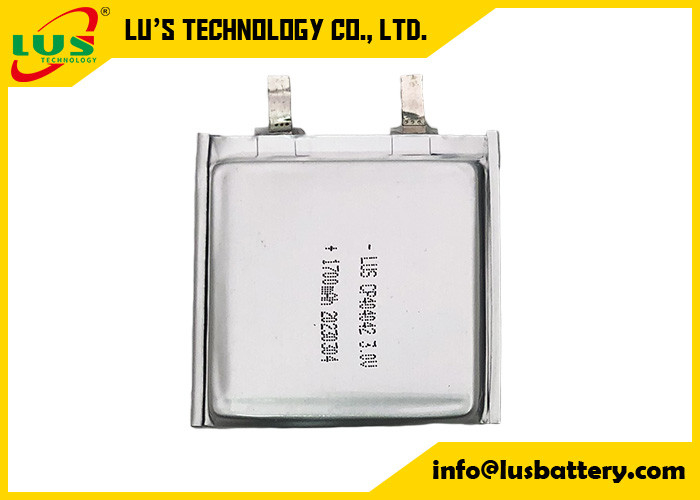

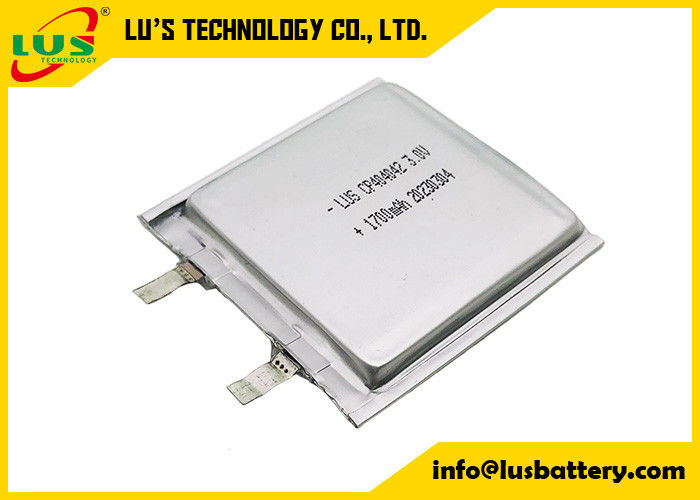

Super thin limno2 battery CP404042 3.0v 1700mah ultra thin cell CP404040 non rechargeable CP battery
The CP404040 CP404042 chemistry limno2 battery 3v 1700mah in flexible ultra thin cell
This thin cell battery is soft-pack lithium ion battery but 3v not rechargeable type CP404042 404040
Handling of cells:
★ Avoid any short-circuit. It will cause the leads to get hot and lose electronic functions.
★ Soft package is easily damaged by sharp objects such as needles and knives. Avoid
touching the cells with sharp objects when handling and storing.
★ Next to the leads is the sealed edge. Don’t bend or fold the sealing edge as it is
sensitive to movement.
★ Don’t open the folded edge on the sides of the cell.
★ Don’t bend the tabs as the tabs are sensitive.
★ Avoid mechanical shock to the cells.
★ Don’t put the cells into an oven, washing machine or any high-voltage container.
★ Don’t use a charger without a safety certification. Use only a recommended charger.
★ You should immediately stop charging if the cell overheats, emits an odor, changes
color, changes shape, etc.
★ Adults should supervise the use of batteries by children.
★ Before using batteries, please carefully read and understand the handling guidelines.
★ Avoid electro-static discharge when using, charging, and storing cells.
★ Avoid putting the battery in contact with metal conductors such as neck chains,
barrettes, or bolts, etc.
★ Don’t use metal conductors to connect the positive and negative leads together.
★ Avoid errors during assembly by contacting the positive lead with the negative lead.
| Name | lithium primary battery ultra thin cell |
| Material | Limno2 |
| Model | CP404042 |
| Voltage | 3.0V |
| Capacity | 1700mah |
| Dimension | Max.4×40.5×42mm |
| Temperature | -40 to +70 |
| Weight | 12.5 g |
| Max continuous discharge current | 800mA |
| Max pluse discharge current | 1200mA |
| Terminals | Customized |
| Samples | Available |
| Shipping | AIR/SEA/EXPRESS |
| OEM and ODM | Welcome |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time. Welcome for any customized. Such as any battery pack with wires and connector as follow:
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Flexible lithium battery list:
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
| T(mm) | W(mm) | H(mm) | |||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
| CP164548 | 3V | 700mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
| CP171234 | 3V | 140mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
| CP181234 | 3V | 125mAh | 25mA | 50mA | 1.8 | 12±0.5 | 34 |
| CP183123 | 3V | 150mAh | 45mA | 75mA | 1.8 | ||
| CP201335 | 3V | 120mAh | 25mA | 50mA | 2 | 10 | 35 |
| CP201535 | 3V | 120mAh | 30mA | 60mA | 1.9 | 14 | 35 |
| CP202128 | 3V | 130mAh | 20mA | 40mA | 2 | 21±0.5 | 28±0.5 |
| CP202540 | 3V | 350mAh | 75mA | 150mA | 2 | 25±0.5 | 40±0.5 |
| CP202721 | 3V | 140mAh | 40mA | 80mA | 2 | 27±0.5 | 21±0.5 |
| CP203030 | 3V | 230mAh | 50mA | 100mA | 2 | 30 | 30 |
| CP203034 | 3V | 275 mAh | 50 mA | 100mA | 2 | 30 | 34 |
| CP203040 | 3V | 210mAh/380MAH | 100mA | 200mA | 2 | 30±0.5 | 40±0.5 |
| CP203242 | 3V | 375mAh | 75mA | 150mA | 2.1 | 32 | 42 |
| CP204517 | 3V | 210mAh | 20mA | 50mA | 2 | 45±0.5 | 17±0.5 |
| CP204547 | 3V | 750mAh | 50mA | 100mA | 2 | 45±0.5 | 47±0.5 |
| CP222920 | 3V | 150mAh | 45mA | 75mA | 2.2 | ||
| CP224248 | 3V | 850mAh | 100mA | 200mA | 2.2 | 45±0.5 | 48.5±0.5 |
| CP225050 | 3V | 1000mAh | 200mA | 400mA | 2.2 | 50 | 50 |
| CP225080 | 3V | 1700mAh | 200mA | 400mA | 2.2 | 50 | 80 |
| CP242030 | 3V | 230mAh | 50mA | 100mA | 2.4 | 20±0.5 | 30±0.5 |
| CP255050 | 3V | 1200mAh | 150mA | 300mA | 2.5 | 50 | 50 |
| CP251525 | 3V | 150mAh | 40mA | 80mA | 2.5 | 15±0.5 | 25±0.5 |
| CP251626 | 3V | 150mAh | 60mA | 150mA | 2.5 | 16±0.5 | 26.5±0.5 |
| CP252525 | 3V | 250mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
| CP255047 | 3V | 1250mAh | 150mA | 300mA | 2.5 | 50 | 47.5±0.5 |
| CP255080 | 3V | 2050mAh | 300mA | 600mA | 2.5 | 50 | 80 |
| CP301415 | 3V | 85mAh | 30mA | 60mA | 3 | 14±0.5 | 15±0.5 |
| CP301919-2S | 6V | 150mAh | 50 mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP302525 | 3V | 350mAh | 75 mA | 150 mA | 3 | 25 | 25 |
| CP304580 | 3V | 2500mAh | 200mA | 500mA | 3 | 45 | 80 |
| CP321626 | 3V | 250mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP334728 | 3V | 700mAh | 100mA | 200mA | 3.5 | 47.5 | 28.0±0.5 |
| CP352440 | 3V | 750mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
| CP355050 | 3V | 2000mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
| CP402020 | 3V | 275mAh | 50mA | 100mA | 4 | 20±0.5 | 20±0.5 |
| CP402424H | 3V | 400mAh | 100mA | 300mA | 4 | 24 | 24 |
| CP403030 | 3V | 550mAh | 75mA | 150mA | 4 | 30 | 30 |
| CP453450 | 3V | 1700mAh | 300mA | 600mA | 4.5 | 33±0.5 | 49±0.5 |
| CP501525 | 3V | 350mAh | 80mA | 150mA | 5 | 15±0.5 | 25.5±0.5 |
| CP502440 | 3V | 1200mAh | 150mA | 300mA | 5 | 24.5±0.5 | 41 |
| CP502540 | 3V | 1200mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
| CP503436 | 3V | 1550mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
| CP503740 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 40±0.5 |
| CP503742 | 3V | 1700mAh | 300mA | 600mA | 5 | 37±0.5 | 42±0.5 |
| CP505050 | 3V | 3000mAh | 500mA | 1500mA | 5.2 | 50.5±0.5 | 50.5±0.5 |
| CP505050-2S | 6V | 3000mAh | 600mA | 1800mA | |||
| CP505050-2P | 3V | 6000mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
| CP543537 | 3V | 1500mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
| CP601919 | 3V | 300mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
| CP603450 | 3V | 2400mAh | 500mA | 1000mA | 6.1 | 34±0.5 | 50±0.5 |
| CP603956 | 3V | 3300mAh | 800mA | 1500mA | 6.1 | 39±0.5 | 56 |
| CP604446-2S | 6V | 3000mAh | 2000mA | 4000mA | 13 | 46 | 44 |
| CP603244 | 3V | 2000mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
| CP702242 | 3V | 1500mAh | 200mA | 1200mA | 7 | 22 | 42 |
| CP703028 | 3V | 1000mAh | 200mA | 400mA | 7 | 30 | 28 |
| CP703448 | 3V | 2000mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
| CP806468 | 3V | 8000mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
| CP1002045 | 3V | 1800mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
| CP1002440 | 3V | 2400mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
| CP1002550 | 3V | 2700mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
| CP4542100 | 3V | 4750mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
| CP7839109 | 3V | 9000mAh | 2000mA | 3000mA | 7.9 | 39±0.5 | 109 |
| CP11568125 | 3V | 28000mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
| CP9V | 9V | 1200mAh | 150mA | 300mA | |||
