Place of Origin:
Guangdong,China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP702236

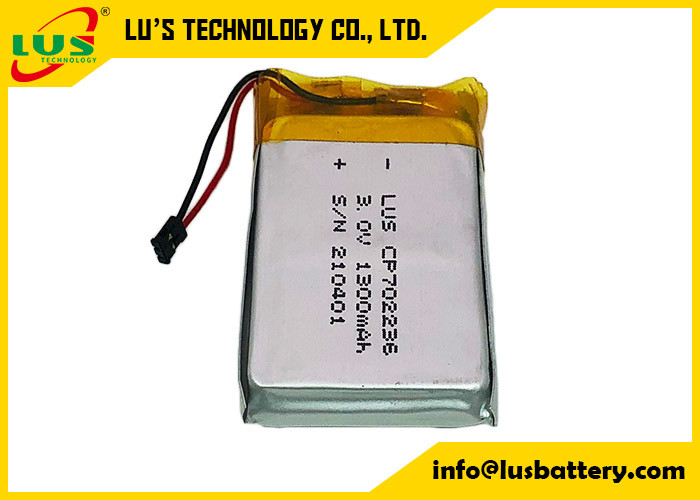

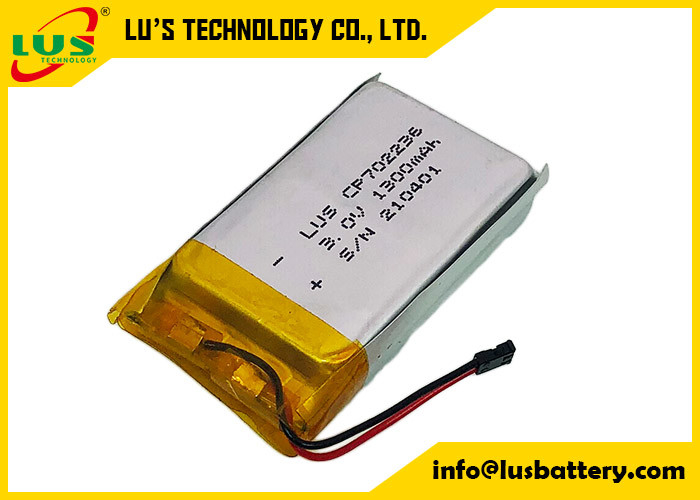

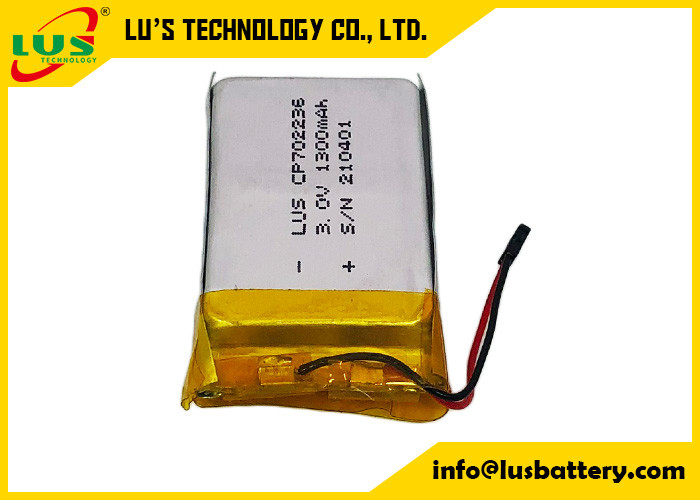

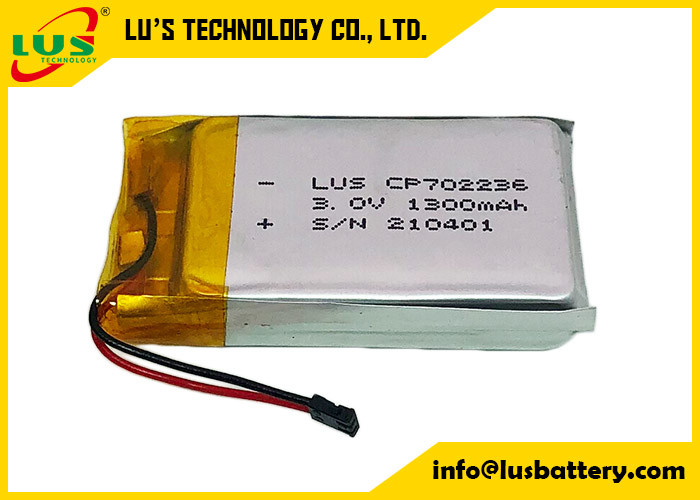

CP702236 Thin Cell Lithium Manganese Battery 1300mah 3.0 volt thin battery for trackable Smart Label
CP Ultra Thin Battery CP702236 1300mah flexible limno2 battery 3.0V widely used in IOT solution by OEM
Wide Operating Temperature Range -20°C to +60°C
Special models with operating temperature -40°C to + 70°C available
Long Shelf Life
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin Variable Design
Battery of variable dimensions can be selected to fit in the customer's design
Customize batteries and packs are available
Greater Safety
The structure of the battery offers greater safety to meet customer's requirement for special applications
it describes the Product Specification of soft-packed Li-MnO2 Battery CP702236 produced by LU’S.
| Name | Li-MnO2 Battery ultra thin cell | Note |
| Model | CP702236 | 1S1P |
| Voltage | 3.0V | When shipping, the voltage without load is between3.05V and 3.25V. |
| Capacity | 1300mah | Nominal Capacity refer to the capacity of 2 mA discharge to 1.8V cut-off voltage at 23℃. |
| Dimension | Max.7.2*22.5*36.5mm | Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery drawing line. |
| Temperature | -40 to +60 | Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk. |
| Shelf life | Above 10 years | Relative humidity 45~75%RH Temperature -5 ℃~+35℃ |
| Max.Continuous Current (mA) | 500mA | At 25±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit. |
| Max.Pulse Current (mA) | 1000mA | At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit |
| Terminals | Can be customized | such as pins, wires, connector |
| OEM and ODM | Welcome | Any battery pack acceptable |
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
Product Feature:
Quality Control:
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
