Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
ER10450 Li-SCLO2 batteries AAA
ER10450 Battery AAA Lithium Battery 3.6V 800mAh Battery Superior R03P LR03 for Utility meter/GPS Alarm/security

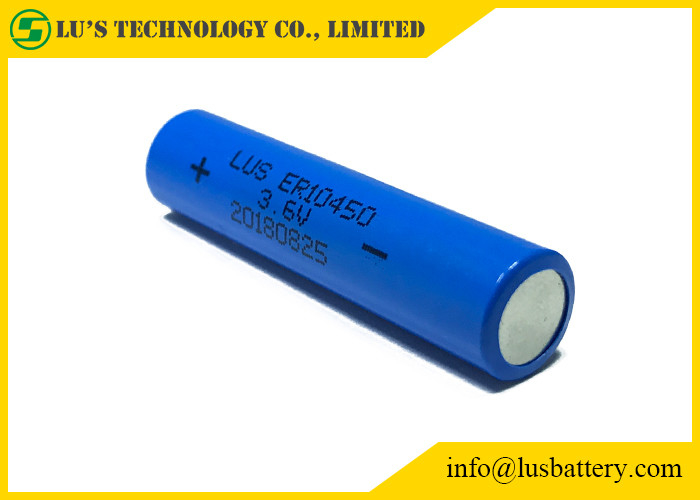

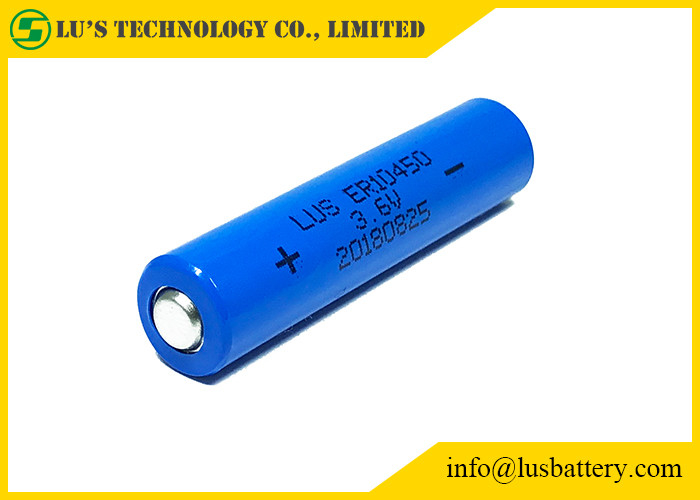

Cylindrical LiSOCL2 battery with high capacity ER10450
ER10450 AAA Lithium Thionyl Chloride battery is ideal for wireless alarm systems and can be widely used where miniaturisation is driving down the size of applications.
Covert surveillance devices are a perfect example of an application for the combination of high energy content and small size delivered by this ER10450 AAA Lithium Thionyl Chloride cell.
Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries.
It also has the widest operating temperature range of -55°C to + 85°C. Self discharge is low at less than 1% per annum at 20°C, giving an effective shelf life of 10 years.
Versions of this ER10450 AAA Lithium Thionyl Chloride cell are available to order with a wide variety of solder pins, solder tags, axial wires, and polarized solder pins.
er10450 3.6v lithium batteryTechnical data:
| Model | ER10450 |
| Voltage | 3.6V |
| Capacity | 700mAh |
| Max constant current of discharge | 25mA |
| Max discharge current(pulse) | 60mA |
| Weight | 9g |
| Operating temperature range | -55~85℃ |
| Jacket | PVC or Plastic case |
| Terminals | Pins/tabs/customized |
| Samples | Available |
| Color | Blue or customized LOGO |
| OEM and ODM | Welcome |
Application:
Utility Metering
Automatic Meter Reading
Medical Electronics
Memory Backup
Tracking Systems
Law Enforcement (RFID)
Earthquake Detectors
Digital Control Devices
Remote Monitory Systems
Electronic Toll Tags
Scientific Instruments
Portable Communication Equipment
Military Radio Stations
And other electric powered devices requiring small size
High power batteries.

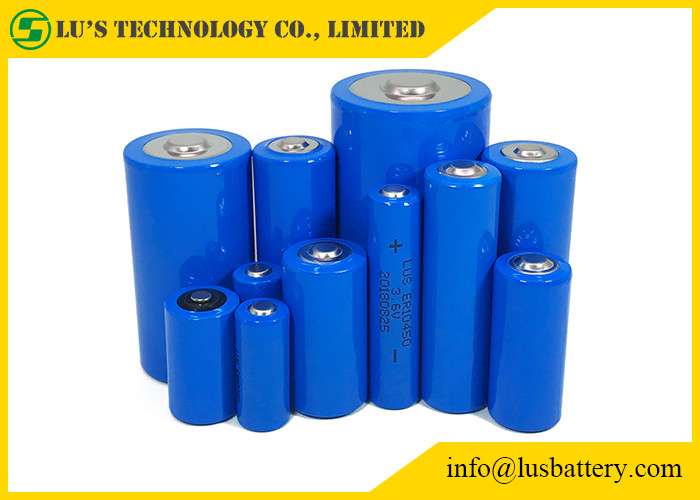

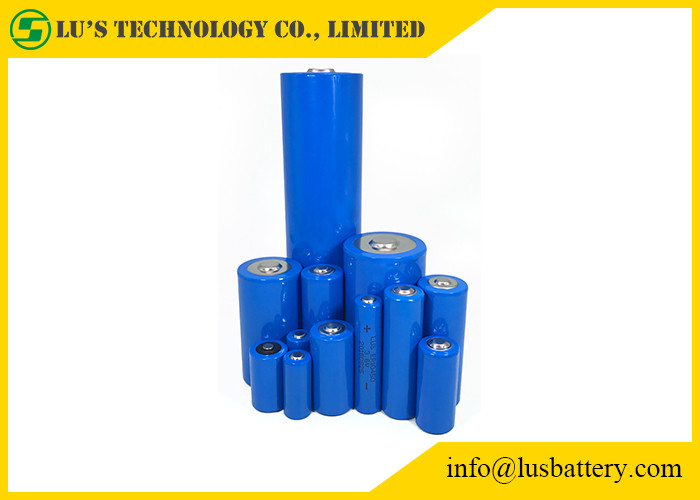

Lithium Thionyl Chloride Battery 3.6V List:
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 700(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||
Any terminals can be customized. we are welcome OEM service!
