Place of Origin:
Guangdong,China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
CP602026 soft package battery 600mah

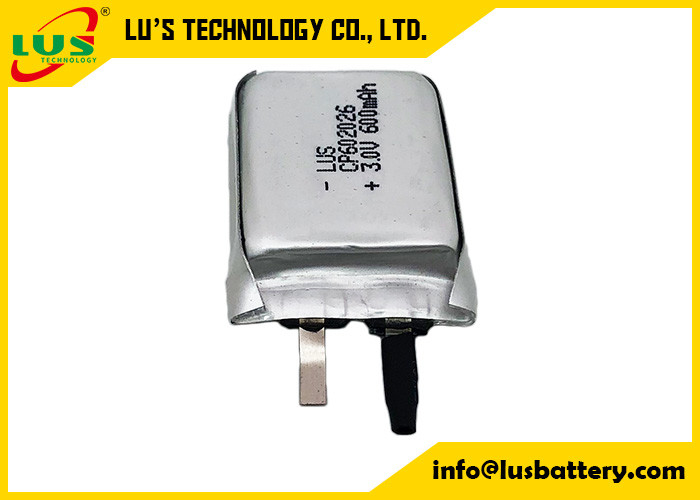

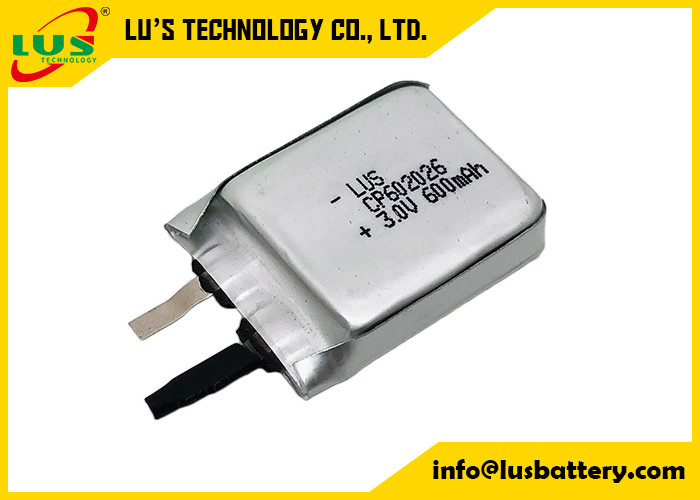

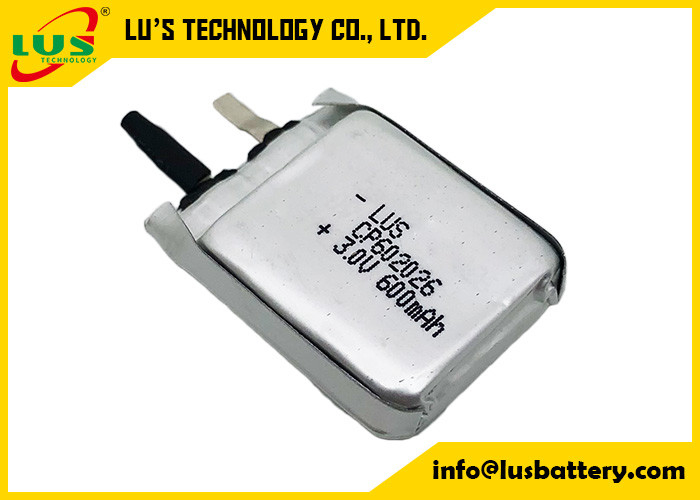

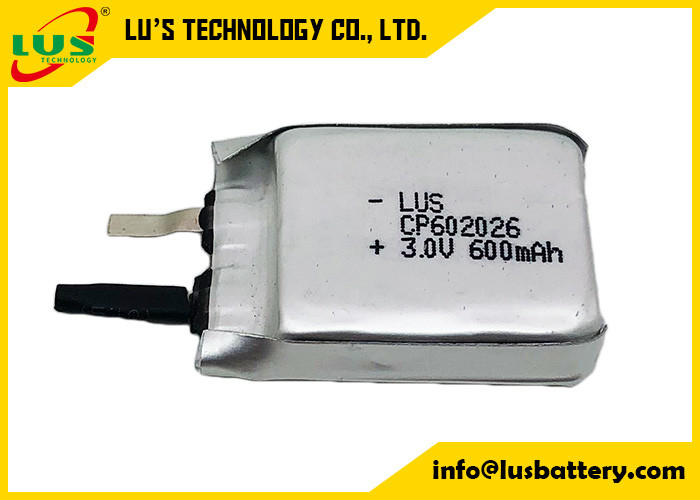

LiMnO2 ultra thin 3.0v CP602026 600mah non-rechargeable lithium battery for RFID active tag
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970 CP7839109 CP802060 CP952434 CP1003742
CP383040 CR9V LU's battery
| Name | Li-MnO2 Battery ultra thin cell |
| Model | CP602026 |
| Voltage | 3.0V |
| Capacity | 600mah |
| Dimension | Max.6.2*21*27mm |
| Temperature | -40 to +70 |
| Weight | 4.5g |
| Max.Continuous Current (mA) | 200mA |
| Max.Pulse Current (mA) | 300mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |
3.0 volt thin batteries:
| Model Size | Nominal Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Dimension | ||
| T(mm) | W(mm) | H(mm) | |||||
| CP042345 | 3V | 35mAh | 2mA | 4mA | 0.45 | 23±0.5 | 45±0.5 |
| CP042529 | 3V | 22mAh | 2mA | 4mA | 0.45 | 25±0.5 | 29±0.5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0.45 | 27±0.5 | 22±0.5 |
| CP042922 | 3V | 15mAh | 1mA | 2mA | 0.41 | 29 | 23 |
| CP044040 | 3V | 50mAh | 5mA | 10mA | 0.45 | 40 | 40±0.5 |
| CP044560 | 3V | 100mAh | 10mA | 20mA | 0.45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2 mA | 4 mA | 0.5 | 20 | 39 |
| CP052722 | 3V | 22mAh | 1mA | 2mA | 0.5 | 27 | 22 |
| CP053050 | 3V | 80mAh | 15mA | 30mA | 0.5 | 30 | 50 |
| CP054248 | 3V | 100mAh | 20mA | 40mA | 0.5 | 48.5±0.5 | 48.5±0.5 |
| CP064348 | 3V | 200mAh | 20mA | 50mA | 0.6 | 48.5±0.5 | 48.5±0.5 |
| CP073545 | 3V | 160mAh | 10mA | 20mA | 0.7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0.8 | 29 | 22 |
| CP084248 | 3V | 320mAh | 20mA | 50mA | 0.8 | 48.5±0.5 | 48.5±0.5 |
| CP102015 | 3V | 30mAh | 2mA | 5mA | 1 | 20±0.5 | 15±0.5 |
| CP104248 | 3V | 420mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75 mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160mAh | 25mA | 50mA | 1.4 | 28±1.0 | 28±1.0 |
| CP142828H | 3V | 140mAh | 50mA | 100mA | 1.4 | 28±1.0 | 28±1.0 |
| CP151220 | 3V | 35mAh | 5mA | 10mA | 1.5 | 12±0.5 | 20±0.5 |
| CP153030 | 3V | 170mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000mAh | 150mA | 300mA | 1.5 | 45±0.5 | 80 |
| CP151015 | 3V | 18mAh | 0.5mA | 1mA | 1.5 | 10±0.5 | 15±0.5 |
| CP161220H | 3V | 20mAh | 16mA | 30mA | 1.6 | 12±0.5 | 20±0.5 |
| CP161230H | 3V | 45mAh | 16mA | 30mA | 1.6 | 12±0.5 | 30±0.5 |
| CP162235 | 3V | 160mAh | 30mA | 50mA | 1.6 | 22 | 35 |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.
1. Could you tell me your main product?
Re: Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.
2. What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3. Could we do our logo customized ?
Re: Yes,we could do your printing and also accept original design service.
4. What is sample Date?
Re: we will send out within 1 week after details confirmation.
5. What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6. Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7. What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8. Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9. Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
