Place of Origin:
China
Brand Name:
OEM
Model Number:
PCM-7S8A
Video
Video

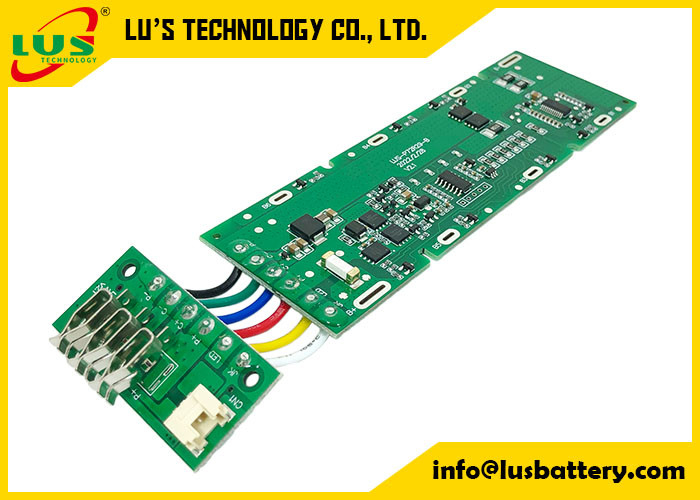

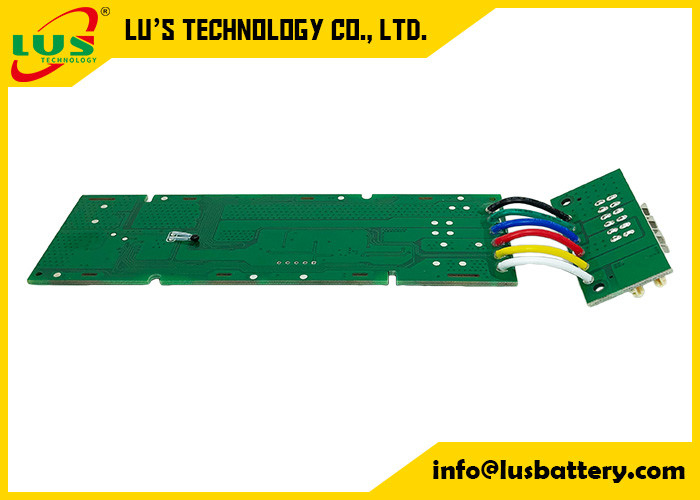

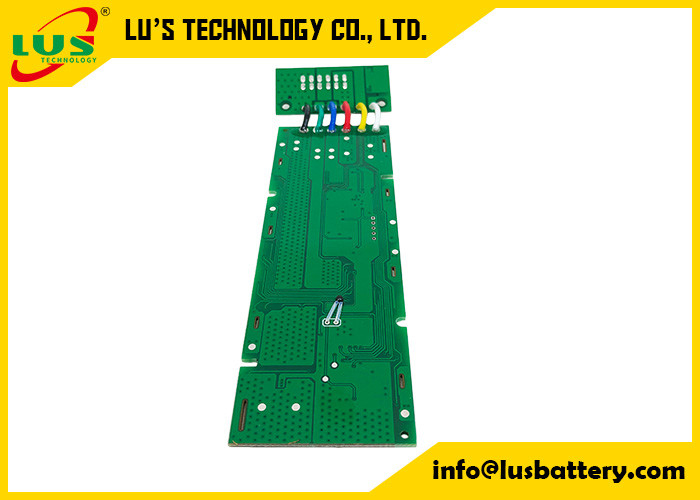

PCM For 7S 25.9V Li-ion battery and 22.4v lifepo4 Battery Packs PCM-7S8A-164V 7S PCM
7s8a BMS Module for E-Bike, E-Scooter Power Lithium Battery Pack picture from ... Power Indicator 36V 6s 10s Battery PCM Separate Port Smart 4s BMS
5-10S PCM lithium ion battery 25.9V 7S2A 7S8A 7S10A 18650
BMS 7s 20A with Connector for 18650 Battery
BMS 7S 24V 60A Li-ion Battery Charging Discharge Controller Protection Module PCB Protection Board with Balance Leads Wires BMS for 18650 Battery Pack
24V 60A-200A BMS for 7 Lithium Li-NCM Battery Packs in Series 7S
BMS is for a 7S (25.9v nominal) lithium ion battery
7S 24v BMS with Heat Sink-Yes Base Material-Glass Fiber Surface Finishing-Oxidation Continuous Discharging Current-30A Peak Discharging
Feature:
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
bms 7s 10a for li ion battery with contact plate Specification:
| No. | PARAMETER | Criterion | |
| 1 | Voltage | Charging voltage | DC:29.4V CC/CV |
| Balance voltage for single cell | 4.125±0.025V | ||
| 2 | Current | Balance current for single cell | 80±5mA |
| Current consumption | ≤35μA | ||
| Maximal continuous charging current | 10A can be customized | ||
| Maximal continuous Discharging current | 30A can be customized | ||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V |
| Over charge delay time | 800mS~1200mS | ||
| Over charge release voltage for single cell | 4.15±0.05V | ||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.80±0.03V |
| Over discharge detection delay time | 800~1200mS | ||
| Over discharge release voltage for single cell | 3.0±0.025V | ||
| 5 | Over current protection | Charge over-current protection | 15A±10% can be customized |
| Charge Over-Current Delay | 400~600mS | ||
| Discharge over-current protection1 | 50A±10% can be customized | ||
| Detection delay time1 | 700~1300mS | ||
| Discharge over-current protection2 | 60A±20% can be customized | ||
| Detection delay time2 | 70~130mS | ||
| Release condition | Cut load,Automatic recovery | ||
| 6 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 160~240uS | ||
| Release condition | Cut load,Automatic recovery | ||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤2mΩ |
| 8 | Temperature | Operating Temperature Range | -25～+70℃ |
| Storage Temperature Range | -40～+125℃ | ||
| Charge Over Temperature | 48.5℃±5℃ | ||
| Charge Under Temperature | -5℃±5℃ | ||
| Discharge Over Temperature | 70℃±5℃ | ||
| Discharge Under Temperature | -25℃±5℃ | ||

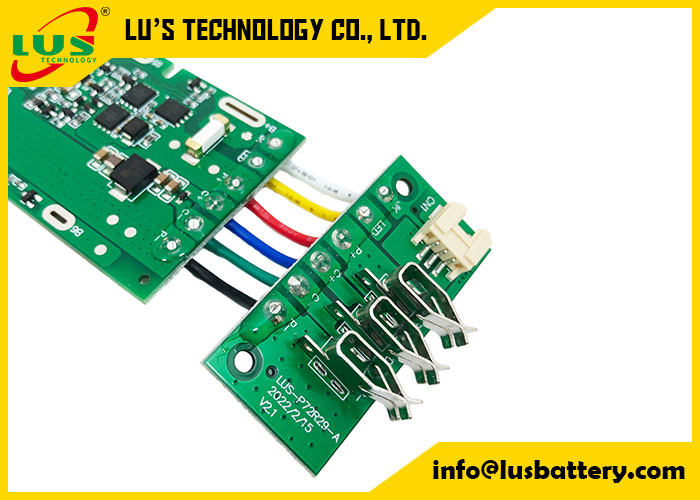

Include contact plate very suitable for battery case ,widely use in power tool field:
Function:
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit
,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
