Place of Origin:
China
Brand Name:
OEM
Model Number:
CR042922

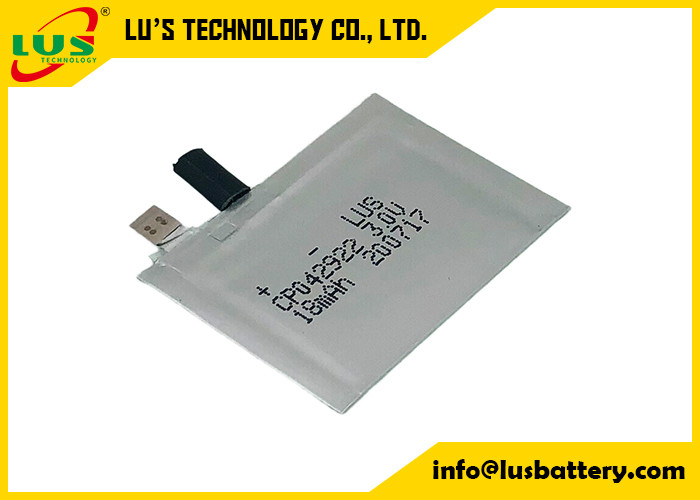

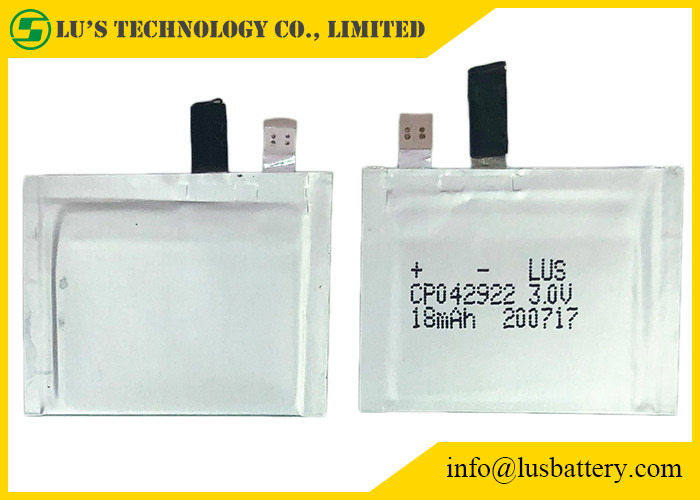

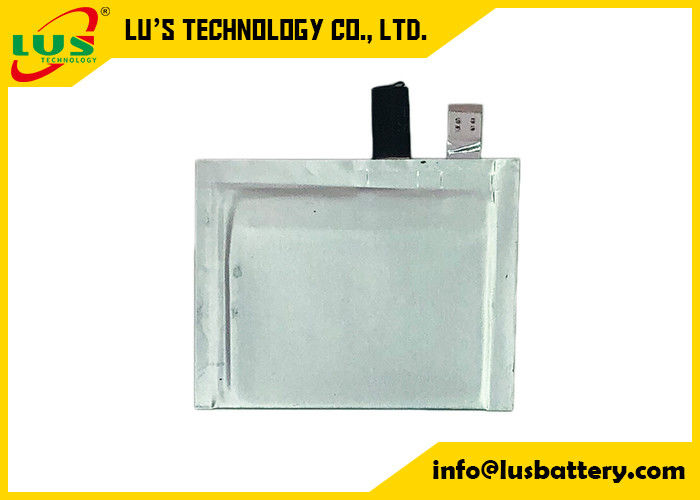

CP042922 LUS battery 3V 18mAh Li/MnO2 ultra-thin film batteries 0.4mm thickness lithium battery
Main Characteristics:
a.High and stable working voltage
The standard voltage is 3.6V, and the working voltage is kept obviously stable in the whole service life; and more than 90 percent of battery capacity is output on a high-voltage platform with unchanged voltage.
b.Wide operating temperature range . It can be used at the temperature of -60℃ to 150℃.
c.Longer storage life and higher reliability
It has a quite low self-discharge feature (the annual self-discharge rate is less than or equal to 1%), and adopts stainless steel shell and metal-glass sealing airtight welding structure, so the guarantee period of the battery is proved to be more than 10 years at room temperature.
d.High safety and non-pollution
It does not contain heavy metals such as mercury, cadmium and lead, so the environmental hazard is avoided.
| Name | Li-MnO2 Battery ultra thin battery |
| Model | Cp042922 |
| Voltage | 3.0V |
| Capacity | 15 and 18 mah |
| Dimension | 0.45*29*22 mm |
| Max Continuous Discharge Current | 10mA |
| Max Pulse Discharge Current | 20mA |
| Temperature | -40 to +70 |
| Shelf life | 10 years |
| Terminal | Can be customized |
| OEM and ODM | Welcome |
| Weight | 0.4g |
| standard discharge current | 0.5mA |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
LiSOCL2 energy type and power type:
ER10250, ER10280,ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505,ER26500, ER34615, ER341245,ER9V and more ...
LiMnO2 energy type and power type:
CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2,CR9V...
Soft pack LimnO2 battery type:
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery ,Ultra thin battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.
Work Shop:
| Model | Max. dimensions (mm) | Weight (g) |
Rated voltage(v) | Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45*29*22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45*23*45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP0453730 | 0.48*37*30 | 0.8 | 3.0 | 35 | 0.5 | 15 | 30 |
| CP104848 | 1.2*49*49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5*29*29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP144920 | 1.4*49*20 | 1.5 | 3.0 | 150 | 1.0 | 20 | 40 |
| CP153030 | 1.6*31*31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6*51*51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0*12*125 | 5.5 | 3.0 | 400 | 1.0 | 100 | 200 |
| CP202850 | 2.2*28.5*50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4*41*36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4*31*46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3*45*49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8*51*46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8*46*59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2*51*51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2*18*21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2*20*23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2*51*51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5*18*29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2*26*26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2*25*42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2*38*43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2*47*45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2*51*51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2*21*27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2*18*26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8*39*70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8*39*109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0*20*60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7*25*35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2*38*43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
| CP9V | 17.5*26.5*48.8 | 30.0 | 9.0 | 1200 | 1.0 | 400 | 800 |
| CR123A | 17*34.5 | 17.0 | 3.0 | 1400 | 1.0 | 1500 | 3000 |
| CR2 | 15.5*27 | 11.0 | 3.0 | 800 | 10.0 | 1000 | 2000 |
| CR-P2 | 19.5*34.5 | 37.0 | 6.0 | 1400 | 10.0 | 2000 | 3000 |
| If you can't find the model on list please feel free to contact us for more information. Any special size can be customized. E-mail: cindy@lusbattery.com | |||||||
