Place of Origin:
China
Brand Name:
OEM
Model Number:
3.6V
Model: 3.6V 1800mah NIMH Battery Pack Nickel Metal Hydride Battery with Wires and Connector
Nickel Metal Hydride Battery
3.6V NIMH Battery Pack 1800mah
1.2V Battery Pack
Characteristic Of Charge/Discharge:
Note 1: Standard charge and Standard discharge
Note 2: (1). Ambient temperature: 20±5℃, Relative Humidity: 65±20%
(2). Life test method of IEC61951-2:2003:
| Cycle Number | Charge | Stand in charged condition | Discharge |
| 1 | 0.1C×16hrs | None | 0.25C×2hrs 20min |
| 2~48 | 0.25C×3hrs 10min | None | 0.25C×2hrs 20min |
| 49 | 0.25C×3hrs 10min | None | 0.25C to 1.0V/cell |
| 50 | 0.1C×16hrs | 1～4hrs | 0.20C to 1.0V/cell |
|
Cycles 1 to 50 shall be repeated until the discharge duration on any 50th cycle become less than 3h.At this stage, a repeat capacity measurement as specified for 50 shall be carried out |
|||
Date Of Battery Pack
The data of battery pack, including voltage and weight, is almost equivalent to the multiple numbers of the relevant single cells.
Example: Battery pack consisting three single cells
Nominal voltage of single cell = 1.2V
Nominal voltage of battery pack = 1.2V×3 = 3.6V
Ratings of the cells
| Description | Unit | Specification | Conditions |
| Nominal Voltage | V/Cell | 1.2 | Single cell |
| Nominal Capacity | mAh | 1800 | Standard Charge/Discharge |
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
NIMH Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance

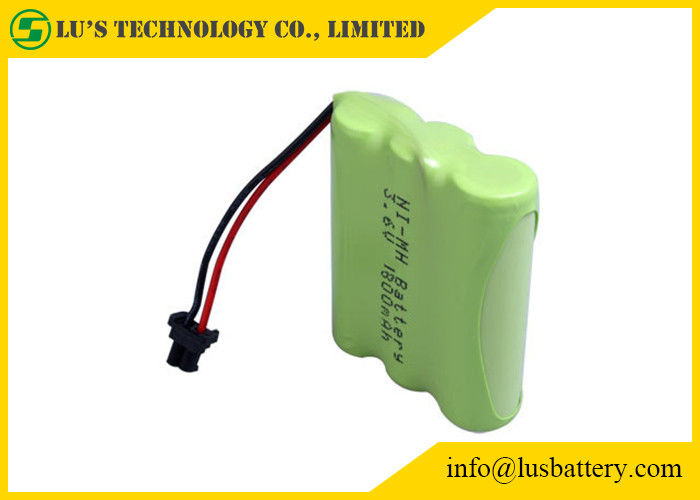

3.6V 1800mah NIMH Battery Pack With Wires And Connector:
Other Power Tool Replacement NIMH Battery Pack :
