Place of Origin:
China
Brand Name:
OEM
Model Number:
LP603450
Video
Video
Video
Model:
LP603450 Li-Polymer battery
3.7V rechargeable batteries LP603450
Polymer lithium battery LP603450
LP603450 Lithium ion battery
Li-ion Polymer Battery LP603450

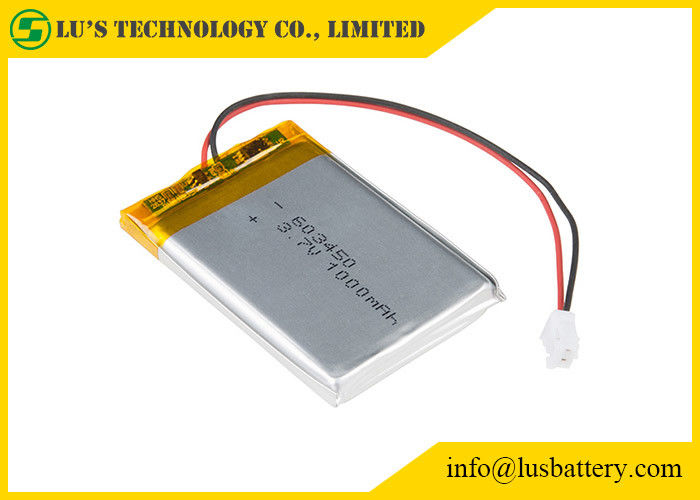

LP603450 Lithium Polymer Battery 3.7V Rechargeable Lithium Cell 1000mah With PCM And
Wires And Connector
| Name | Lipo rechargeable battery |
| Model | LP603450 |
| Nominal capacity | 1000mah |
| Nominal voltage | 3.7V |
| Voltage at end of Discharge | 2.5V |
| Charging Voltage | 4.2±0.03V |
| Charging time | About 6 h |
| Protect | PCM |
Standard environmental test condition:
Unless otherwise specified, all tests stated in this Product Specification are conducted at
below condition:
Temperature:20±5℃
Humidity: 60±15%RH
PCM parameter :
| NO | Items | Criteria |
| 1 | Over –charge Protection voltage.. | 4.2±0.025V |
| 2 | Over –discharge Protection voltage. | 2. 45±0.1V |
| 3 | Over –current detection voltage. | 0.15±0.01V |
| 4 |
Current consumption in normal operation
|
9uA Max |
Major Application:
1) MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2) Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Storage and Others
a) Long Time Storage
If the Cell is stored for a long time, the cell’s storage should be 3.6~3.9V and the cell is to be
stored in a condition as specification.
b) Others
Any matters that this specification does not cover should be conferred between the customer
and LUS.
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
LP603450 Polymer Lithium Battery 1000mah 3.7V Rechargeable Lithium Cell:
